| CPU2006 license: | 13 | Test date: | Jul-2014 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Jun-2013 |
| Tested by: | Intel Corporation | Software Availability: | Oct-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core i7-4770 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.90 GHz |
| CPU MHz: | 3400 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 8 GB (2 x 4 GB 2Rx4 PC3-12800U-11) |
| Disk Subsystem: | 1 TB Seagate SATA HDD, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows 8.1 Pro 6.3.9600 N/A Build 9600 |
| Compiler: | C/C++: Version 14.0.1.139 of Intel C++ Studio XE for Windows; Fortran: Version 14.0.1.139 of Intel Fortran Studio XE for Windows; Libraries: Version 16.00.30319.01 of Microsoft Visual Studio 2010 Professional SP1 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap Library Version 10.0 from http://www.microquill.com/ |

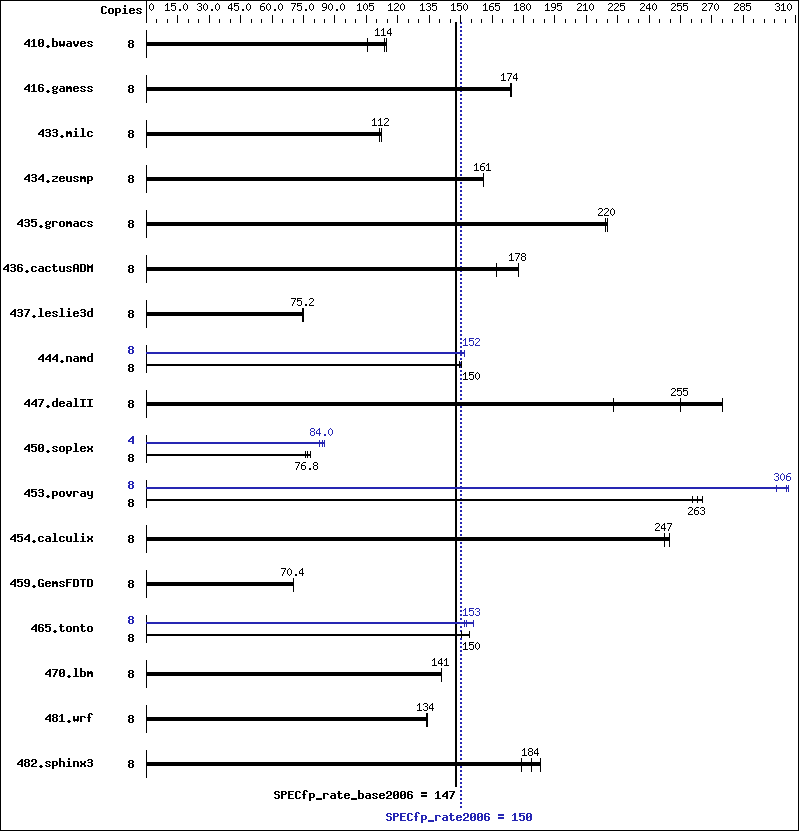

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 8 | 1032 | 106 | 955 | 114 | 951 | 114 | 8 | 1032 | 106 | 955 | 114 | 951 | 114 |
| 416.gamess | 8 | 901 | 174 | 897 | 174 | 901 | 174 | 8 | 901 | 174 | 897 | 174 | 901 | 174 |
| 433.milc | 8 | 658 | 112 | 659 | 111 | 658 | 112 | 8 | 658 | 112 | 659 | 111 | 658 | 112 |
| 434.zeusmp | 8 | 453 | 161 | 452 | 161 | 454 | 161 | 8 | 453 | 161 | 452 | 161 | 454 | 161 |
| 435.gromacs | 8 | 260 | 220 | 261 | 219 | 260 | 220 | 8 | 260 | 220 | 261 | 219 | 260 | 220 |
| 436.cactusADM | 8 | 573 | 167 | 539 | 178 | 539 | 178 | 8 | 573 | 167 | 539 | 178 | 539 | 178 |
| 437.leslie3d | 8 | 1007 | 74.4 | 1002 | 75.2 | 1002 | 75.2 | 8 | 1007 | 74.4 | 1002 | 75.2 | 1002 | 75.2 |
| 444.namd | 8 | 428 | 150 | 427 | 150 | 429 | 150 | 8 | 421 | 152 | 421 | 152 | 422 | 152 |
| 447.dealII | 8 | 359 | 255 | 333 | 275 | 410 | 223 | 8 | 359 | 255 | 333 | 275 | 410 | 223 |
| 450.soplex | 8 | 869 | 76.8 | 848 | 78.4 | 879 | 76.0 | 4 | 403 | 82.8 | 392 | 85.2 | 397 | 84.0 |
| 453.povray | 8 | 162 | 263 | 160 | 266 | 163 | 261 | 8 | 139 | 306 | 142 | 301 | 139 | 306 |
| 454.calculix | 8 | 265 | 250 | 267 | 247 | 267 | 247 | 8 | 265 | 250 | 267 | 247 | 267 | 247 |
| 459.GemsFDTD | 8 | 1200 | 70.4 | 1199 | 70.4 | 1203 | 70.4 | 8 | 1200 | 70.4 | 1199 | 70.4 | 1203 | 70.4 |
| 465.tonto | 8 | 524 | 150 | 511 | 154 | 523 | 150 | 8 | 517 | 152 | 515 | 153 | 505 | 156 |
| 470.lbm | 8 | 780 | 141 | 780 | 141 | 780 | 141 | 8 | 780 | 141 | 780 | 141 | 780 | 141 |
| 481.wrf | 8 | 667 | 134 | 667 | 134 | 670 | 134 | 8 | 667 | 134 | 667 | 134 | 670 | 134 |
| 482.sphinx3 | 8 | 847 | 184 | 830 | 188 | 870 | 179 | 8 | 847 | 184 | 830 | 188 | 870 | 179 |
Compiler Invocation Notes
To compile these binaries, the Intel Compiler 14.0 was set up to generate 64-bit binaries with the command: "ipsxe-comp-vars.bat intel64 vs2010" (shortcut provided in the Intel(r) Parallel Studio XE 2013 program folder)
Submit Notes
Processes were bound to specific processors using the start command with the /affinity switch. The config file option 'submit' was used to generate the affinity mask for each process.
Platform Notes
Sysinfo program C:\SPEC14.0/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on Clt7C05070D8262 Sat Jul 26 10:58:06 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 8.1 Pro OS Version : 6.3.9600 N/A Build 9600 System Manufacturer: INTEL_ System Model : DH87MC__ Processor(s) : 1 Processor(s) Installed. [01]: Intel64 Family 6 Model 60 Stepping 3 GenuineIntel ~3401 Mhz BIOS Version : Intel Corp. MCH8710H.86A.0047.2013.0606.1508, 6/6/2013 Total Physical Memory: 7,862 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 1024 L3CacheSize : 8192 MaxClockSpeed : 3401 Name : Intel(R) Core(TM) i7-4770 CPU @ 3.40GHz NumberOfCores : 4 NumberOfLogicalProcessors: 8 (End of data from sysinfo program)
Component Notes
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply
General Notes
Binaries compiled on a system with 1x Intel Core i7-860 CPU + 8GB memory using Windows 7 Enterprise 64-bit
Base Compiler Invocation
C benchmarks:
| icl -Qvc10 -Qstd=c99 |
C++ benchmarks:
| icl -Qvc10 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc10 -Qstd=c99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -DSPEC_CPU_P64 |
| 436.cactusADM: | -DSPEC_CPU_P64 /names:lowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -DSPEC_CPU_P64 -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -Qoption,cpp,--ms_incompat_treatment_of_commas_in_macros |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_NEED_INVHYP -DNEED_INVHYP |
| 454.calculix: | -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER /names:lowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F1000000000 -link /FORCE:MULTIPLE |
C++ benchmarks:
| -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qcxx-features -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F1000000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F1000000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc10 -Qstd=c99 |
C++ benchmarks:
| icl -Qvc10 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc10 -Qstd=c99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 447.dealII: | basepeak = yes |
| 450.soplex: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 453.povray: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | basepeak = yes |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto /F1000000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | basepeak = yes |
