CPU2006 license: | 55 | Test date: | Aug-2014 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Sep-2014 |
Tested by: | Dell Inc. | Software Availability: | Sep-2014 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2670 v3 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.10 GHz |
CPU MHz: | 2300 |
FPU: | Integrated |
CPU(s) enabled: | 24 cores, 2 chips, 12 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 30 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 256 GB (16 x 16 GB 2Rx4 PC4-2133P-R) |
Disk Subsystem: | 1 x 300 GB 15000 RPM SAS |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64) 3.0.76-0.11-default |
Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V10.0 |

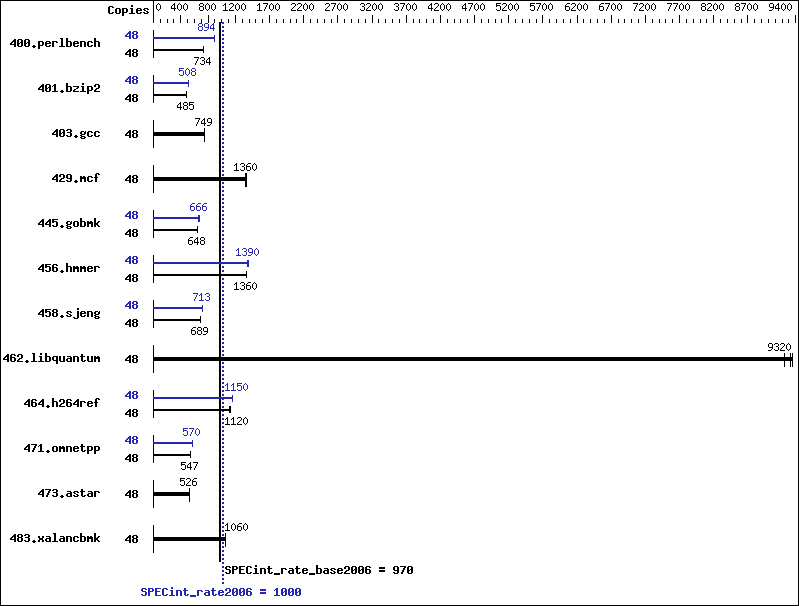

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 48 | 639 | 734 | 640 | 732 | 638 | 735 | 48 | 523 | 897 | 526 | 892 | 525 | 894 |
401.bzip2 | 48 | 953 | 486 | 959 | 483 | 954 | 485 | 48 | 913 | 507 | 912 | 508 | 912 | 508 |
403.gcc | 48 | 515 | 750 | 517 | 748 | 516 | 749 | 48 | 515 | 750 | 517 | 748 | 516 | 749 |
429.mcf | 48 | 322 | 1360 | 324 | 1350 | 321 | 1360 | 48 | 322 | 1360 | 324 | 1350 | 321 | 1360 |
445.gobmk | 48 | 776 | 649 | 777 | 648 | 777 | 648 | 48 | 755 | 667 | 756 | 666 | 756 | 666 |
456.hmmer | 48 | 328 | 1360 | 330 | 1360 | 330 | 1360 | 48 | 324 | 1380 | 323 | 1390 | 322 | 1390 |
458.sjeng | 48 | 843 | 689 | 841 | 690 | 843 | 689 | 48 | 815 | 713 | 814 | 714 | 815 | 713 |
462.libquantum | 48 | 108 | 9230 | 106 | 9350 | 107 | 9320 | 48 | 108 | 9230 | 106 | 9350 | 107 | 9320 |
464.h264ref | 48 | 950 | 1120 | 950 | 1120 | 946 | 1120 | 48 | 918 | 1160 | 923 | 1150 | 924 | 1150 |
471.omnetpp | 48 | 554 | 542 | 548 | 547 | 548 | 548 | 48 | 526 | 570 | 526 | 570 | 523 | 573 |
473.astar | 48 | 640 | 526 | 639 | 528 | 642 | 524 | 48 | 640 | 526 | 639 | 528 | 642 | 524 |
483.xalancbmk | 48 | 313 | 1060 | 314 | 1050 | 313 | 1060 | 48 | 313 | 1060 | 314 | 1050 | 313 | 1060 |
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Stack size set to unlimited using "ulimit -s unlimited"
BIOS settings: Snoop Mode set to Cluster on Die Virtualization Technology disabled Execute Disable disabled System Profile set to Performance Sysinfo program /root/cpu2006-1.2/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on linux-fm7q Fri Aug 29 13:09:18 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2670 v3 @ 2.30GHz 2 "physical id"s (chips) 48 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 12 siblings : 24 physical 0: cores 0 1 2 3 4 5 8 9 10 11 12 13 physical 1: cores 0 1 2 3 4 5 8 9 10 11 12 13 cache size : 15360 KB From /proc/meminfo MemTotal: 264440548 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 11 (x86_64) From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 11 (x86_64) VERSION = 11 PATCHLEVEL = 3 uname -a: Linux linux-fm7q 3.0.76-0.11-default #1 SMP Fri Jun 14 08:21:43 UTC 2013 (ccab990) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Aug 29 13:03 last=S SPEC is set to: /root/cpu2006-1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/sda2 ext3 228G 11G 216G 5% / Additional information from dmidecode: BIOS Dell Inc. 1.0.4 08/28/2014 Memory: 4x 00AD00B300AD HMA42GR7MFR4N-TFTD 16 GB 2133 MHz 6x 00AD063200AD HMA42GR7MFR4N-TFT1 16 GB 2133 MHz 6x 00CE00B300CE M393A2G40DB0-CPB 16 GB 2133 MHz 8x Not Specified Not Specified (End of data from sysinfo program)
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/root/cpu2006-1.2/libs/32:/root/cpu2006-1.2/libs/64:/root/cpu2006-1.2/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
icc -m32 | |
400.perlbench: | icc -m64 |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
icpc -m32 |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
403.gcc: | basepeak = yes |
429.mcf: | basepeak = yes |
445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
456.hmmer: | -xCORE-AVX2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
