| CPU2006 license: | 19 | Test date: | Jun-2014 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Jul-2014 |
| Tested by: | Fujitsu | Software Availability: | Nov-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Pentium G3420 |
| CPU Characteristics: | |
| CPU MHz: | 3200 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 3 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 32 GB (4 x 8 GB 2Rx8 PC3L-12800E-11, ECC) |
| Disk Subsystem: | 1 x SATA, 500 GB, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.5 (Santiago) 2.6.32-431.el6.x86_64 |
| Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux; Fortran: Version 14.0.0.080 of Intel Fortran Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 5 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

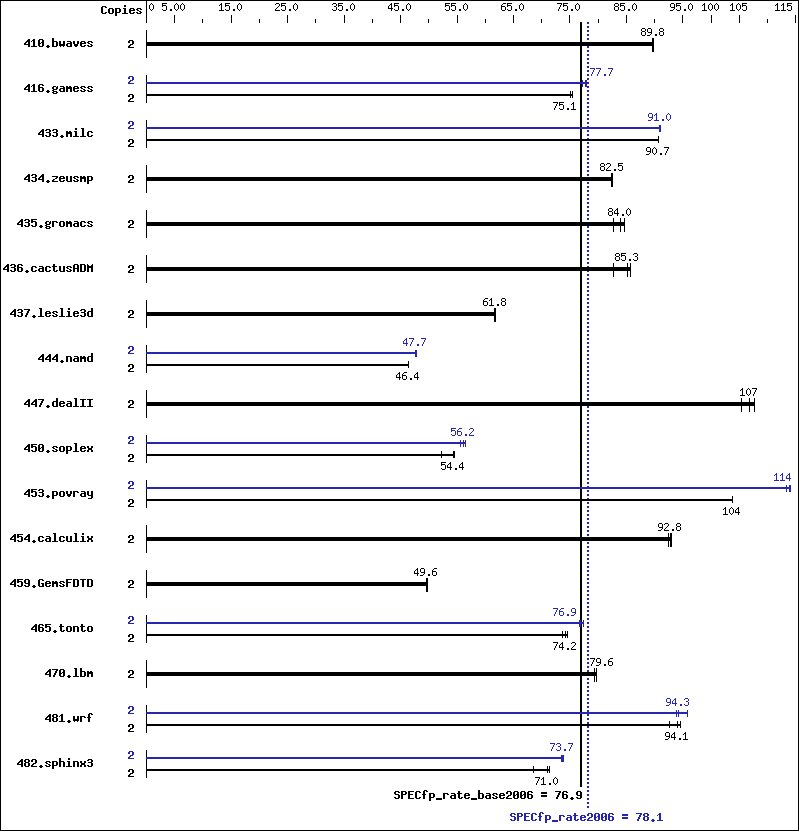

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 2 | 303 | 89.8 | 303 | 89.7 | 303 | 89.8 | 2 | 303 | 89.8 | 303 | 89.7 | 303 | 89.8 |
| 416.gamess | 2 | 519 | 75.4 | 521 | 75.1 | 522 | 75.1 | 2 | 503 | 77.9 | 507 | 77.2 | 504 | 77.7 |
| 433.milc | 2 | 202 | 90.7 | 202 | 90.7 | 202 | 90.8 | 2 | 202 | 90.9 | 202 | 91.0 | 202 | 91.0 |
| 434.zeusmp | 2 | 221 | 82.4 | 220 | 82.5 | 221 | 82.5 | 2 | 221 | 82.4 | 220 | 82.5 | 221 | 82.5 |
| 435.gromacs | 2 | 173 | 82.7 | 169 | 84.7 | 170 | 84.0 | 2 | 173 | 82.7 | 169 | 84.7 | 170 | 84.0 |
| 436.cactusADM | 2 | 280 | 85.3 | 289 | 82.7 | 279 | 85.8 | 2 | 280 | 85.3 | 289 | 82.7 | 279 | 85.8 |
| 437.leslie3d | 2 | 304 | 61.8 | 304 | 61.9 | 305 | 61.7 | 2 | 304 | 61.8 | 304 | 61.9 | 305 | 61.7 |
| 444.namd | 2 | 346 | 46.4 | 346 | 46.4 | 346 | 46.4 | 2 | 336 | 47.7 | 336 | 47.7 | 336 | 47.7 |
| 447.dealII | 2 | 217 | 105 | 212 | 108 | 214 | 107 | 2 | 217 | 105 | 212 | 108 | 214 | 107 |
| 450.soplex | 2 | 307 | 54.4 | 306 | 54.5 | 319 | 52.3 | 2 | 297 | 56.2 | 300 | 55.7 | 295 | 56.5 |
| 453.povray | 2 | 102 | 104 | 103 | 104 | 102 | 104 | 2 | 93.2 | 114 | 93.9 | 113 | 93.4 | 114 |
| 454.calculix | 2 | 178 | 92.9 | 178 | 92.8 | 179 | 92.4 | 2 | 178 | 92.9 | 178 | 92.8 | 179 | 92.4 |
| 459.GemsFDTD | 2 | 427 | 49.7 | 428 | 49.6 | 428 | 49.6 | 2 | 427 | 49.7 | 428 | 49.6 | 428 | 49.6 |
| 465.tonto | 2 | 264 | 74.6 | 265 | 74.2 | 267 | 73.6 | 2 | 254 | 77.4 | 256 | 76.9 | 256 | 76.8 |
| 470.lbm | 2 | 345 | 79.7 | 345 | 79.6 | 346 | 79.4 | 2 | 345 | 79.7 | 345 | 79.6 | 346 | 79.4 |
| 481.wrf | 2 | 236 | 94.6 | 241 | 92.6 | 237 | 94.1 | 2 | 237 | 94.3 | 238 | 93.9 | 233 | 95.8 |
| 482.sphinx3 | 2 | 546 | 71.4 | 569 | 68.5 | 549 | 71.0 | 2 | 527 | 73.9 | 529 | 73.7 | 530 | 73.5 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/SPECcpu2006/libs/32:/SPECcpu2006/libs/64:/SPECcpu2006/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc> For information about Fujitsu please visit: http://www.fujitsu.com
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
Fortran benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch |
Benchmarks using both Fortran and C:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 482.sphinx3: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m64 | |
| 450.soplex: | icpc -m32 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-mem-layout-trans=3 -unroll2 |
C++ benchmarks:
| 444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
| 453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | -xSSE4.2 -ipo -O3 -no-prec-div -auto-ilp32 |
