| CPU2006 license: | 13 | Test date: | Sep-2014 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Jun-2014 |
| Tested by: | Intel Corporation | Software Availability: | Oct-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core i3-4020Y |
| CPU Characteristics: | |
| CPU MHz: | 1500 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 3 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 4 GB (4 x 1 GB 2Rx32 PC3L-12800U-11) |
| Disk Subsystem: | 64 GB SSD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows 8.1 Pro 6.3.9600 N/A Build 9600 |
| Compiler: | C/C++: Version 14.0.1.139 of Intel C++ Studio XE for Windows; Libraries: Version 16.00.30319.01 of Microsoft Visual Studio 2010 Professional SP1 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap Library Version 10.0 from http://www.microquill.com/ |

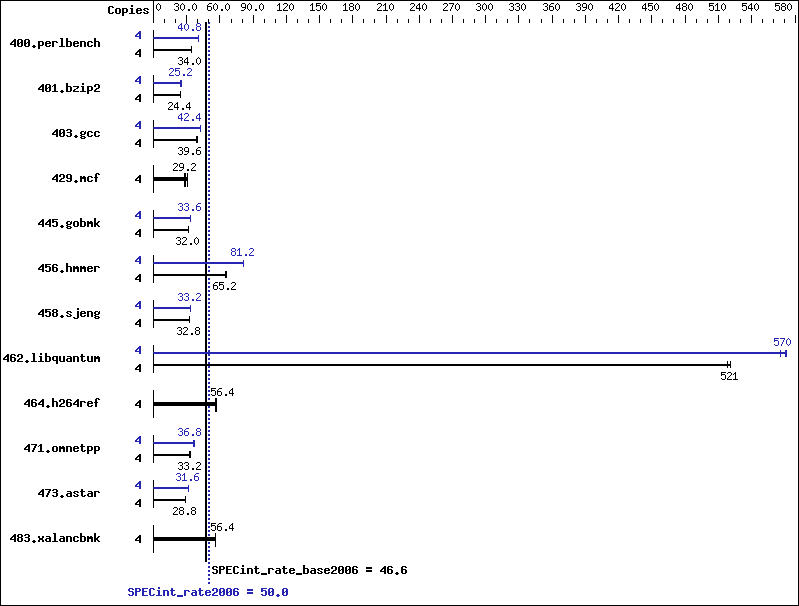

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 1147 | 34.0 | 1148 | 34.0 | 1146 | 34.0 | 4 | 957 | 40.8 | 958 | 40.8 | 958 | 40.8 |
| 401.bzip2 | 4 | 1581 | 24.4 | 1577 | 24.4 | 1577 | 24.4 | 4 | 1554 | 24.8 | 1541 | 25.2 | 1540 | 25.2 |
| 403.gcc | 4 | 806 | 40.0 | 821 | 39.2 | 811 | 39.6 | 4 | 759 | 42.4 | 768 | 42.0 | 760 | 42.4 |
| 429.mcf | 4 | 1307 | 28.0 | 1206 | 30.4 | 1245 | 29.2 | 4 | 1307 | 28.0 | 1206 | 30.4 | 1245 | 29.2 |
| 445.gobmk | 4 | 1319 | 32.0 | 1319 | 32.0 | 1326 | 31.6 | 4 | 1248 | 33.6 | 1245 | 33.6 | 1250 | 33.6 |
| 456.hmmer | 4 | 571 | 65.2 | 575 | 64.8 | 570 | 65.6 | 4 | 460 | 81.2 | 458 | 81.6 | 460 | 81.2 |
| 458.sjeng | 4 | 1472 | 32.8 | 1486 | 32.4 | 1484 | 32.8 | 4 | 1463 | 33.2 | 1461 | 33.2 | 1462 | 33.2 |
| 462.libquantum | 4 | 159 | 521 | 160 | 519 | 159 | 521 | 4 | 145 | 571 | 146 | 566 | 145 | 570 |
| 464.h264ref | 4 | 1571 | 56.4 | 1565 | 56.4 | 1562 | 56.8 | 4 | 1571 | 56.4 | 1565 | 56.4 | 1562 | 56.8 |
| 471.omnetpp | 4 | 752 | 33.2 | 761 | 32.8 | 756 | 33.2 | 4 | 682 | 36.8 | 682 | 36.8 | 698 | 36.0 |
| 473.astar | 4 | 975 | 28.8 | 980 | 28.8 | 975 | 28.8 | 4 | 887 | 31.6 | 888 | 31.6 | 884 | 31.6 |
| 483.xalancbmk | 4 | 491 | 56.4 | 489 | 56.4 | 488 | 56.4 | 4 | 491 | 56.4 | 489 | 56.4 | 488 | 56.4 |
Compiler Invocation Notes
To compile these binaries, the Intel Compiler 14.0 was set up to generate 32-bit binaries with the command: "ipsxe-comp-vars.bat ia32 vs2010" (shortcut provided in the Intel(r) Parallel Studio XE 2013 program folder)
Submit Notes
Processes were bound to specific processors using the start command with the /affinity switch. The config file option 'submit' was used to generate the affinity mask for each process.
Platform Notes
Sysinfo program C:\Users\peca\Desktop\SPEC14.0\SPEC14.0/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on peca_i3 Thu Sep 11 15:01:15 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 8.1 Pro OS Version : 6.3.9600 N/A Build 9600 System Manufacturer: Microsoft Corporation System Model : Surface Pro 3 Processor(s) : 1 Processor(s) Installed. [01]: Intel64 Family 6 Model 69 Stepping 1 GenuineIntel ~1500 Mhz BIOS Version : American Megatrends Inc. 3.10.0250, 8/28/2014 Total Physical Memory: 4,001 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 512 L3CacheSize : 3072 MaxClockSpeed : 1501 Name : Intel(R) Core(TM) i3-4020Y CPU @ 1.50GHz NumberOfCores : 2 NumberOfLogicalProcessors: 4 (End of data from sysinfo program)
Component Notes
Test ran with power supply connected Power Supply: 12V, 2.58A
General Notes
Binaries compiled on a system with 1x Intel Core i7-860 CPU + 8GB memory using Windows 7 Enterprise 64-bit
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DWIN32 -DSPEC_CPU_NO_INTTYPES |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qopt-mem-layout-trans:3 /F512000000 |
C++ benchmarks:
| -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features -Qopt-mem-layout-trans:3 /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks (except as noted below):
| icl -Qvc10 | |
| 473.astar: | C:\Program Files (x86)\Intel\Composer XE 2013 SP1/bin/intel64/icl.exe |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 456.hmmer: | -DSPEC_CPU_P64 |
| 458.sjeng: | -DSPEC_CPU_P64 |
| 462.libquantum: | -DSPEC_CPU_P64 |
| 464.h264ref: | -DWIN32 -DSPEC_CPU_NO_INTTYPES |
| 473.astar: | -DSPEC_CPU_P64 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block -Qopt-mem-layout-trans:3 /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qauto-ilp32 -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qopt-mem-layout-trans:3 /F512000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | basepeak = yes |
