SPEC® CFP2006 Result

Hewlett-Packard Company

HP Integrity Superdome X
(120 core, 2.80 GHz, Intel Xeon E7-2890 v2)

SPECfp®_rate2006 = 3470

SPECfp_rate_base2006 = 3390

CPU2006 license:	3	Test date:	Sep-2014
Test sponsor:	Hewlett-Packard Company	Hardware Availability:	Dec-2014
Tested by:	Hewlett-Packard Company	Software Availability:	Jul-2014

Hardware
CPU Name:	Intel Xeon E7-2890 v2
CPU Characteristics:	Intel Turbo Boost Technology up to 3.40 GHz
CPU MHz:	2800
FPU:	Integrated
CPU(s) enabled:	120 cores, 8 chips, 15 cores/chip, 2 threads/core
CPU(s) orderable:	8,16 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	37.5 MB I+D on chip per chip
Other Cache:	None
Memory:	2 TB (64 x 32 GB 4Rx4 PC3-14900L-13, ECC, running at 1333 MHz)
Disk Subsystem:	8 x C8S59A, 900 GB 10K RPM SAS
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 11 (x86_64) SP3 Kernel 3.0.101-0.30-bigsmp
Compiler:	C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux; Fortran: Version 14.0.0.080 of Intel Fortran Studio XE for Linux
Auto Parallel:	No
File System:	tmpfs
System State:	Run level 3 (multi-user)
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	None

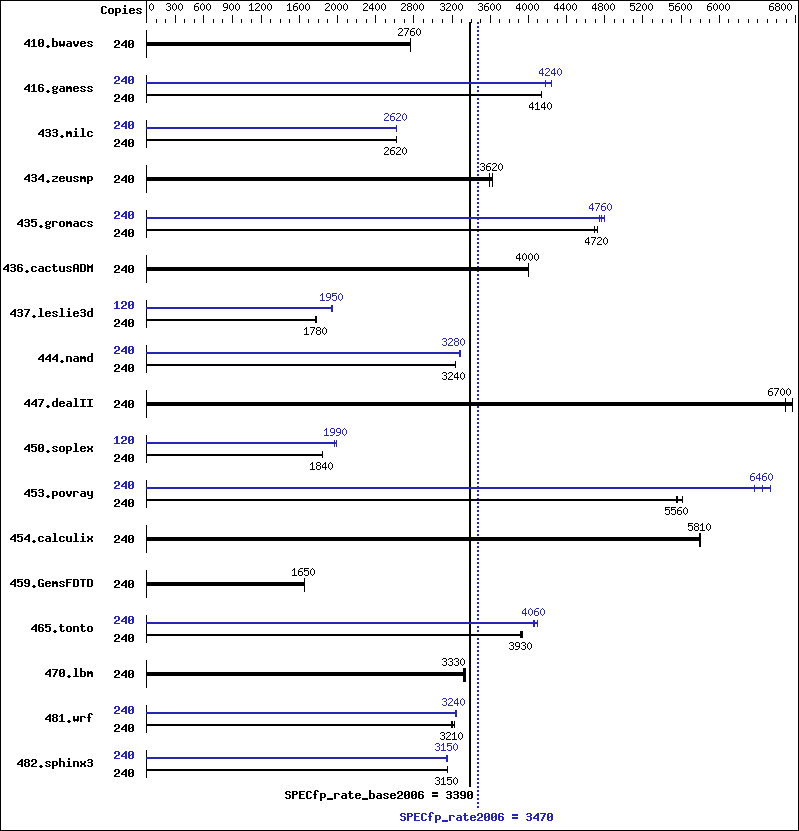

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	240	1180	2760	1180	2760	1182	2760	240	1180	2760	1180	2760	1182	2760
416.gamess	240	1136	4140	1134	4140	1135	4140	240	1107	4250	1108	4240	1124	4180
433.milc	240	843	2610	842	2620	842	2620	240	842	2620	841	2620	842	2620
434.zeusmp	240	602	3630	603	3620	608	3590	240	602	3630	603	3620	608	3590
435.gromacs	240	363	4720	363	4720	365	4690	240	361	4740	357	4800	360	4760
436.cactusADM	240	718	4000	716	4010	717	4000	240	718	4000	716	4010	717	4000
437.leslie3d	240	1274	1770	1269	1780	1268	1780	120	578	1950	578	1950	582	1940
444.namd	240	595	3240	594	3240	595	3240	240	586	3290	587	3280	587	3280
447.dealII	240	406	6770	410	6700	410	6690	240	406	6770	410	6700	410	6690
450.soplex	240	1087	1840	1085	1840	1086	1840	120	504	1990	504	1990	508	1970
453.povray	240	227	5610	230	5550	230	5560	240	200	6370	198	6460	195	6540
454.calculix	240	342	5790	341	5810	341	5810	240	342	5790	341	5810	341	5810
459.GemsFDTD	240	1540	1650	1541	1650	1542	1650	240	1540	1650	1541	1650	1542	1650
465.tonto	240	600	3940	602	3920	601	3930	240	577	4090	583	4050	581	4060
470.lbm	240	991	3330	992	3320	988	3340	240	991	3330	992	3320	988	3340
481.wrf	240	836	3210	838	3200	831	3230	240	827	3240	827	3240	826	3250
482.sphinx3	240	1485	3150	1486	3150	1486	3150	240	1485	3150	1486	3150	1490	3140

Submit Notes

 The numactl mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"
 intel_idle.max_cstate=1 appended in kernel command line
 Power profile set with:
  cpupower -c all frequency-set -g performance
 Benchmark installed under /dev/shm/cpu2006 and mount with:
  mount -o bind /dev/shm/cpu2006 /cpu2006
 Transparent Huge Pages enabled with:
  echo always > /sys/kernel/mm/transparent_hugepage/enabled
 Filesystem page cache cleared with:
  echo 1 >       /proc/sys/vm/drop_caches
 runspec command invoked through numactl i.e.:
  numactl --interleave=all runspec <etc>

Platform Notes

  Firmware settings:
   Memory RAS Configuration set to Maximum Performance
 Sysinfo program /cpu2006/config/sysinfo.rev6818
 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191
 running on hawk036os1 Fri Sep 19 19:20:35 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E7-2890 v2 @ 2.80GHz
       8 "physical id"s (chips)
       240 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 15
       siblings  : 30
       physical 0: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14
       physical 1: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14
       physical 2: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14
       physical 3: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14
       physical 4: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14
       physical 5: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14
       physical 6: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14
       physical 7: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14
    cache size : 38400 KB

 From /proc/meminfo
    MemTotal:       2117767180 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    SUSE Linux Enterprise Server 11 (x86_64)

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 11 (x86_64)
       VERSION = 11
       PATCHLEVEL = 3

 uname -a:
    Linux hawk036os1 3.0.101-0.30-bigsmp #1 SMP Fri May 23 16:16:00 UTC 2014
    (bd1c1f5) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Sep 18 19:20 last=S

 SPEC is set to: /cpu2006
    Filesystem     Type   Size  Used Avail Use% Mounted on
    tmpfs          tmpfs 1010G  4.6G 1006G   1% /dev/shm

 Additional information from dmidecode:
   BIOS HP Bundle: 005.050.012 SFW: 014.010.000 05/07/2014
   Memory:
    64x HP HMT84GL7AMR4C-RD 32 GB 1867 MHz
    128x not defined not defined

 (End of data from sysinfo program)
Regarding the sysinfo display about the memory installed, the correct amount of
memory is 2 TB. Also, sysinfo gathered the wrong information from dmidecode about
speed of the DIMMs. The reported 1867 MHz value is the maximum DIMM speed, but
the configured speed is really 1333 MHz. The dmidecode description should have
one line reading as:
	64x HP HMT84GL7AMR4C-RD 32 GB 1333 MHz

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/cpu2006/libs/32:/cpu2006/libs/64:/cpu2006/sh"

 Binaries compiled on a system with 1x Core i7-860 CPU + 8GB
 memory using RedHat EL 6.4

Base Compiler Invocation

C benchmarks:

icc -m64

C++ benchmarks:

icpc -m64

Fortran benchmarks:

ifort -m64

Benchmarks using both Fortran and C:

icc -m64 ifort -m64

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks (except as noted below):

	icc -m64
482.sphinx3:	icc -m32

C++ benchmarks (except as noted below):

	icpc -m64
450.soplex:	icpc -m32

Fortran benchmarks:

ifort -m64

Benchmarks using both Fortran and C:

icc -m64 ifort -m64

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:	-xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -auto-ilp32
470.lbm:	basepeak = yes
482.sphinx3:	-xAVX -ipo -O3 -no-prec-div -opt-mem-layout-trans=3 -unroll2

C++ benchmarks:

444.namd:	-xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32
447.dealII:	basepeak = yes
450.soplex:	-xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -opt-malloc-options=3
453.povray:	-xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	-xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep-
434.zeusmp:	basepeak = yes
437.leslie3d:	-xAVX -ipo -O3 -no-prec-div -opt-prefetch
459.GemsFDTD:	basepeak = yes
465.tonto:	-xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3

Benchmarks using both Fortran and C:

435.gromacs:	-xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32
436.cactusADM:	basepeak = yes
454.calculix:	basepeak = yes
481.wrf:	-xAVX -ipo -O3 -no-prec-div -auto-ilp32

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-linux64-revC.html,
http://www.spec.org/cpu2006/flags/HP-Platform-Flags-Intel-V1.2-Integrity-revA.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-linux64-revC.xml,
http://www.spec.org/cpu2006/flags/HP-Platform-Flags-Intel-V1.2-Integrity-revA.xml.
