CPU2006 license: | 9006 | Test date: | Jun-2015 |
---|---|---|---|
Test sponsor: | NEC Corporation | Hardware Availability: | Jul-2015 |
Tested by: | NEC Corporation | Software Availability: | Mar-2015 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E7-4809 v3 |
CPU Characteristics: | |
CPU MHz: | 2000 |
FPU: | Integrated |
CPU(s) enabled: | 32 cores, 4 chips, 8 cores/chip, 2 threads/core |
CPU(s) orderable: | 2,3,4 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 20 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 1 TB (64 x 16 GB 2Rx4 PC4-2133P-R, running at 1333 MHz) |
Disk Subsystem: | 3 x 300 GB SAS, 15000 RPM, RAID 0 |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.6 (Santiago) Kernel 2.6.32-504.12.2.el6.x86_64 |
Compiler: | C/C++: Version 14.0.3.174 of Intel C++ Studio XE for Linux |
Auto Parallel: | No |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap Multi-Core V10.01 |

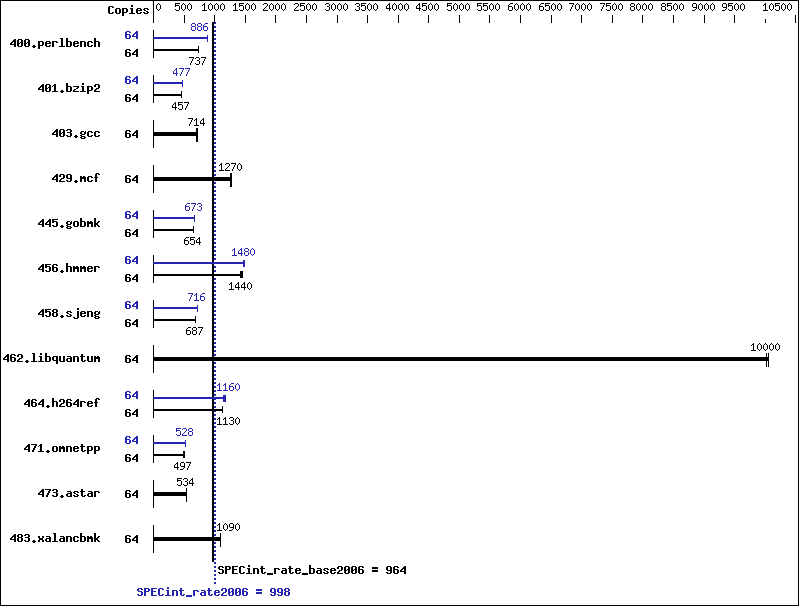

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 64 | 848 | 737 | 848 | 737 | 846 | 739 | 64 | 705 | 886 | 710 | 881 | 706 | 886 |
401.bzip2 | 64 | 1350 | 457 | 1351 | 457 | 1347 | 458 | 64 | 1296 | 477 | 1295 | 477 | 1296 | 477 |
403.gcc | 64 | 719 | 717 | 725 | 711 | 722 | 714 | 64 | 719 | 717 | 725 | 711 | 722 | 714 |
429.mcf | 64 | 459 | 1270 | 459 | 1270 | 461 | 1270 | 64 | 459 | 1270 | 459 | 1270 | 461 | 1270 |
445.gobmk | 64 | 1027 | 654 | 1027 | 653 | 1027 | 654 | 64 | 998 | 673 | 998 | 673 | 997 | 673 |
456.hmmer | 64 | 418 | 1430 | 413 | 1450 | 416 | 1440 | 64 | 403 | 1480 | 404 | 1480 | 404 | 1480 |
458.sjeng | 64 | 1127 | 687 | 1128 | 686 | 1128 | 687 | 64 | 1082 | 716 | 1082 | 716 | 1080 | 717 |
462.libquantum | 64 | 132 | 10000 | 132 | 10100 | 132 | 10000 | 64 | 132 | 10000 | 132 | 10100 | 132 | 10000 |
464.h264ref | 64 | 1264 | 1120 | 1255 | 1130 | 1254 | 1130 | 64 | 1232 | 1150 | 1195 | 1190 | 1225 | 1160 |
471.omnetpp | 64 | 802 | 499 | 808 | 495 | 805 | 497 | 64 | 757 | 528 | 758 | 528 | 758 | 528 |
473.astar | 64 | 843 | 533 | 838 | 536 | 841 | 534 | 64 | 843 | 533 | 838 | 536 | 841 | 534 |
483.xalancbmk | 64 | 406 | 1090 | 405 | 1090 | 405 | 1090 | 64 | 406 | 1090 | 405 | 1090 | 405 | 1090 |
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Stack size set to unlimited using "ulimit -s unlimited" Zone reclaim mode enabled with: echo 1 > /proc/sys/vm/zone_reclaim_mode
BIOS Settings: Memory RAS Mode: Independent VT-x : Disabled Processor C6 Report : Disabled OS Performance Tuning : Disabled Energy Performance : Performance Patrol Scrub : Disabled Demand Scrub : Disabled Memory P.E. Retry : Disabled
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/opt/SmartHeap_10mc/lib:/opt/SmartHeap_10mc/lib64:/opt/intel/composer_xe_2013_sp1.3.174/compiler/lib/ia32:/opt/intel/composer_xe_2013_sp1.3.174/compiler/lib/intel64" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1 > /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/opt/SmartHeap_10mc/lib -lsmartheap |
icc -m32 | |
400.perlbench: | icc -m64 |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
icpc -m32 |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
403.gcc: | basepeak = yes |
429.mcf: | basepeak = yes |
445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
456.hmmer: | -xCORE-AVX2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_10mc/lib -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
