SPEC® CINT2006 Result

Copyright 2006-2015 Standard Performance Evaluation Corporation

Cisco Systems

Cisco UCS B420 M4 (Intel Xeon E5-4655 v3, 2.90
GHz)

SPECint®2006 = 61.6

CPU2006 license: 9019 Test date: Jul-2015
Test sponsor: Cisco Systems Hardware Availability: Jun-2015
Tested by: Cisco Systems Software Availability: Nov-2014

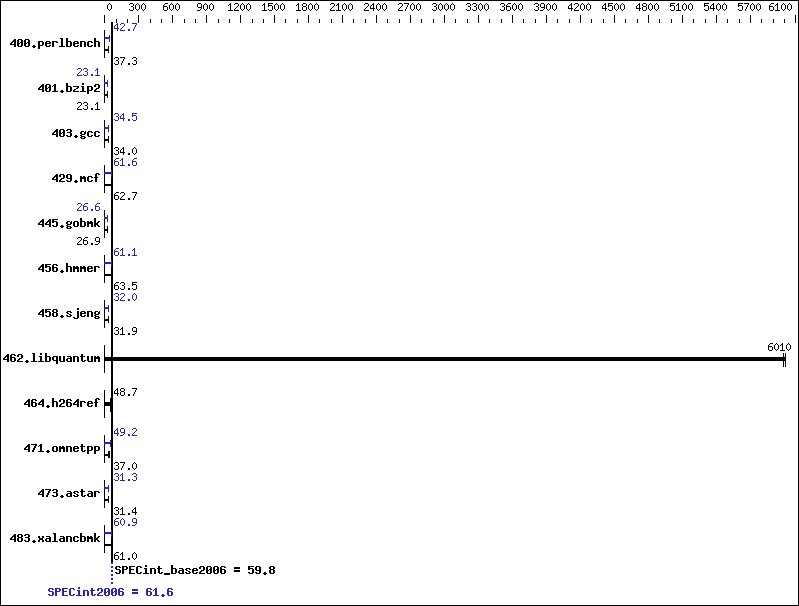

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-4655 v3
CPU Characteristics: Intel Turbo Boost Technology up to 3.20 GHz
CPU MHz: 2900
FPU: Integrated
CPU(s) enabled: 24 cores, 4 chips, 6 cores/chip
CPU(s) orderable: 2,4 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 30 MB I+D on chip per chip
Other Cache: None
Memory: 512 GB (32 x 16 GB 2Rx4 PC4-2133P-R)
Disk Subsystem: 1 x 300 GB SAS, 15K RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 12 (x86_64)
3.12.28-4-default
Compiler: C/C++: Version 15.0.0.090 of Intel C++ Studio XE
for Linux
Auto Parallel: Yes
File System: xfs
System State: Run level 3 (multi-user)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V10.0

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 262    37.3 262    37.3 263    37.1 229    42.6 229    42.7 228    42.8
401.bzip2 418    23.1 416    23.2 418    23.1 417    23.1 416    23.2 417    23.1
403.gcc 236    34.1 237    33.9 237    34.0 235    34.2 233    34.6 233    34.5
429.mcf 144    63.4 149    61.2 145    62.7 148    61.6 148    61.7 150    60.8
445.gobmk 390    26.9 391    26.8 390    26.9 394    26.6 394    26.6 395    26.6
456.hmmer 147    63.5 148    63.1 147    63.6 153    61.1 153    61.2 153    61.0
458.sjeng 380    31.9 379    31.9 380    31.9 378    32.0 379    31.9 378    32.0
462.libquantum 3.45 6010   3.46 5990   3.45 6010   3.45 6010   3.46 5990   3.45 6010
464.h264ref 454    48.7 454    48.7 450    49.2 454    48.7 454    48.7 450    49.2
471.omnetpp 170    36.8 164    38.1 169    37.0 129    48.4 127    49.2 126    49.5
473.astar 221    31.7 224    31.3 224    31.4 224    31.3 225    31.2 222    31.6
483.xalancbmk 115    59.9 113    61.0 111    62.4 113    60.9 113    60.9 114    60.7

Submit Notes

The config file option 'submit' was used.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

BIOS Configuraton:
Hyper-Threading Technology set to Disabled
CPU performance set to Enterprise
Power Technology set to Energy-Efficient
Energy Performance BIAS setting set to Balanced Performance
Memory RAS configuration set to Maximum Performance
LV DDR Mode set to Performance-mode
 Sysinfo program /opt/cpu2006-1.2/config/sysinfo.rev6914
 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1
 running on linux-616o Thu Jul 23 05:40:07 2015

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-4655 v3 @ 2.90GHz
       4 "physical id"s (chips)
       24 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 6
       siblings  : 6
       physical 0: cores 1 3 5 9 11 12
       physical 1: cores 1 3 5 9 11 12
       physical 2: cores 1 3 5 9 11 12
       physical 3: cores 1 3 5 9 11 12
    cache size : 30720 KB

 From /proc/meminfo
    MemTotal:       529337924 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 12 (x86_64)
       VERSION = 12
       PATCHLEVEL = 0
       # This file is deprecated and will be removed in a future service pack or
       release.
       # Please check /etc/os-release for details about this release.
    os-release:
       NAME="SLES"
       VERSION="12"
       VERSION_ID="12"
       PRETTY_NAME="SUSE Linux Enterprise Server 12"
       ID="sles"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:12"

 uname -a:
    Linux linux-616o 3.12.28-4-default #1 SMP Thu Sep 25 17:02:34 UTC 2014
    (9879bd4) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Jul 22 23:56

 SPEC is set to: /opt/cpu2006-1.2
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sdc2      xfs   250G   11G  240G   5% /
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS Cisco Systems, Inc. B420M4.2.2.5.0.043020152304 04/30/2015
   Memory:
    32x 0xCE00 M393A2G40DB0-CPB 16 GB 2 rank 2133 MHz
    16x NO DIMM NO DIMM

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
KMP_AFFINITY = "granularity=fine,compact,1,0"
LD_LIBRARY_PATH = "/opt/cpu2006-1.2/libs/32:/opt/cpu2006-1.2/libs/64:/opt/cpu2006-1.2/sh"
OMP_NUM_THREADS = "24"

 Binaries compiled on a system with 1x Core i5-4670K CPU + 16GB
 memory using RedHat EL 7.0
 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/transparent_hugepage/enabled
 Filesystem page cache cleared with:
 echo 1>       /proc/sys/vm/drop_caches
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
471.omnetpp:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch   -auto-p32

C++ benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -Wl,-z,muldefs   -L/sh -lsmartheap64

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m64
400.perlbench:  icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32
445.gobmk:  icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32

C++ benchmarks (except as noted below):

 icpc -m32 -L/opt/intel/composer_xe_2015/lib/ia32
473.astar:  icpc -m64

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xCORE-AVX2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -opt-prefetch   -ansi-alias
401.bzip2:  -xCORE-AVX2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div   -prof-use(pass 2)   -auto-ilp32   -opt-prefetch   -ansi-alias
403.gcc:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -inline-calloc   -opt-malloc-options=3   -auto-ilp32
429.mcf:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch   -auto-p32
445.gobmk:  -xCORE-AVX2(pass 2)   -prof-gen(pass 1)   -prof-use(pass 2)   -ansi-alias
456.hmmer:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -unroll2   -auto-ilp32   -ansi-alias
458.sjeng:  -xCORE-AVX2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll4
462.libquantum:  basepeak = yes
464.h264ref:  basepeak = yes

C++ benchmarks:

471.omnetpp:  -xCORE-AVX2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -opt-ra-region-strategy=block    -ansi-alias   -Wl,-z,muldefs   -L/sh -lsmartheap
473.astar:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -Wl,-z,muldefs   -L/sh -lsmartheap64
483.xalancbmk:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch   -ansi-alias   -Wl,-z,muldefs   -L/sh -lsmartheap

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic15.0-official-linux64.html,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2-revC.20150812.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic15.0-official-linux64.xml,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2-revC.20150812.xml.
