| CPU2006 license: | 9017 | Test date: | Aug-2015 |
|---|---|---|---|
| Test sponsor: | Lenovo Group Limited | Hardware Availability: | Dec-2014 |
| Tested by: | Lenovo Group Limited | Software Availability: | Nov-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2628L v3 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.50 GHz |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 20 cores, 2 chips, 10 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 25 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (16 x 16 GB 2Rx4 PC4-2133P-R, running at 1866 MHz) |
| Disk Subsystem: | 1 x 300 GB SAS, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.5 (Santiago) 2.6.32-431.el6.x86_64 |
| Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

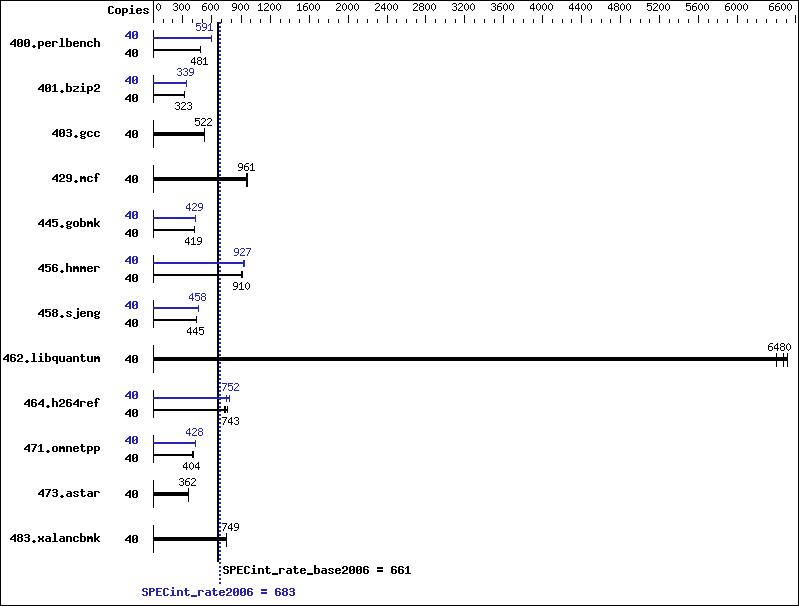

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 40 | 813 | 481 | 811 | 482 | 814 | 480 | 40 | 661 | 591 | 659 | 593 | 661 | 591 |
| 401.bzip2 | 40 | 1195 | 323 | 1193 | 323 | 1195 | 323 | 40 | 1138 | 339 | 1139 | 339 | 1137 | 339 |
| 403.gcc | 40 | 615 | 524 | 617 | 522 | 617 | 522 | 40 | 615 | 524 | 617 | 522 | 617 | 522 |
| 429.mcf | 40 | 380 | 961 | 378 | 964 | 381 | 957 | 40 | 380 | 961 | 378 | 964 | 381 | 957 |
| 445.gobmk | 40 | 1002 | 419 | 1000 | 420 | 1002 | 419 | 40 | 977 | 429 | 976 | 430 | 977 | 429 |
| 456.hmmer | 40 | 410 | 910 | 410 | 909 | 410 | 910 | 40 | 401 | 930 | 405 | 922 | 403 | 927 |
| 458.sjeng | 40 | 1087 | 445 | 1086 | 446 | 1086 | 445 | 40 | 1057 | 458 | 1057 | 458 | 1056 | 459 |
| 462.libquantum | 40 | 127 | 6520 | 129 | 6400 | 128 | 6480 | 40 | 127 | 6520 | 129 | 6400 | 128 | 6480 |
| 464.h264ref | 40 | 1169 | 757 | 1211 | 731 | 1191 | 743 | 40 | 1136 | 779 | 1177 | 752 | 1184 | 748 |
| 471.omnetpp | 40 | 618 | 404 | 622 | 402 | 615 | 407 | 40 | 584 | 428 | 584 | 428 | 585 | 428 |
| 473.astar | 40 | 772 | 364 | 775 | 362 | 775 | 362 | 40 | 772 | 364 | 775 | 362 | 775 | 362 |
| 483.xalancbmk | 40 | 368 | 750 | 369 | 749 | 368 | 749 | 40 | 368 | 750 | 369 | 749 | 368 | 749 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
Operating Mode set to Maximum Performance in BIOS Enabled COD Preference in BIOS Disable Early Snoop Preference in BIOS Sysinfo program /cpu2006.1.2_14.0_jan2014/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on newport-rhel6.5 Thu Aug 27 11:36:32 2015 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2628L v3 @ 2.00GHz 2 "physical id"s (chips) 40 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 10 siblings : 20 physical 0: cores 0 1 2 3 4 8 9 10 11 12 physical 1: cores 0 1 2 3 4 8 9 10 11 12 cache size : 12800 KB From /proc/meminfo MemTotal: 264120276 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.5 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux newport-rhel6.5 2.6.32-431.el6.x86_64 #1 SMP Sun Nov 10 22:19:54 EST 2013 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Aug 27 11:35 last=5 SPEC is set to: /cpu2006.1.2_14.0_jan2014 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/vg_newportrhel6-lv_root ext4 265G 87G 166G 35% / Additional information from dmidecode: BIOS IBM -[C4E105JUS-1.10]- 04/11/2015 Memory: 8x NO DIMM Unknown 16x Samsung M393A2G40DB0-CPB 16 GB 1867 MHz 2 rank (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/cpu2006.1.2_14.0_jan2014/libs/32:/cpu2006.1.2_14.0_jan2014/libs/64:/cpu2006.1.2_14.0_jan2014/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xCORE-AVX2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
