| CPU2006 license: | 3175 | Test date: | Nov-2015 |
|---|---|---|---|
| Test sponsor: | Huawei | Hardware Availability: | May-2015 |
| Tested by: | Huawei | Software Availability: | Oct-2014 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-8867 v3 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.30 GHz |
| CPU MHz: | 2500 |
| FPU: | Integrated |
| CPU(s) enabled: | 64 cores, 4 chips, 16 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 45 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 512 GB (32 x 16 GB 2Rx4 PC4-2133P-R, running at 1600 MHz) |
| Disk Subsystem: | 2 x 300 GB SAS, 10K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 12 (x86_64) 3.12.28-4-default |
| Compiler: | C/C++: Version 15.0.0.090 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

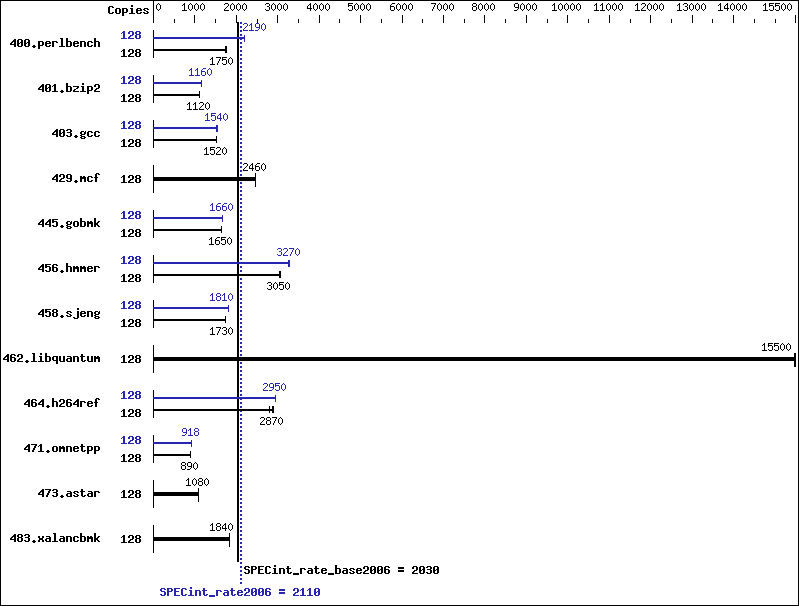

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 128 | 715 | 1750 | 709 | 1760 | 715 | 1750 | 128 | 569 | 2200 | 572 | 2190 | 572 | 2190 |
| 401.bzip2 | 128 | 1101 | 1120 | 1105 | 1120 | 1105 | 1120 | 128 | 1070 | 1150 | 1068 | 1160 | 1069 | 1160 |
| 403.gcc | 128 | 677 | 1520 | 680 | 1520 | 678 | 1520 | 128 | 670 | 1540 | 669 | 1540 | 680 | 1520 |
| 429.mcf | 128 | 475 | 2460 | 475 | 2460 | 475 | 2460 | 128 | 475 | 2460 | 475 | 2460 | 475 | 2460 |
| 445.gobmk | 128 | 814 | 1650 | 814 | 1650 | 815 | 1650 | 128 | 808 | 1660 | 811 | 1660 | 809 | 1660 |
| 456.hmmer | 128 | 391 | 3050 | 392 | 3050 | 391 | 3060 | 128 | 365 | 3270 | 365 | 3270 | 365 | 3270 |
| 458.sjeng | 128 | 894 | 1730 | 894 | 1730 | 895 | 1730 | 128 | 854 | 1810 | 854 | 1810 | 853 | 1820 |
| 462.libquantum | 128 | 171 | 15500 | 172 | 15500 | 171 | 15500 | 128 | 171 | 15500 | 172 | 15500 | 171 | 15500 |
| 464.h264ref | 128 | 976 | 2900 | 1013 | 2800 | 987 | 2870 | 128 | 960 | 2950 | 965 | 2940 | 959 | 2950 |
| 471.omnetpp | 128 | 899 | 890 | 898 | 891 | 900 | 889 | 128 | 875 | 915 | 868 | 922 | 871 | 918 |
| 473.astar | 128 | 835 | 1080 | 829 | 1080 | 835 | 1080 | 128 | 835 | 1080 | 829 | 1080 | 835 | 1080 |
| 483.xalancbmk | 128 | 481 | 1830 | 481 | 1840 | 480 | 1840 | 128 | 481 | 1830 | 481 | 1840 | 480 | 1840 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS configuration: Set Power Efficiency Mode to Performance Set Lock_step to disabled Baseboard Management Controller used to adjust the fan speed to 100% Set Memory Power Saving to disabled Sysinfo program /zsn/spec1/config/sysinfo.rev6914 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1 running on RH5885V3 Sun Nov 1 18:08:19 2015 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E7-8867 v3 @ 2.50GHz 4 "physical id"s (chips) 128 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 16 siblings : 32 physical 0: cores 0 1 2 3 4 8 9 10 11 16 17 18 20 24 25 27 physical 1: cores 0 1 2 3 4 8 9 10 11 16 17 18 20 24 25 27 physical 2: cores 0 1 2 3 4 8 9 10 11 16 17 18 20 24 25 27 physical 3: cores 0 1 2 3 4 8 9 10 11 16 17 18 20 24 25 27 cache size : 46080 KB From /proc/meminfo MemTotal: 529106988 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 12 (x86_64) VERSION = 12 PATCHLEVEL = 0 # This file is deprecated and will be removed in a future service pack or release. # Please check /etc/os-release for details about this release. os-release: NAME="SLES" VERSION="12" VERSION_ID="12" PRETTY_NAME="SUSE Linux Enterprise Server 12" ID="sles" ANSI_COLOR="0;32" CPE_NAME="cpe:/o:suse:sles:12" uname -a: Linux RH5885V3 3.12.28-4-default #1 SMP Thu Sep 25 17:02:34 UTC 2014 (9879bd4) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Nov 1 18:07 SPEC is set to: /zsn/spec1 Filesystem Type Size Used Avail Use% Mounted on /dev/sdb1 ext4 823G 174G 607G 23% /zsn Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS American Megatrends Inc. BLISQ954 09/19/2015 Memory: 32x Micron 36ASF2G72PZ-2G1A2 16 GB 2 rank 2133 MHz, configured at 1600 MHz 16x NO DIMM NO DIMM (End of data from sysinfo program) Regarding the sysinfo display about the memory installed, the correct amount of memory is 512 GB and the dmidecode description should have two lines reading as: 32x Micron 36ASF2G72PZ-2G1A2 16 GB 2 rank 2133 MHz, configured at 1600 MHz 16x NO DIMM NO DIMM
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/zsn/spec1/libs/32:/zsn/spec1/libs/64:/zsn/spec1/sh" Binaries compiled on a system with 1x Core i5-4670K CPU + 16GB memory using RedHat EL 7.0 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Compiler Invocation
C benchmarks:
| icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
C++ benchmarks:
| icpc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xCORE-AVX2 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xCORE-AVX2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
