| CPU2006 license: | 13 | Test date: | Apr-2016 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Mar-2016 |
| Tested by: | Intel Corporation | Software Availability: | Nov-2015 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core i5-6440HQ |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.50 GHz |
| CPU MHz: | 2600 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 6 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 8 GB (1 x 8 GB 2Rx4 PC4-2133P-E) |
| Disk Subsystem: | Toshiba MQ01ACF050 500GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows 10 Pro 10.0.10586 N/A Build 10586 |
| Compiler: | C/C++: Version 16.0.0.110 of Intel C++ Studio XE for Windows; Libraries: Version 18.00.30723 of Microsoft Visual Studio 2013 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap Library Version 11.0 from http://www.microquill.com/ |

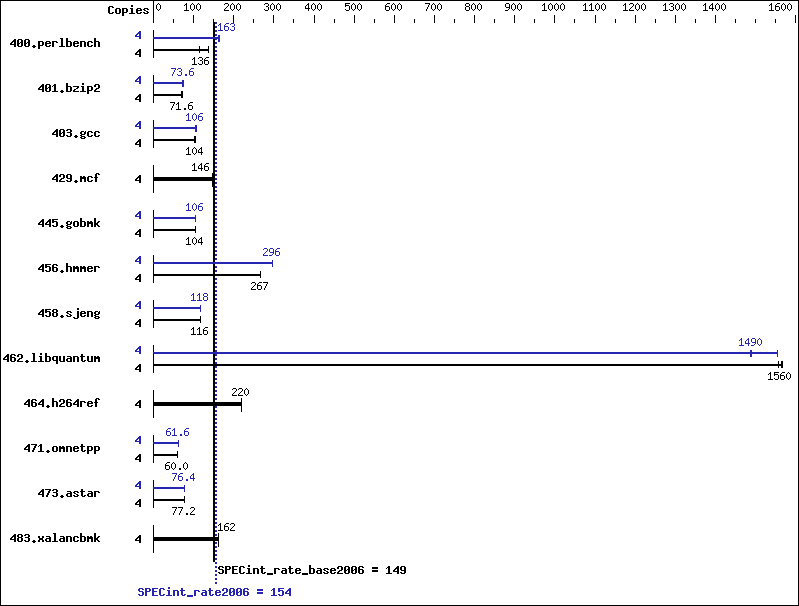

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 340 | 115 | 286 | 136 | 287 | 136 | 4 | 241 | 162 | 240 | 163 | 240 | 163 |
| 401.bzip2 | 4 | 550 | 70.0 | 538 | 72.0 | 538 | 71.6 | 4 | 526 | 73.2 | 524 | 73.6 | 523 | 74.0 |
| 403.gcc | 4 | 312 | 103 | 310 | 104 | 309 | 104 | 4 | 308 | 105 | 305 | 106 | 304 | 106 |
| 429.mcf | 4 | 248 | 147 | 249 | 146 | 249 | 146 | 4 | 248 | 147 | 249 | 146 | 249 | 146 |
| 445.gobmk | 4 | 404 | 104 | 403 | 104 | 403 | 104 | 4 | 398 | 106 | 397 | 106 | 397 | 106 |
| 456.hmmer | 4 | 140 | 266 | 140 | 267 | 140 | 268 | 4 | 126 | 296 | 126 | 296 | 126 | 296 |
| 458.sjeng | 4 | 418 | 116 | 418 | 116 | 418 | 116 | 4 | 411 | 118 | 410 | 118 | 410 | 118 |
| 462.libquantum | 4 | 52.9 | 1570 | 53.2 | 1560 | 53.0 | 1560 | 4 | 55.7 | 1490 | 53.3 | 1550 | 55.6 | 1490 |
| 464.h264ref | 4 | 402 | 220 | 402 | 220 | 402 | 220 | 4 | 402 | 220 | 402 | 220 | 402 | 220 |
| 471.omnetpp | 4 | 417 | 60.0 | 417 | 60.0 | 417 | 60.0 | 4 | 407 | 61.6 | 406 | 61.6 | 407 | 61.6 |
| 473.astar | 4 | 365 | 76.8 | 365 | 77.2 | 365 | 77.2 | 4 | 368 | 76.4 | 367 | 76.4 | 366 | 76.8 |
| 483.xalancbmk | 4 | 171 | 162 | 171 | 161 | 171 | 162 | 4 | 171 | 162 | 171 | 161 | 171 | 162 |
Compiler Invocation Notes
To compile these binaries, the Intel Compiler 16.0 was set up to generate 32-bit binaries with the command: "ipsxe-comp-vars.bat ia32 vs2010" (shortcut provided in the Intel(r) Parallel Studio XE 2016 program folder)
Platform Notes
Sysinfo program C:\SPEC16.0/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on Clt507B9DA65255 Sat Apr 30 15:17:19 2016 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 10 Pro OS Version : 10.0.10586 N/A Build 10586 System Manufacturer: LENOVO System Model : 20FW002DUS Processor(s) : 1 Processor(s) Installed. [01]: Intel64 Family 6 Model 94 Stepping 3 GenuineIntel ~2600 Mhz BIOS Version : LENOVO R07ET62W (2.02 ), 3/4/2016 Total Physical Memory: 8,058 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 1024 L3CacheSize : 6144 MaxClockSpeed : 2601 Name : Intel(R) Core(TM) i5-6440HQ CPU @ 2.60GHz NumberOfCores : 4 NumberOfLogicalProcessors: 4 (End of data from sysinfo program)
Component Notes
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply
General Notes
Binaries compiled on a system with 1x Intel Xeon E5-2699 v3 CPU + 64GB memory using Windows 8.1 Enterprise 64-bit
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F256000000 |
C++ benchmarks:
| -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features /F256000000 shlW32M.lib -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks (except as noted below):
| icl -Qvc12 | |
| 473.astar: | C:\Program Files (x86)\IntelSWTools\parallel_studio_xe_2016.0.041ompilers_and_libraries_2016\windows/bin/intel64/icl.exe |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 456.hmmer: | -DSPEC_CPU_P64 |
| 458.sjeng: | -DSPEC_CPU_P64 |
| 462.libquantum: | -DSPEC_CPU_P64 |
| 464.h264ref: | -DWIN32 |
| 473.astar: | -DSPEC_CPU_P64 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F256000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qansi-alias /F256000000 |
| 403.gcc: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch /F256000000 |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias /F256000000 |
| 456.hmmer: | -Qauto-ilp32 -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo(1) -O3(1) -Qprec-div-(1) -Qopt-prefetch(1) /F256000000 |
| 458.sjeng: | -Qauto-ilp32 -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo(1) -O3(1) -Qprec-div-(1) -Qunroll4(1) /F256000000 |
| 462.libquantum: | -Qauto-ilp32 -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F256000000 |
| 464.h264ref: | basepeak = yes |
C++ benchmarks:
| 471.omnetpp: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F256000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qauto-ilp32 -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F256000000 shlW64M.lib |
| 483.xalancbmk: | basepeak = yes |
