| CPU2006 license: | 55 | Test date: | May-2016 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Jun-2016 |
| Tested by: | Dell Inc. | Software Availability: | Mar-2016 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-4627 v4 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.20 GHz |
| CPU MHz: | 2600 |
| FPU: | Integrated |
| CPU(s) enabled: | 40 cores, 4 chips, 10 cores/chip |
| CPU(s) orderable: | 2,4 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 25 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 512 GB (32 x 16 GB 2Rx8 PC4-2400T-R) |
| Disk Subsystem: | 1 x 800 GB SATA SSD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 12 SP1 3.12.49-11-default |
| Compiler: | C/C++: Version 16.0.2.181 of Intel C++ Studio XE for Linux; Fortran: Version 16.0.2.181 of Intel Fortran Studio XE for Linux |
| Auto Parallel: | No |
| File System: | btrfs |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

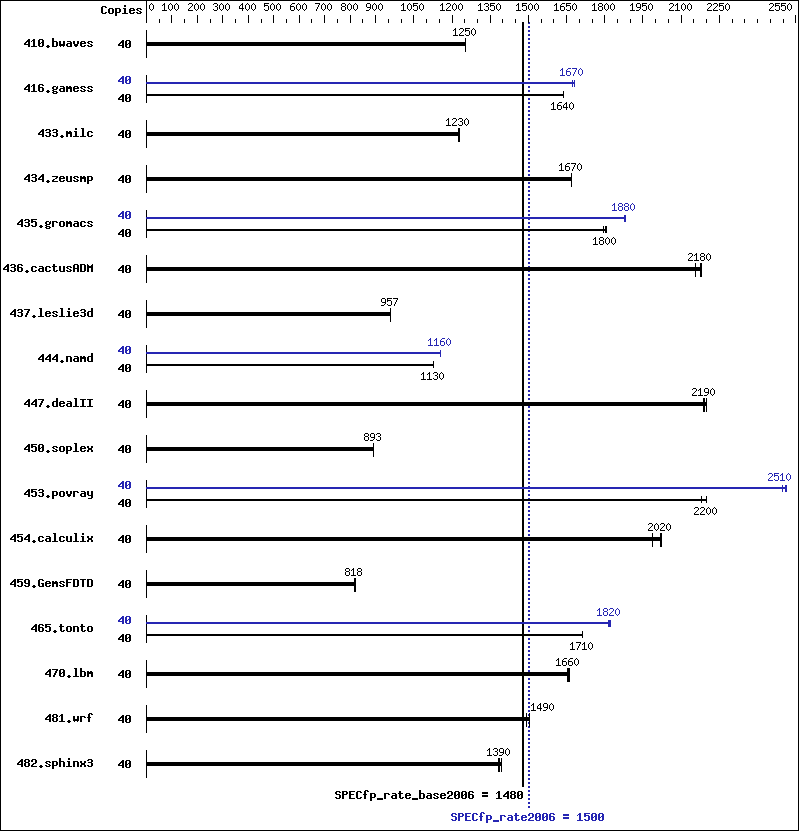

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 40 | 434 | 1250 | 434 | 1250 | 434 | 1250 | 40 | 434 | 1250 | 434 | 1250 | 434 | 1250 |
| 416.gamess | 40 | 478 | 1640 | 478 | 1640 | 479 | 1640 | 40 | 468 | 1670 | 466 | 1680 | 468 | 1670 |
| 433.milc | 40 | 300 | 1230 | 300 | 1230 | 299 | 1230 | 40 | 300 | 1230 | 300 | 1230 | 299 | 1230 |
| 434.zeusmp | 40 | 218 | 1670 | 218 | 1670 | 218 | 1670 | 40 | 218 | 1670 | 218 | 1670 | 218 | 1670 |
| 435.gromacs | 40 | 159 | 1800 | 158 | 1810 | 158 | 1800 | 40 | 152 | 1880 | 152 | 1880 | 152 | 1880 |
| 436.cactusADM | 40 | 220 | 2180 | 222 | 2160 | 219 | 2180 | 40 | 220 | 2180 | 222 | 2160 | 219 | 2180 |
| 437.leslie3d | 40 | 393 | 957 | 392 | 958 | 393 | 957 | 40 | 393 | 957 | 392 | 958 | 393 | 957 |
| 444.namd | 40 | 284 | 1130 | 284 | 1130 | 284 | 1130 | 40 | 278 | 1160 | 278 | 1160 | 278 | 1150 |
| 447.dealII | 40 | 209 | 2190 | 208 | 2200 | 209 | 2190 | 40 | 209 | 2190 | 208 | 2200 | 209 | 2190 |
| 450.soplex | 40 | 373 | 893 | 374 | 893 | 374 | 891 | 40 | 373 | 893 | 374 | 893 | 374 | 891 |
| 453.povray | 40 | 96.7 | 2200 | 96.8 | 2200 | 97.7 | 2180 | 40 | 84.8 | 2510 | 84.6 | 2510 | 85.2 | 2500 |
| 454.calculix | 40 | 166 | 1990 | 163 | 2020 | 163 | 2020 | 40 | 166 | 1990 | 163 | 2020 | 163 | 2020 |
| 459.GemsFDTD | 40 | 519 | 818 | 519 | 818 | 518 | 819 | 40 | 519 | 818 | 519 | 818 | 518 | 819 |
| 465.tonto | 40 | 230 | 1710 | 230 | 1710 | 230 | 1710 | 40 | 217 | 1820 | 216 | 1820 | 216 | 1820 |
| 470.lbm | 40 | 331 | 1660 | 332 | 1660 | 333 | 1650 | 40 | 331 | 1660 | 332 | 1660 | 333 | 1650 |
| 481.wrf | 40 | 297 | 1500 | 299 | 1490 | 299 | 1490 | 40 | 297 | 1500 | 299 | 1490 | 299 | 1490 |
| 482.sphinx3 | 40 | 564 | 1380 | 558 | 1400 | 562 | 1390 | 40 | 564 | 1380 | 558 | 1400 | 562 | 1390 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS settings: Snoop Mode set to Home Snoop Virtualization Technology disabled System Profile set to custom CPU Performance set to Hardware P States C States set to Autonomous C1E disabled Energy Efficient Turbo disabled Uncore Frequency set to Dynamic Energy Efficiency Policy set to Balanced Performance Memory Patrol Scrub disabled Sysinfo program /root/cpu2006-1.2/config/sysinfo.rev6914 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1 running on linux-t2sb Tue May 10 12:42:18 2016 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-4627 v4 @ 2.60GHz 4 "physical id"s (chips) 40 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 10 siblings : 10 physical 0: cores 0 1 2 3 4 8 9 10 11 12 physical 1: cores 0 1 2 3 4 8 9 10 11 12 physical 2: cores 0 1 2 3 4 8 9 10 11 12 physical 3: cores 0 1 2 3 4 8 9 10 11 12 cache size : 25600 KB From /proc/meminfo MemTotal: 529326752 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 12 SP1 From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 12 (x86_64) VERSION = 12 PATCHLEVEL = 1 # This file is deprecated and will be removed in a future service pack or release. # Please check /etc/os-release for details about this release. os-release: NAME="SLES" VERSION="12-SP1" VERSION_ID="12.1" PRETTY_NAME="SUSE Linux Enterprise Server 12 SP1" ID="sles" ANSI_COLOR="0;32" CPE_NAME="cpe:/o:suse:sles:12:sp1" uname -a: Linux linux-t2sb 3.12.49-11-default #1 SMP Wed Nov 11 20:52:43 UTC 2015 (8d714a0) x86_64 x86_64 x86_64 GNU/Linux run-level 3 May 10 06:40 SPEC is set to: /root/cpu2006-1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/sda3 btrfs 461G 9.5G 447G 3% / Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS Dell Inc. 1.0.0 04/26/2016 Memory: 31x 00AD063200AD HMA82GR7MFR8N-UH 16 GB 2 rank 2400 MHz 1x 00CE00B300CE M393A2K43BB1-CRC 16 GB 2 rank 2400 MHz 16x Not Specified Not Specified (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/root/cpu2006-1.2/libs/32:/root/cpu2006-1.2/libs/64:/root/cpu2006-1.2/sh" Binaries compiled on a system with 1x Intel Core i7-4790K CPU + 32GB memory using RedHat EL 7.2 glibc 2.17 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
Fortran benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch |
Benchmarks using both Fortran and C:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
Peak Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
Benchmarks using both Fortran and C:
| 435.gromacs: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | basepeak = yes |
