SPEC® CFP2006 Result

ASUSTeK Computer Inc. (Test Sponsor: Intel Corporation)

ASUS Q170M-C motherboard (Intel Celeron G3900T)

SPECfp®_rate2006 = 83.8

SPECfp_rate_base2006 = 81.5

CPU2006 license:	13	Test date:	Apr-2016
Test sponsor:	Intel Corporation	Hardware Availability:	Dec-2015
Tested by:	Intel Corporation	Software Availability:	Aug-2015

Hardware
CPU Name:	Intel Celeron G3900T
CPU Characteristics:
CPU MHz:	2600
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	2 MB I+D on chip per chip
Other Cache:	None
Memory:	8 GB (2 x 4 GB 2Rx4 PC4-2133P-U)
Disk Subsystem:	1 TB Seagate Barracuda HDD, 7200 RPM
Other Hardware:	None

Software
Operating System:	Microsoft Windows 7 Professional 6.1.7601 Service Pack 1 Build 7601
Compiler:	C/C++: Version 16.0.0.110 of Intel C++ Studio XE for Windows; Fortran: Version 16.0.0.110 of Intel Fortran Studio XE for Windows; Libraries: Version 18.00.30723 of Microsoft Visual Studio 2013
Auto Parallel:	No
File System:	NTFS
System State:	Default
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	SmartHeap Library Version 11.0 from http://www.microquill.com/

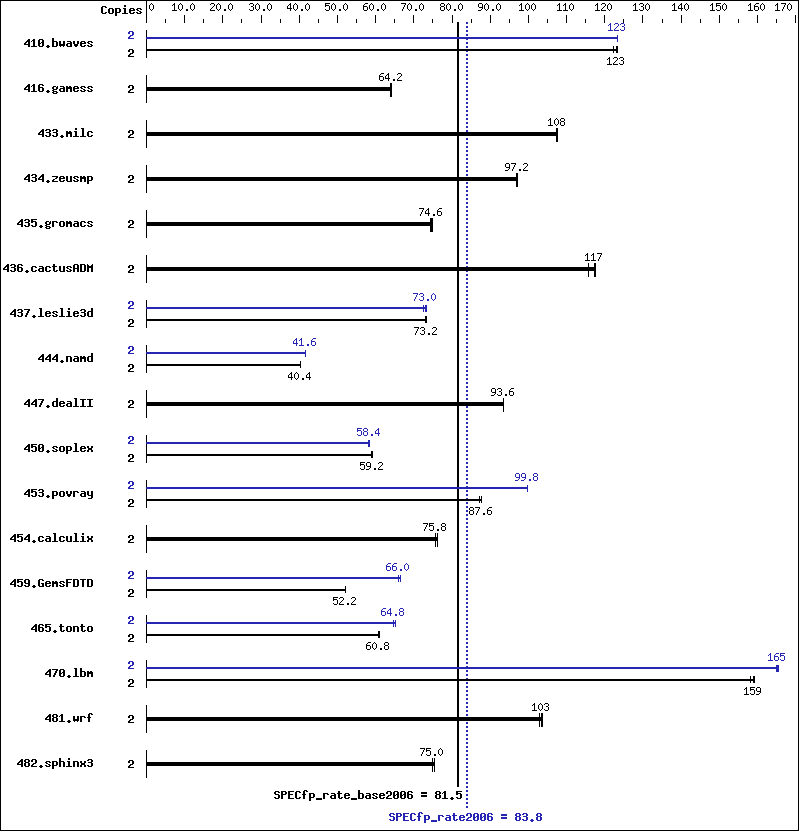

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	2	222	122	221	123	220	123	2	220	123	221	123	220	123
416.gamess	2	610	64.2	610	64.2	612	64.0	2	610	64.2	610	64.2	612	64.0
433.milc	2	171	108	171	107	171	108	2	171	108	171	107	171	108
434.zeusmp	2	187	97.2	187	97.2	188	97.0	2	187	97.2	187	97.2	188	97.0
435.gromacs	2	192	74.4	191	74.8	191	74.6	2	192	74.4	191	74.8	191	74.6
436.cactusADM	2	203	118	207	116	204	117	2	203	118	207	116	204	117
437.leslie3d	2	257	73.2	257	73.2	258	73.0	2	257	73.2	258	73.0	259	72.6
444.namd	2	396	40.4	397	40.4	396	40.4	2	385	41.6	385	41.6	385	41.6
447.dealII	2	244	93.6	244	93.6	245	93.6	2	244	93.6	244	93.6	245	93.6
450.soplex	2	282	59.2	282	59.0	282	59.2	2	286	58.4	287	58.0	286	58.4
453.povray	2	121	87.6	121	87.8	122	87.2	2	107	99.8	107	99.8	107	99.8
454.calculix	2	218	75.6	217	76.2	218	75.8	2	218	75.6	217	76.2	218	75.8
459.GemsFDTD	2	407	52.2	407	52.2	407	52.2	2	321	66.0	320	66.4	321	66.0
465.tonto	2	323	60.8	323	61.0	324	60.8	2	302	65.2	304	64.8	304	64.8
470.lbm	2	173	159	174	158	173	159	2	166	166	166	165	167	165
481.wrf	2	217	103	216	104	216	103	2	217	103	216	104	216	103
482.sphinx3	2	517	75.4	520	75.0	520	75.0	2	517	75.4	520	75.0	520	75.0

Compiler Invocation Notes

 To compile these binaries, the Intel Compiler 16.0 was set up to
 generate 64-bit binaries with the command:
 "psxevars.bat intel64" (shortcut provided in the Intel(r)
 Parallel Studio XE 2016 program folder)

Platform Notes

 Sysinfo program C:\SPEC16.0/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on CltF832E48856E2 Sun Apr 24 02:26:15 2016

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 7 Professional
 OS Version    : 6.1.7601 Service Pack 1 Build 7601
 System Manufacturer: System manufacturer
 System Model  : System Product Name
 Processor(s)  : 1 Processor(s) Installed.
      [01]: Intel64 Family 6 Model 94 Stepping 3 GenuineIntel ~2601 Mhz
 BIOS Version  : American Megatrends Inc. 0704, 1/12/2016
 Total Physical Memory: 8,070 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 512
 L3CacheSize   : 2048
 MaxClockSpeed : 2601
 Name          : Intel(R) Celeron(R) CPU G3900T @ 2.60GHz
 NumberOfCores : 2
 NumberOfLogicalProcessors: 2

 (End of data from sysinfo program)

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply

General Notes

450.soplex (peak): "getline_test" src.alt was used.

447.dealII (base): "max_prototype" src.alt was used.
447.dealII (base): "cxx11_make_pair" src.alt was used.

450.soplex (base): "getline_test" src.alt was used.

447.dealII (base): "max_prototype" src.alt was used.
447.dealII (base): "cxx11_make_pair" src.alt was used.

 Binaries compiled on a system with 1x Intel Xeon E5-2699 v3 CPU
 + 64GB memory using Windows 8.1 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

icl -Qvc12 -Qstd=c99

C++ benchmarks:

icl -Qvc12

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc12 -Qstd=c99 ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_P64
416.gamess:	-DSPEC_CPU_P64
433.milc:	-DSPEC_CPU_P64
434.zeusmp:	-DSPEC_CPU_P64
435.gromacs:	-DSPEC_CPU_P64
436.cactusADM:	-DSPEC_CPU_P64 /names:lowercase /assume:underscore
437.leslie3d:	-DSPEC_CPU_P64
444.namd:	-DSPEC_CPU_P64 /TP
447.dealII:	-DSPEC_CPU_P64 -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DSPEC_CPU_BOOST_CONFIG_MSC_VER -DSPEC_NEED_ALGORITHM
450.soplex:	-DSPEC_CPU_P64 -DSPEC_GETLINE_TEST
453.povray:	-DSPEC_CPU_P64
454.calculix:	-DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER /names:lowercase
459.GemsFDTD:	-DSPEC_CPU_P64
465.tonto:	-DSPEC_CPU_P64
470.lbm:	-DSPEC_CPU_P64
481.wrf:	-DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:	-DSPEC_CPU_P64

Base Optimization Flags

Peak Compiler Invocation

C benchmarks:

icl -Qvc12 -Qstd=c99

C++ benchmarks:

icl -Qvc12

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc12 -Qstd=c99 ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:	basepeak = yes
470.lbm:	-QxSSE4.2 -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F1000000000 -link /FORCE:MULTIPLE
482.sphinx3:	basepeak = yes

C++ benchmarks:

444.namd:	-QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE
447.dealII:	basepeak = yes
450.soplex:	-QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE
453.povray:	-QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:	-QxSSE4.2 -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F1000000000 -link /FORCE:MULTIPLE
416.gamess:	basepeak = yes
434.zeusmp:	basepeak = yes
437.leslie3d:	Same as 410.bwaves
459.GemsFDTD:	Same as 410.bwaves
465.tonto:	-QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto /F1000000000 -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:	basepeak = yes
436.cactusADM:	basepeak = yes
454.calculix:	basepeak = yes
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-windows.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-windows.xml.
