CPU2006 license: | 13 | Test date: | Mar-2016 |
---|---|---|---|
Test sponsor: | Intel Corporation | Hardware Availability: | Sep-2015 |
Tested by: | Intel Corporation | Software Availability: | Aug-2015 |
Hardware | |
---|---|
CPU Name: | Intel Pentium G4400 |
CPU Characteristics: | |
CPU MHz: | 3300 |
FPU: | Integrated |
CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
CPU(s) orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 3 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 8 GB (2 x 4 GB 2Rx4 PC4-2133P-U) |
Disk Subsystem: | 1 TB Seagate Barracuda HDD, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Microsoft Windows 7 Professional 6.1.7601 Service Pack 1 Build 7601 |
Compiler: | C/C++: Version 16.0.0.110 of Intel C++ Studio XE for Windows; Libraries: Version 18.00.30723 of Microsoft Visual Studio 2013 |
Auto Parallel: | Yes |
File System: | NTFS |
System State: | Default |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | SmartHeap Library Version 11.0 from http://www.microquill.com/ |

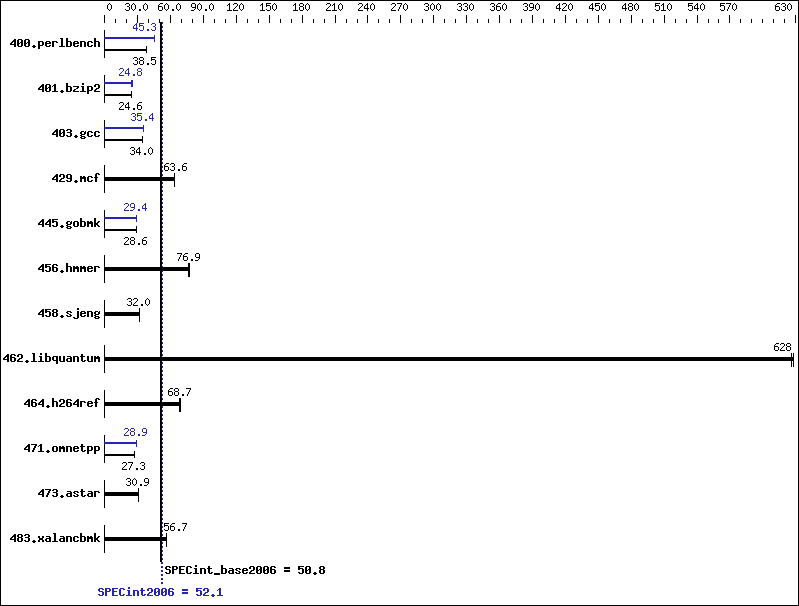

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 254 | 38.5 | 254 | 38.5 | 254 | 38.5 | 216 | 45.3 | 216 | 45.3 | 216 | 45.3 |
401.bzip2 | 393 | 24.5 | 393 | 24.6 | 393 | 24.6 | 389 | 24.8 | 388 | 24.9 | 389 | 24.8 |
403.gcc | 237 | 34.0 | 237 | 34.0 | 236 | 34.1 | 227 | 35.4 | 227 | 35.4 | 227 | 35.4 |
429.mcf | 143 | 63.6 | 143 | 63.6 | 144 | 63.5 | 143 | 63.6 | 143 | 63.6 | 144 | 63.5 |
445.gobmk | 367 | 28.6 | 367 | 28.6 | 367 | 28.6 | 357 | 29.4 | 357 | 29.4 | 357 | 29.4 |
456.hmmer | 121 | 76.9 | 122 | 76.8 | 121 | 76.9 | 121 | 76.9 | 122 | 76.8 | 121 | 76.9 |
458.sjeng | 378 | 32.0 | 378 | 32.0 | 378 | 32.0 | 378 | 32.0 | 378 | 32.0 | 378 | 32.0 |
462.libquantum | 33.0 | 628 | 33.1 | 626 | 33.0 | 628 | 33.0 | 628 | 33.1 | 626 | 33.0 | 628 |
464.h264ref | 322 | 68.7 | 323 | 68.6 | 322 | 68.7 | 322 | 68.7 | 323 | 68.6 | 322 | 68.7 |
471.omnetpp | 229 | 27.3 | 229 | 27.3 | 229 | 27.3 | 216 | 28.9 | 216 | 28.9 | 216 | 29.0 |
473.astar | 227 | 30.9 | 227 | 30.9 | 227 | 30.9 | 227 | 30.9 | 227 | 30.9 | 227 | 30.9 |
483.xalancbmk | 122 | 56.7 | 122 | 56.7 | 122 | 56.6 | 122 | 56.7 | 122 | 56.7 | 122 | 56.6 |
To compile these binaries, the Intel Compiler 16.0 was set up to generate 64-bit binaries with the command: "psxevars.bat intel64" (shortcut provided in the Intel(r) Parallel Studio XE 2016 program folder)
Sysinfo program C:\SPEC16.0/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on CltF832E48859C5 Mon Mar 7 22:13:15 2016 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 7 Professional OS Version : 6.1.7601 Service Pack 1 Build 7601 System Manufacturer: System manufacturer System Model : System Product Name Processor(s) : 1 Processor(s) Installed. [01]: Intel64 Family 6 Model 94 Stepping 3 GenuineIntel ~3300 Mhz BIOS Version : American Megatrends Inc. 0704, 1/12/2016 Total Physical Memory: 8,074 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 512 L3CacheSize : 3072 MaxClockSpeed : 3300 Name : Intel(R) Pentium(R) CPU G4400 @ 3.30GHz NumberOfCores : 2 NumberOfLogicalProcessors: 2 (End of data from sysinfo program)
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply
OMP_NUM_THREADS set to number of processors cores KMP_AFFINITY set to granularity=fine,scatter Binaries compiled on a system with 1x Intel Xeon E5-2699 v3 CPU + 64GB memory using Windows 8.1 Enterprise 64-bit
400.perlbench: | -DSPEC_CPU_P64 -DSPEC_CPU_WIN64_X64 |
401.bzip2: | -DSPEC_CPU_P64 |
403.gcc: | -DSPEC_CPU_P64 -DSPEC_CPU_WIN64 |
429.mcf: | -DSPEC_CPU_P64 |
445.gobmk: | -DSPEC_CPU_P64 |
456.hmmer: | -DSPEC_CPU_P64 |
458.sjeng: | -DSPEC_CPU_P64 |
462.libquantum: | -DSPEC_CPU_P64 |
464.h264ref: | -DSPEC_CPU_P64 -DWIN32 |
471.omnetpp: | -DSPEC_CPU_P64 -DSPEC_CPU_WIN64 |
473.astar: | -DSPEC_CPU_P64 |
483.xalancbmk: | -DSPEC_CPU_P64 -Qoption,cpp,--no_wchar_t_keyword -DWIN64 |
-QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel -Qauto-ilp32 /F64000000 |
-QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features -Qauto-ilp32 /F64000000 shlW64M.lib -link /FORCE:MULTIPLE |
Same as Base Portability Flags
400.perlbench: | -QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F64000000 shlW64M.lib /F256000000 -link /FORCE:MULTIPLE |
401.bzip2: | -QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qansi-alias -Qauto-ilp32 /F64000000 |
403.gcc: | -QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qauto-ilp32 /F64000000 |
429.mcf: | basepeak = yes |
445.gobmk: | -QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias -Qauto-ilp32 /F64000000 |
456.hmmer: | basepeak = yes |
458.sjeng: | basepeak = yes |
462.libquantum: | basepeak = yes |
464.h264ref: | basepeak = yes |
471.omnetpp: | -QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block -Qauto-ilp32 /F64000000 shlW64M.lib -link /FORCE:MULTIPLE |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
