SPEC® CINT2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

SGI (Test Sponsor: Japan Advanced Institute of Science and Technology)

SGI UV 3000 (Intel Xeon E5-4655 v3, 2.90 GHz)

SPECint®_rate2006 = Not Run

CPU2006 license: 4 Test date: Aug-2016
Test sponsor: Japan Advanced Institute of Science and Technology Hardware Availability: Sep-2015
Tested by: SGI Software Availability: May-2016

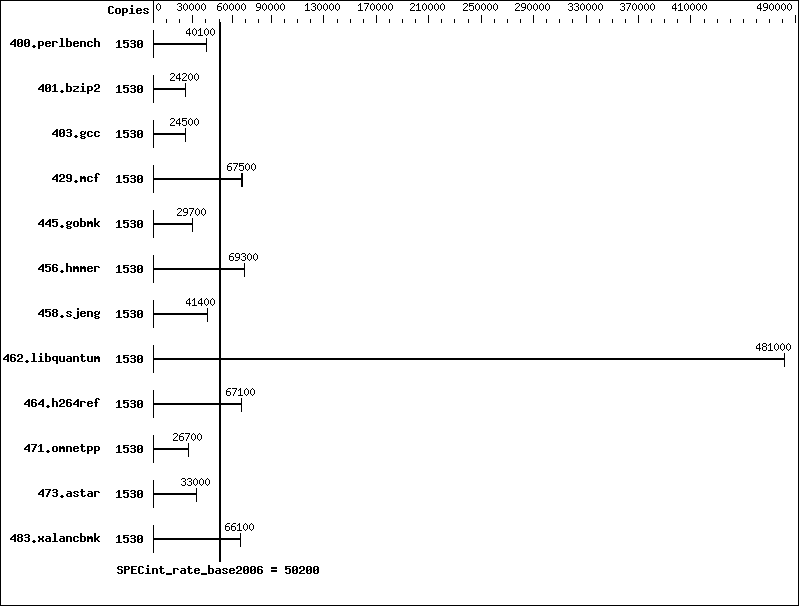

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-4655 v3
CPU Characteristics: Intel Turbo Boost Technology up to 3.20 GHz
CPU MHz: 2900
FPU: Integrated
CPU(s) enabled: 1536 cores, 256 chips, 6 cores/chip
CPU(s) orderable: 4-256 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 30 MB I+D on chip per chip
Other Cache: None
Memory: 32 TB (2048 x 16 GB 2Rx4 PC4-2133P-R)
Disk Subsystem: 32640 GB tmpfs
Other Hardware: NUMAlink6 routers
Software
Operating System: SUSE Linux Enterprise Server 12 (x86_64) SP1,
Kernel 3.12.48-52.27-default
Compiler: C/C++: Version 16.0.2.181 of Intel C++ Studio XE
for Linux
Auto Parallel: No
File System: tmpfs
System State: Run level 3 (multi-user)
Base Pointers: 32/64-bit
Peak Pointers: Not Applicable
Other Software: Microquill SmartHeap V10.2

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 1530 372   40200 372   40100 373   40100
401.bzip2 1530 609   24200 610   24200 609   24200
403.gcc 1530 503   24500 503   24500 506   24300
429.mcf 1530 207   67300 206   67700 207   67500
445.gobmk 1530 540   29700 541   29700 541   29700
456.hmmer 1530 206   69300 206   69300 206   69300
458.sjeng 1530 447   41400 447   41400 449   41300
462.libquantum 1530 65.9 481000 65.9 481000 65.9 481000
464.h264ref 1530 504   67100 504   67100 504   67200
471.omnetpp 1530 358   26700 359   26700 359   26700
473.astar 1530 326   33000 326   32900 325   33000
483.xalancbmk 1530 160   66100 159   66200 160   66100

Submit Notes

 The dplace mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate dplace commands to bind each copy to a specific processor.
 Benchmark copies were launched in a staggered fashion to minimize kernel contention
 associated with synchronized launches.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

 The tmpfs filesystem was set up with:
   mkdir -p /mnt/shm/cpu2006-sgi-ic16
   mount -t tmpfs -o rw,size=32640g,mpol=bind:1-255 tmpfs /mnt/shm/cpu2006-sgi-ic16

Platform Notes

Intel Hyperthreading set to Disabled
The dmidecode output is in error - There were 2048 memory DIMMs running at 2133.

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/mnt/shm/cpu2006-sgi-ic16/libs/32:/mnt/shm/cpu2006-sgi-ic16/libs/64:/mnt/shm/cpu2006-sgi-ic16/sh"

 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/transparent_hugepage/enabled
 Filesystem page cache cleared with:
 echo 1 > /proc/sys/vm/drop_caches

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
471.omnetpp:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -auto-p32   -opt-prefetch   -opt-mem-layout-trans=3

C++ benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -auto-p32   -opt-prefetch   -opt-mem-layout-trans=3   -Wl,-z,muldefs   -L/root/draddatz/cpu2006-sgi-ic16/sh -lsmartheap64

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/SGI-UV3000-Platform-Flags.20160906.html,
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/SGI-UV3000-Platform-Flags.20160906.xml,
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.xml.
