SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

Gigabyte Technology Co., Ltd. (Test Sponsor: Intel Corporation)

GigaByte GA-X99-Designare EX motherboard (Intel
Core i7-6950X)

CPU2006 license: 13 Test date: Jun-2016
Test sponsor: Intel Corporation Hardware Availability: May-2016
Tested by: Intel Corporation Software Availability: Nov-2015

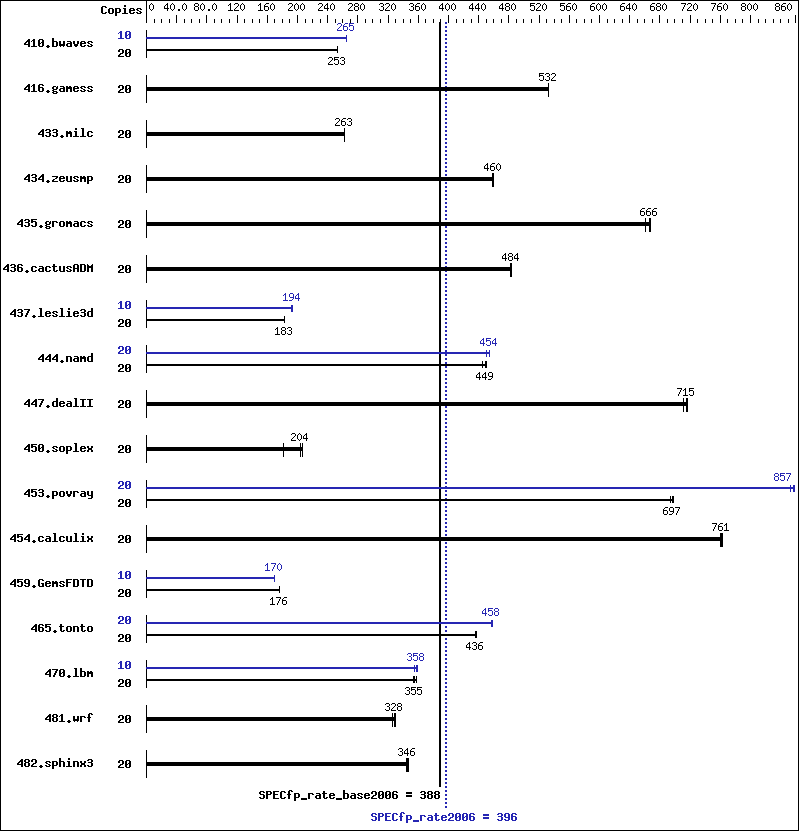

Benchmark results graph
Hardware
CPU Name: Intel Core i7-6950X
CPU Characteristics: Intel Turbo Boost Technology up to 3.50 GHz
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 10 cores, 1 chip, 10 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 25 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (4 x 8 GB 2Rx4 PC4-2133R-U)
Disk Subsystem: 1 TB Seagate SATA HDD, 7200 RPM
Other Hardware: None
Software
Operating System: Microsoft Windows 10 Pro
10.0.10586 N/A Build 10586
Compiler: C/C++: Version 16.0.0.110 of Intel C++ Studio XE
for Windows;
Fortran: Version 16.0.0.110 of Intel Fortran
Studio XE for Windows;
Libraries: Version 18.00.30723 of Microsoft
Visual Studio 2013
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 11.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 20 1072 253 1073 253 1073 253 10 513 265 513 265 513 265
416.gamess 20 736 532 735 533 736 532 20 736 532 735 533 736 532
433.milc 20 700 262 699 263 699 263 20 700 262 699 263 699 263
434.zeusmp 20 396 460 397 459 396 460 20 396 460 397 459 396 460
435.gromacs 20 216 661 214 667 214 666 20 216 661 214 667 214 666
436.cactusADM 20 495 483 494 484 494 484 20 495 483 494 484 494 484
437.leslie3d 20 1028 183 1025 183 1027 183 10 489 192 485 194 485 194
444.namd 20 360 445 356 451 357 449 20 356 451 353 455 353 454
447.dealII 20 319 717 320 715 322 711 20 319 717 320 715 322 711
450.soplex 20 922 181 809 206 816 204 20 922 181 809 206 816 204
453.povray 20 152 698 153 694 153 697 20 125 853 124 857 124 859
454.calculix 20 217 761 216 763 217 760 20 217 761 216 763 217 760
459.GemsFDTD 20 1203 176 1206 176 1208 176 10 627 169 624 170 626 170
465.tonto 20 452 436 451 437 451 436 20 431 457 430 458 430 458
470.lbm 20 775 355 769 358 776 354 10 387 355 384 358 382 360
481.wrf 20 677 330 685 326 681 328 20 677 330 685 326 681 328
482.sphinx3 20 1128 346 1122 347 1133 344 20 1128 346 1122 347 1133 344

Compiler Invocation Notes

 To compile these binaries, the Intel Compiler 16.0 was set up to
 generate 64-bit binaries with the command:
 "psxevars.bat intel64" (shortcut provided in the Intel(r)
 Parallel Studio XE 2016 program folder)

Submit Notes


 Processes were bound to specific processors using the start command with the /affinity switch.
 The config file option 'submit' was used to generate the affinity mask for each process.

Platform Notes

 Sysinfo program C:\SPEC16.0/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on Clt1C1B0D05C2E5 Sun Jun 19 00:13:30 2016

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 10 Pro
 OS Version    : 10.0.10586 N/A Build 10586
 System Manufacturer: Gigabyte Technology Co., Ltd.
 System Model  : Default string
 Processor(s)  : 1 Processor(s) Installed.
      [01]: Intel64 Family 6 Model 79 Stepping 1 GenuineIntel ~3001 Mhz
 BIOS Version  : American Megatrends Inc. F2, 5/22/2016
 Total Physical Memory: 32,606 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 2560
 L3CacheSize   : 25600
 MaxClockSpeed : 3001
 Name          : Intel(R) Core(TM) i7-6950X CPU @ 3.00GHz
 NumberOfCores : 10
 NumberOfLogicalProcessors: 20

 (End of data from sysinfo program)

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply

General Notes

450.soplex (base): "getline_test" src.alt was used.

447.dealII (base): "max_prototype" src.alt was used.
447.dealII (base): "cxx11_make_pair" src.alt was used.

450.soplex (base): "getline_test" src.alt was used.

447.dealII (base): "max_prototype" src.alt was used.
447.dealII (base): "cxx11_make_pair" src.alt was used.

 Binaries compiled on a system with 1x Intel Xeon E5-2699 v3 CPU
 + 64GB memory using Windows 8.1 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

 icl -Qvc12   -Qstd=c99

C++ benchmarks:

 icl -Qvc12

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc12   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   /names:lowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DSPEC_CPU_BOOST_CONFIG_MSC_VER   -DSPEC_NEED_ALGORITHM
450.soplex:  -DSPEC_CPU_P64   -DSPEC_GETLINE_TEST
453.povray:  -DSPEC_CPU_P64
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   /names:lowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -QxCORE-AVX2   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -QxCORE-AVX2   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   -Qcxx-features   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxCORE-AVX2   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -QxCORE-AVX2   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl -Qvc12   -Qstd=c99

C++ benchmarks:

 icl -Qvc12

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc12   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -QxCORE-AVX2   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -QxCORE-AVX2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -QxCORE-AVX2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -QxCORE-AVX2   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
416.gamess:  basepeak = yes
434.zeusmp:  basepeak = yes
437.leslie3d:  Same as 410.bwaves
459.GemsFDTD:  Same as 410.bwaves
465.tonto:  -QxCORE-AVX2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-windows.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-windows.xml.
