| CPU2006 license: | 9019 | Test date: | Dec-2016 |
|---|---|---|---|
| Test sponsor: | Cisco Systems | Hardware Availability: | Apr-2016 |
| Tested by: | Cisco Systems | Software Availability: | Dec-2015 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2630L v4 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.90 GHz |
| CPU MHz: | 1800 |
| FPU: | Integrated |
| CPU(s) enabled: | 20 cores, 2 chips, 10 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 25 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (16 x 16 GB 2Rx4 PC4-2400T-R, running at 2133 MHz) |
| Disk Subsystem: | 1 x 1.2 TB SAS HDD, 10K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 12 SP1 (x86_64) 3.12.49-11-default |
| Compiler: | C/C++: Version 16.0.0.101 of Intel C++ Studio XE for Linux; Fortran: Version 16.0.0.101 of Intel Fortran Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | xfs |
| System State: | Run level 5 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

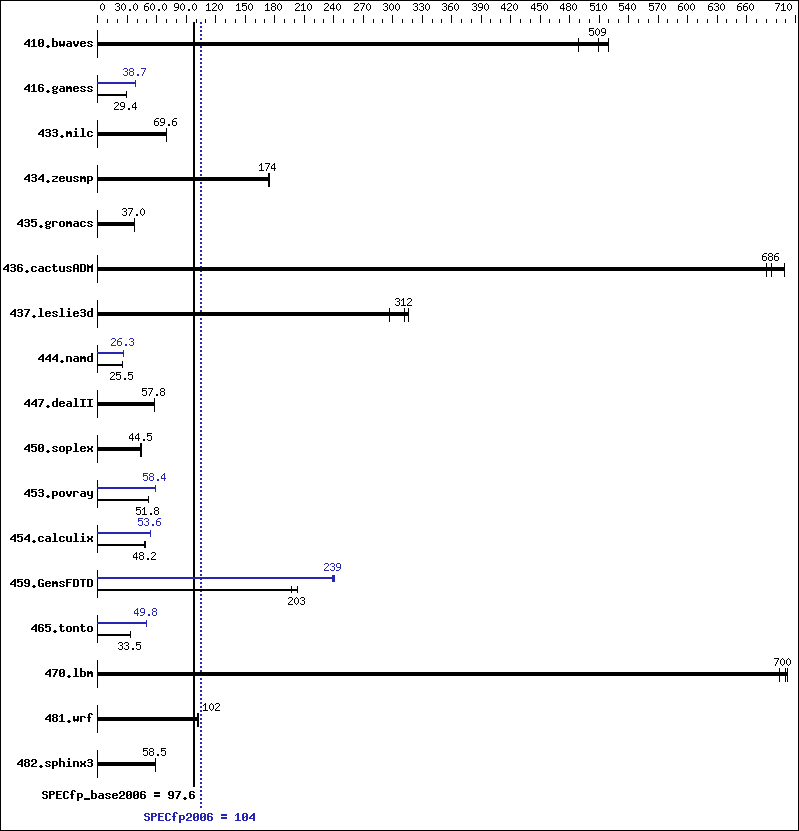

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 26.7 | 509 | 26.2 | 519 | 27.8 | 489 | 26.7 | 509 | 26.2 | 519 | 27.8 | 489 |
| 416.gamess | 667 | 29.3 | 666 | 29.4 | 666 | 29.4 | 506 | 38.7 | 506 | 38.7 | 506 | 38.7 |
| 433.milc | 132 | 69.6 | 132 | 69.6 | 132 | 69.7 | 132 | 69.6 | 132 | 69.6 | 132 | 69.7 |
| 434.zeusmp | 52.5 | 173 | 52.2 | 174 | 52.4 | 174 | 52.5 | 173 | 52.2 | 174 | 52.4 | 174 |
| 435.gromacs | 193 | 37.0 | 193 | 37.0 | 193 | 37.0 | 193 | 37.0 | 193 | 37.0 | 193 | 37.0 |
| 436.cactusADM | 17.1 | 698 | 17.4 | 686 | 17.6 | 680 | 17.1 | 698 | 17.4 | 686 | 17.6 | 680 |
| 437.leslie3d | 29.8 | 316 | 31.7 | 297 | 30.2 | 312 | 29.8 | 316 | 31.7 | 297 | 30.2 | 312 |
| 444.namd | 315 | 25.5 | 314 | 25.5 | 315 | 25.5 | 305 | 26.3 | 305 | 26.3 | 306 | 26.2 |
| 447.dealII | 198 | 57.8 | 198 | 57.7 | 198 | 57.8 | 198 | 57.8 | 198 | 57.7 | 198 | 57.8 |
| 450.soplex | 188 | 44.5 | 188 | 44.5 | 190 | 43.8 | 188 | 44.5 | 188 | 44.5 | 190 | 43.8 |
| 453.povray | 103 | 51.8 | 103 | 51.9 | 103 | 51.7 | 91.1 | 58.4 | 90.4 | 58.9 | 91.2 | 58.3 |
| 454.calculix | 171 | 48.2 | 172 | 48.0 | 171 | 48.2 | 154 | 53.5 | 154 | 53.7 | 154 | 53.6 |
| 459.GemsFDTD | 52.3 | 203 | 52.1 | 203 | 53.9 | 197 | 44.3 | 239 | 44.0 | 241 | 44.5 | 239 |
| 465.tonto | 293 | 33.6 | 294 | 33.5 | 297 | 33.2 | 198 | 49.8 | 198 | 49.8 | 197 | 49.8 |
| 470.lbm | 19.8 | 693 | 19.6 | 700 | 19.6 | 702 | 19.8 | 693 | 19.6 | 700 | 19.6 | 702 |
| 481.wrf | 110 | 101 | 109 | 103 | 109 | 102 | 110 | 101 | 109 | 103 | 109 | 102 |
| 482.sphinx3 | 333 | 58.5 | 332 | 58.7 | 334 | 58.4 | 333 | 58.5 | 332 | 58.7 | 334 | 58.4 |
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS Settings: Intel Hyper-Threading Technology option set to Disabled CPU performance set to Enterprise Power Technology set to Energy Efficient Energy Performance BIAS setting set to Balanced Performance Memory RAS configuration set to Maximum Performance Memory Power Saving Mode set to Disabled QPI Snoop Mode set to Home Directory Snoop with OSB Sysinfo program /opt/cpu2006-1.2/config/sysinfo.rev6914 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1 running on linux-cd5x Sat Dec 3 16:04:51 2016 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2630L v4 @ 1.80GHz 2 "physical id"s (chips) 20 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 10 siblings : 10 physical 0: cores 0 1 2 3 4 8 9 10 11 12 physical 1: cores 0 1 2 3 4 8 9 10 11 12 cache size : 25600 KB From /proc/meminfo MemTotal: 264569060 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 12 SP1 From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 12 (x86_64) VERSION = 12 PATCHLEVEL = 1 # This file is deprecated and will be removed in a future service pack or release. # Please check /etc/os-release for details about this release. os-release: NAME="SLES" VERSION="12-SP1" VERSION_ID="12.1" PRETTY_NAME="SUSE Linux Enterprise Server 12 SP1" ID="sles" ANSI_COLOR="0;32" CPE_NAME="cpe:/o:suse:sles:12:sp1" uname -a: Linux linux-cd5x 3.12.49-11-default #1 SMP Wed Nov 11 20:52:43 UTC 2015 (8d714a0) x86_64 x86_64 x86_64 GNU/Linux run-level 5 Dec 2 23:29 SPEC is set to: /opt/cpu2006-1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/sda1 xfs 1.1T 15G 1.1T 2% / Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS Cisco Systems, Inc. C240M4.2.0.13d.0.0812161132 08/12/2016 Memory: 16x 0xCE00 M393A2G40EB1-CRC 16 GB 2 rank 2400 MHz, configured at 2133 MHz 8x NO DIMM NO DIMM (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,compact" LD_LIBRARY_PATH = "/opt/cpu2006-1.2/libs/32:/opt/cpu2006-1.2/libs/64:/opt/cpu2006-1.2/sh" OMP_NUM_THREADS = "20" Binaries compiled on a system with 1x Intel Core i5-4670K CPU + 32GB memory using RedHat EL 7.1 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -ansi-alias |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias |
Fortran benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch |
Benchmarks using both Fortran and C:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -ansi-alias |
Peak Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -unroll4 -ansi-alias |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -unroll2 -inline-level=0 -opt-prefetch -parallel |
| 465.tonto: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -inline-calloc -opt-malloc-options=3 -auto -unroll4 |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | -xCORE-AVX2 -ipo -O3 -no-prec-div -auto-ilp32 -ansi-alias |
| 481.wrf: | basepeak = yes |
