SPEC® CINT2006 Result

Copyright 2006-2017 Standard Performance Evaluation Corporation

Cisco Systems

Cisco UCS B200 M4 (Intel Xeon E5-2699 v4 2.20
GHz)

SPECint®2006 = 74.4

CPU2006 license: 9019 Test date: Jan-2017
Test sponsor: Cisco Systems Hardware Availability: Apr-2016
Tested by: Cisco Systems Software Availability: Dec-2015

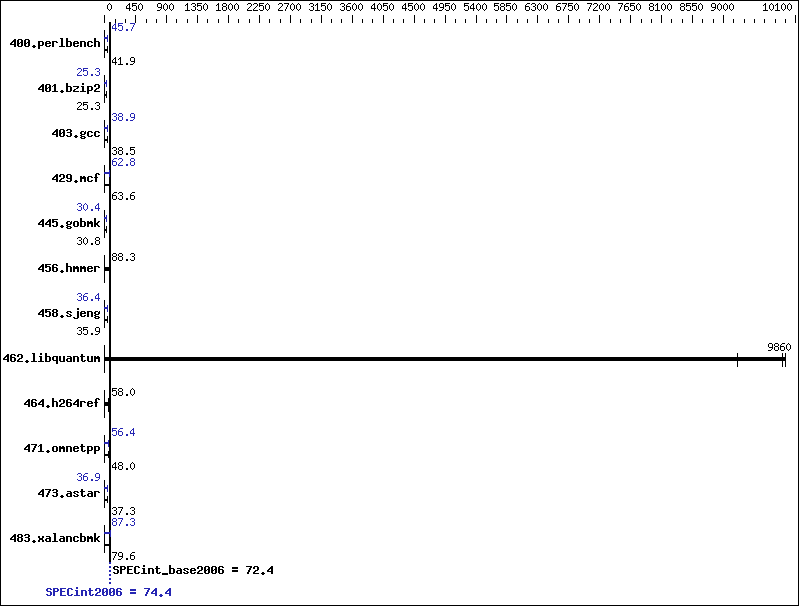

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2699 v4
CPU Characteristics: Intel Turbo Boost Technology up to 3.60 GHz
CPU MHz: 2200
FPU: Integrated
CPU(s) enabled: 44 cores, 2 chips, 22 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 55 MB I+D on chip per chip
Other Cache: None
Memory: 256 GB (16 x 16 GB 2Rx4 PC4-2400T-R)
Disk Subsystem: 2 x 1.2 TB SAS HDD 10K RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 12 SP1 (x86_64)
3.12.49-11-default
Compiler: C/C++: Version 16.0.0.101 of Intel C++ Studio XE
for Linux
Auto Parallel: Yes
File System: xfs
System State: Run level 3 (multi-user)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V10.2

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 234    41.8 233    41.9 233    42.0 214    45.7 213    45.8 214    45.7
401.bzip2 382    25.3 383    25.2 381    25.3 382    25.3 381    25.3 381    25.3
403.gcc 209    38.5 209    38.6 209    38.5 207    38.8 207    38.9 207    39.0
429.mcf 145    63.0 143    63.6 142    64.2 145    62.8 145    62.8 146    62.3
445.gobmk 340    30.8 340    30.8 341    30.7 346    30.4 345    30.4 345    30.4
456.hmmer 106    88.2 106    88.3 106    88.3 106    88.2 106    88.3 106    88.3
458.sjeng 337    35.9 337    36.0 337    35.9 333    36.4 332    36.4 333    36.4
462.libquantum 2.09 9910   2.25 9200   2.10 9860   2.09 9910   2.25 9200   2.10 9860
464.h264ref 382    58.0 382    58.0 382    57.9 382    58.0 382    58.0 382    57.9
471.omnetpp 131    47.9 125    50.0 130    48.0 111    56.4 111    56.4 111    56.3
473.astar 188    37.4 189    37.1 188    37.3 190    36.9 191    36.8 190    36.9
483.xalancbmk 87.0  79.4 86.6  79.6 86.5  79.7 79.1  87.2 79.1  87.3 79.0  87.3

Submit Notes

The config file option 'submit' was used.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

BIOS Settings:
Intel Hyper-Threading Technology option set to Disabled
CPU performance set to Enterprise
Power Technology set to Energy Efficient
Energy Performance BIAS setting set to Balanced Performance
Memory RAS configuration set to Maximum Performance
Memory Power Saving Mode set to Disabled
QPI Snoop Mode set to Home Directory Snoop with OSB
 Sysinfo program /opt/cpu2006-1.2/config/sysinfo.rev6914
 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1
 running on linux-q59g Tue Jan 24 04:14:34 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2699 v4 @ 2.20GHz
       2 "physical id"s (chips)
       44 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 22
       siblings  : 22
       physical 0: cores 0 1 2 3 4 5 8 9 10 11 12 16 17 18 19 20 21 24 25 26 27
       28
       physical 1: cores 0 1 2 3 4 5 8 9 10 11 12 16 17 18 19 20 21 24 25 26 27
       28
    cache size : 56320 KB

 From /proc/meminfo
    MemTotal:       264404096 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 12 (x86_64)
       VERSION = 12
       PATCHLEVEL = 1
       # This file is deprecated and will be removed in a future service pack or
       release.
       # Please check /etc/os-release for details about this release.
    os-release:
       NAME="SLES"
       VERSION="12-SP1"
       VERSION_ID="12.1"
       PRETTY_NAME="SUSE Linux Enterprise Server 12 SP1"
       ID="sles"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:12:sp1"

 uname -a:
    Linux linux-q59g 3.12.49-11-default #1 SMP Wed Nov 11 20:52:43 UTC 2015
    (8d714a0) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Jan 23 14:44

 SPEC is set to: /opt/cpu2006-1.2
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda1      xfs   2.2T   14G  2.2T   1% /
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS Cisco Systems, Inc. B200M4.3.1.3f.0.110320162243 11/03/2016
   Memory:
    16x 0xCE00 M393A2G40EB1-CRC 16 GB 2 rank 2400 MHz
    8x NO DIMM NO DIMM

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
KMP_AFFINITY = "granularity=fine,compact"
LD_LIBRARY_PATH = "/opt/cpu2006-1.2/libs/32:/opt/cpu2006-1.2/libs/64:/opt/cpu2006-1.2/sh"
OMP_NUM_THREADS = "44"

 Binaries compiled on a system with 1x Intel Core i5-4670K CPU + 32GB
 memory using RedHat EL 7.1
 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/transparent_hugepage/enabled

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
471.omnetpp:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch   -auto-p32

C++ benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -Wl,-z,muldefs   -L/sh -lsmartheap64

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m64
400.perlbench:  icc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin
445.gobmk:  icc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin

C++ benchmarks (except as noted below):

 icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin
473.astar:  icpc -m64

Peak Portability Flags

400.perlbench:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -D_FILE_OFFSET_BITS=64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
471.omnetpp:  -D_FILE_OFFSET_BITS=64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -opt-prefetch   -ansi-alias
401.bzip2:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -auto-ilp32   -opt-prefetch   -ansi-alias
403.gcc:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -inline-calloc   -opt-malloc-options=3   -auto-ilp32
429.mcf:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch   -auto-p32
445.gobmk:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -prof-use(pass 2)   -par-num-threads=1(pass 1)   -ansi-alias
456.hmmer:  basepeak = yes
458.sjeng:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll4
462.libquantum:  basepeak = yes
464.h264ref:  basepeak = yes

C++ benchmarks:

471.omnetpp:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -opt-ra-region-strategy=block    -ansi-alias   -Wl,-z,muldefs   -L/sh -lsmartheap
473.astar:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -Wl,-z,muldefs   -L/sh -lsmartheap64
483.xalancbmk:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch   -ansi-alias   -Wl,-z,muldefs   -L/sh -lsmartheap

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.html,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2-revE.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.xml,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2-revE.xml.
