SPEC® CINT2006 Result

Copyright 2006-2017 Standard Performance Evaluation Corporation

Lenovo Group Limited

Lenovo ThinkServer RD550
(2.40 GHz, Intel Xeon E5-2680 v4)

CPU2006 license: 9017 Test date: Feb-2017
Test sponsor: Lenovo Group Limited Hardware Availability: Mar-2016
Tested by: Lenovo Group Limited Software Availability: Sep-2016

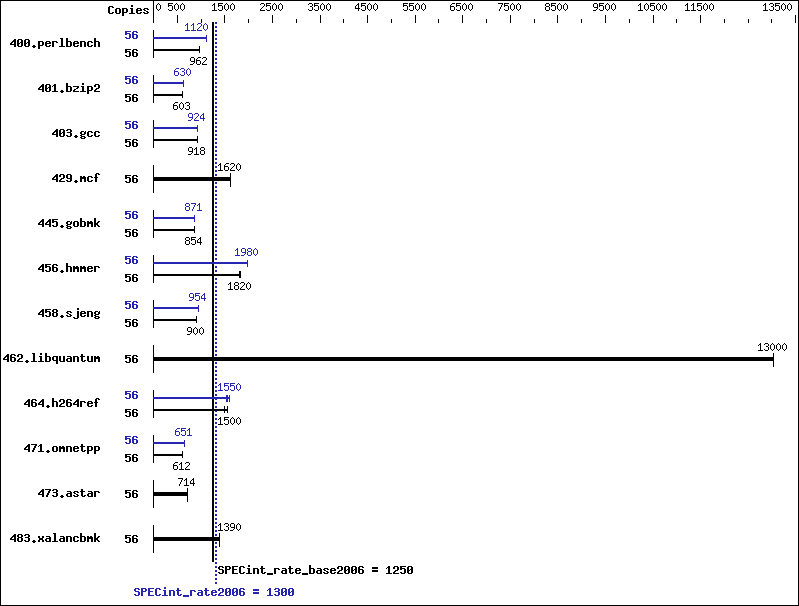

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2680 v4
CPU Characteristics: Intel Turbo Boost Technology up to 3.30 GHz
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 28 cores, 2 chips, 14 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 35 MB I+D on chip per chip
Other Cache: None
Memory: 256 GB (16 x 16 GB 2Rx4 PC4-2400T-R)
Disk Subsystem: 1 x 800 GB SATA SSD
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 12 SP1 (x86_64)
Kernel 3.12.49-11-default
Compiler: C/C++: Version 17.0.0.098 of Intel C/C++
Compiler for Linux
Auto Parallel: No
File System: xfs
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V10.2

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 56 569   961 569   962 569   962 56 488   1120 488   1120 488   1120
401.bzip2 56 897   603 898   602 897   603 56 857   630 859   629 858   630
403.gcc 56 491   918 492   917 491   919 56 491   919 487   926 488   924
429.mcf 56 315   1620 314   1630 314   1620 56 315   1620 314   1630 314   1620
445.gobmk 56 687   855 688   853 688   854 56 674   871 674   871 675   871
456.hmmer 56 286   1830 288   1810 287   1820 56 263   1980 264   1980 264   1980
458.sjeng 56 752   901 753   900 753   900 56 710   954 710   954 710   954
462.libquantum 56 89.0 13000 89.0 13000 89.0 13000 56 89.0 13000 89.0 13000 89.0 13000
464.h264ref 56 794   1560 826   1500 825   1500 56 772   1610 800   1550 804   1540
471.omnetpp 56 572   612 572   612 572   612 56 537   651 538   651 535   654
473.astar 56 552   713 550   714 550   715 56 552   713 550   714 550   715
483.xalancbmk 56 277   1390 277   1390 277   1400 56 277   1390 277   1390 277   1400

Submit Notes

 The numactl mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"
 Transparent Huge Pages enabled with:
  echo always > /sys/kernel/mm/transparent_hugepage/enabled
 Filesystem page cache cleared with:
  echo 1 > /proc/sys/vm/drop_caches

Platform Notes

BIOS Configuration:
 Cluster On Die set to Enabled
 Early Snoop set to Disabled
 Performance Profile set to Custom
 C1E Support set to Disabled
 Core C3 set to Disabled
 Core C6 set to Disabled
 Thermal Profile set to High Fan Speed
 Memory Power Savings set to Disabled
 Sysinfo program /home/cpu2006-1.2-ic17.0/config/sysinfo.rev6993
 Revision 6993 of 2015-11-06 (b5e8d4b4eb51ed28d7f98696cbe290c1)
 running on RD550-02 Thu Feb  9 11:08:43 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2680 v4@ 2.40GHz
       2 "physical id"s (chips)
       56 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 14
       siblings  : 28
       physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14
       physical 1: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14
    cache size : 17920 KB

 From /proc/meminfo
    MemTotal:       264555772 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 12 (x86_64)
       VERSION = 12
       PATCHLEVEL = 1
       # This file is deprecated and will be removed in a future service pack or
       release.
       # Please check /etc/os-release for details about this release.
    os-release:
       NAME="SLES"
       VERSION="12-SP1"
       VERSION_ID="12.1"
       PRETTY_NAME="SUSE Linux Enterprise Server 12 SP1"
       ID="sles"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:12:sp1"

 uname -a:
    Linux RD550-02 3.12.49-11-default #1 SMP Wed Nov 11 20:52:43 UTC 2015
    (8d714a0) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Feb 9 11:08

 SPEC is set to: /home/cpu2006-1.2-ic17.0
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda4      xfs   689G   23G  666G   4% /home
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS LENOVO PB1TS362 03/24/2016
   Memory:
    16x Hynix Semiconductor HMA42GR7AFR4N-UH 16 GB 2 rank 2400 MHz
    8x NO DIMM NO DIMM

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/home/cpu2006-1.2-ic17.0/libs/32:/home/cpu2006-1.2-ic17.0/libs/64:/home/cpu2006-1.2-ic17.0/sh10.2"

 Binaries compiled on a system with 1x Intel Core i7-4790 CPU + 32GB RAM
 memory using Redhat Enterprise Linux 7.2
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>

Base Compiler Invocation

C benchmarks:

 icc -m32 -L/opt/intel/compilers_and_libraries_2017/linux/lib/ia32

C++ benchmarks:

 icpc -m32 -L/opt/intel/compilers_and_libraries_2017/linux/lib/ia32

Base Portability Flags

400.perlbench:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX_IA32
401.bzip2:  -D_FILE_OFFSET_BITS=64
403.gcc:  -D_FILE_OFFSET_BITS=64
429.mcf:  -D_FILE_OFFSET_BITS=64
445.gobmk:  -D_FILE_OFFSET_BITS=64
456.hmmer:  -D_FILE_OFFSET_BITS=64
458.sjeng:  -D_FILE_OFFSET_BITS=64
462.libquantum:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX
464.h264ref:  -D_FILE_OFFSET_BITS=64
471.omnetpp:  -D_FILE_OFFSET_BITS=64
473.astar:  -D_FILE_OFFSET_BITS=64
483.xalancbmk:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -qopt-prefetch   -qopt-mem-layout-trans=3

C++ benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -qopt-prefetch   -qopt-mem-layout-trans=3   -Wl,-z,muldefs   -L/sh10.2 -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m32 -L/opt/intel/compilers_and_libraries_2017/linux/lib/ia32
400.perlbench:  icc -m64
401.bzip2:  icc -m64
456.hmmer:  icc -m64
458.sjeng:  icc -m64

C++ benchmarks:

 icpc -m32 -L/opt/intel/compilers_and_libraries_2017/linux/lib/ia32

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -D_FILE_OFFSET_BITS=64
429.mcf:  -D_FILE_OFFSET_BITS=64
445.gobmk:  -D_FILE_OFFSET_BITS=64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX
464.h264ref:  -D_FILE_OFFSET_BITS=64
471.omnetpp:  -D_FILE_OFFSET_BITS=64
473.astar:  -D_FILE_OFFSET_BITS=64
483.xalancbmk:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX2(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -auto-ilp32   -qopt-mem-layout-trans=3
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX2(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -qopt-prefetch   -auto-ilp32   -qopt-mem-layout-trans=3
403.gcc:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -qopt-mem-layout-trans=3
429.mcf:  basepeak = yes
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX2(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -qopt-mem-layout-trans=3
456.hmmer:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -unroll2   -auto-ilp32   -qopt-mem-layout-trans=3
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX2(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -unroll4   -auto-ilp32   -qopt-mem-layout-trans=3
462.libquantum:  basepeak = yes
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX2(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -unroll2   -qopt-mem-layout-trans=3

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX2(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -qopt-ra-region-strategy=block    -qopt-mem-layout-trans=3   -Wl,-z,muldefs   -L/sh10.2 -lsmartheap
473.astar:  basepeak = yes
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic17.0-official-linux64.html,
http://www.spec.org/cpu2006/flags/Lenovo-Platform-Settings-V1.2-BDW-revE.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic17.0-official-linux64.xml,
http://www.spec.org/cpu2006/flags/Lenovo-Platform-Settings-V1.2-BDW-revE.xml.
