SPEC® CFP2006 Result

Copyright 2006-2017 Standard Performance Evaluation Corporation

Nokia

AirFrame AR-D521U-A

SPECfp®2006 = 139

CPU2006 license: 4569 Test date: Jun-2017
Test sponsor: Nokia Hardware Availability: Sep-2017
Tested by: Nokia Software Availability: May-2017

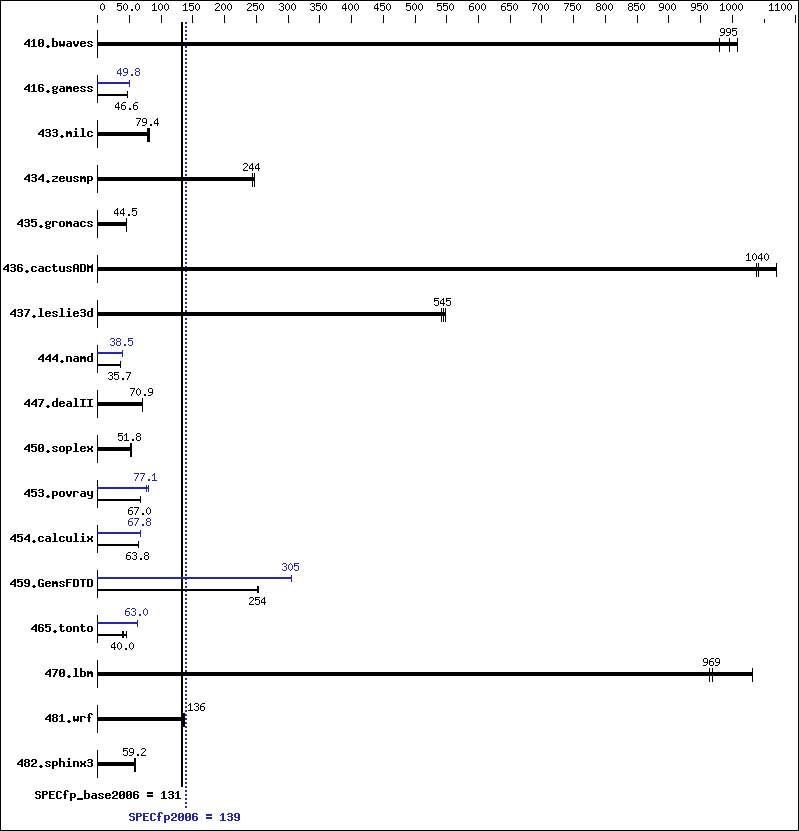

Benchmark results graph
Hardware
CPU Name: Intel Xeon Platinum 8180
CPU Characteristics: Intel Turbo Boost Technology up to 3.80 GHz
CPU MHz: 2500
FPU: Integrated
CPU(s) enabled: 56 cores, 2 chips, 28 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 38.5 MB I+D on chip per chip
Other Cache: None
Memory: 384 GB (24 x 16 GB 2Rx8 PC4-2666V-R)
Disk Subsystem: 1.5 TB (Intel NVME)
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 7.3
(Maipo)
3.10.0-514.21.1.el7.x86_64
Compiler: C/C++: Version 17.0.1.132 of Intel C/C++
Compiler for Linux;
Fortran: Version 17.0.1.132 of Intel Fortran
Compiler for Linux
Auto Parallel: Yes
File System: ext4
System State: Run level 3(multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 13.9 980   13.7 995   13.5 1010   13.9 980   13.7 995   13.5 1010
416.gamess 420   46.6 420   46.6 420   46.6 394   49.7 393   49.8 393   49.8
433.milc 112   82.1 116   79.0 116   79.4 112   82.1 116   79.0 116   79.4
434.zeusmp 36.9 247   37.3 244   37.3 244   36.9 247   37.3 244   37.3 244
435.gromacs 160   44.7 160   44.5 160   44.5 160   44.7 160   44.5 160   44.5
436.cactusADM 11.5 1040   11.2 1070   11.5 1040   11.5 1040   11.2 1070   11.5 1040
437.leslie3d 17.3 542   17.2 548   17.3 545   17.3 542   17.2 548   17.3 545
444.namd 224   35.8 225   35.7 224   35.7 208   38.5 208   38.6 208   38.5
447.dealII 161   70.9 161   70.9 161   71.0 161   70.9 161   70.9 161   71.0
450.soplex 161   51.8 158   52.7 161   51.8 161   51.8 158   52.7 161   51.8
453.povray 79.5 66.9 79.4 67.0 79.2 67.2 67.0 79.4 69.0 77.1 69.1 77.0
454.calculix 129   63.9 129   63.8 129   63.8 122   67.8 122   67.9 122   67.8
459.GemsFDTD 41.8 254   42.3 251   41.8 254   34.7 306   34.8 305   34.8 305
465.tonto 246   40.0 214   46.0 251   39.2 156   62.9 156   63.0 156   63.0
470.lbm 14.2 965   14.2 969   13.3 1030   14.2 965   14.2 969   13.3 1030
481.wrf 82.1 136   81.4 137   82.5 135   82.1 136   81.4 137   82.5 135
482.sphinx3 329   59.2 334   58.4 326   59.8 329   59.2 334   58.4 326   59.8

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

 Sysinfo program /run/media/root/SPEC/SPEC_AVX3/config/sysinfo.rev6993
 Revision 6993 of 2015-11-06 (b5e8d4b4eb51ed28d7f98696cbe290c1)
 running on skylake-dual-8180 Thu Jun 15 14:44:34 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Platinum 8180 CPU @ 2.50GHz
       2 "physical id"s (chips)
       112 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 28
       siblings  : 56
       physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 1: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
    cache size : 39424 KB

 From /proc/meminfo
    MemTotal:       394833816 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    os-release:
       NAME="Red Hat Enterprise Linux Server"
       VERSION="7.3 (Maipo)"
       ID="rhel"
       ID_LIKE="fedora"
       VERSION_ID="7.3"
       PRETTY_NAME="Red Hat Enterprise Linux Server 7.3 (Maipo)"
       ANSI_COLOR="0;31"
       CPE_NAME="cpe:/o:redhat:enterprise_linux:7.3:GA:server"
    redhat-release: Red Hat Enterprise Linux Server release 7.3 (Maipo)
    system-release: Red Hat Enterprise Linux Server release 7.3 (Maipo)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:7.3:ga:server

 uname -a:
    Linux skylake-dual-8180 3.10.0-514.21.1.el7.x86_64 #1 SMP Sat Apr 22 02:41:35
    EDT 2017 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Jun 15 10:21 last=5

 SPEC is set to: /run/media/root/SPEC/SPEC_AVX3
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/nvme2n1   ext4  1.5T  241G  1.2T  18% /run/media/root/SPEC
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS American Megatrends Inc. 2A11 02/22/2017
   Memory:
    24x Micron 18ASF2G72PDZ-2G6D1 16 GB 2 rank 2666 MHz

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
KMP_AFFINITY = "granularity=fine,compact,1,0"
LD_LIBRARY_PATH = "/run/media/root/SPEC/SPEC_AVX3/lib/ia32:/run/media/root/SPEC/SPEC_AVX3/lib/intel64:/run/media/root/SPEC/SPEC_AVX3/sh10.2"
OMP_NUM_THREADS = "56"

 Binaries compiled on a system with 1x Intel Core i7-4790 CPU + 32GB RAM
 memory using Redhat Enterprise Linux 7.2
 Transparent Huge Pages enabled by default.

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xCORE-AVX512   -ipo   -O3   -no-prec-div   -parallel   -qopt-prefetch

C++ benchmarks:

 -xCORE-AVX512   -ipo   -O3   -no-prec-div   -qopt-prefetch

Fortran benchmarks:

 -xCORE-AVX512   -ipo   -O3   -no-prec-div   -parallel   -qopt-prefetch

Benchmarks using both Fortran and C:

 -xCORE-AVX512   -ipo   -O3   -no-prec-div   -parallel   -qopt-prefetch

Peak Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX512(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -fno-alias   -auto-ilp32
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX512(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX512(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -unroll2   -inline-level=0   -scalar-rep-
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX512(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -unroll2   -inline-level=0   -qopt-prefetch   -parallel
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX512(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -inline-calloc   -qopt-malloc-options=3   -auto   -unroll4

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  basepeak = yes
454.calculix:  -xCORE-AVX512   -ipo   -O3   -no-prec-div   -auto-ilp32
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic17.0-official-linux64-revD.html,
http://www.spec.org/cpu2006/flags/Default-Platform-Flags.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic17.0-official-linux64-revD.xml,
http://www.spec.org/cpu2006/flags/Default-Platform-Flags.xml.
