ProCDRS-01 Viewset



The ProCDRS-01 viewset is a complete update of the CDRS-03 viewset. It is intended to model the graphics performance of Parametric Technology Corporation's Pro/DESIGNER industrial design software.

For more information on Pro/DESIGNER, see http://www.ptc.com/products/indu/id.htm

The viewset consists of ten tests, each of which represents a different mode of operation within Pro/DESIGNER. Two of the tests use a wireframe model, and the other tests use a shaded model. Each test returns a result in frames per second, and a composite score is calculated as a weighted geometric mean of the individual test results. The tests are weighted to represent the typical proportion of time a user would spend in each mode.

The model data was converted from OpenGL command traces taken directly from the running Pro/DESIGNER software, and therefore preserves most of the attributes of the original model.

This viewset uses new features that require Viewperf v6.x.

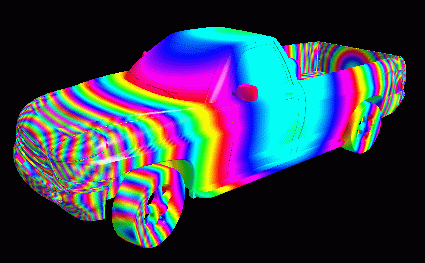

The shaded model is a mixture of triangle stips and independent triangles, with approximately 281000 vertices in 4700 OpenGL primitives, giving 131000 triangles total. The average triangle screen area is 4-5 pixels.

The wire frame model consists of only line strips, with around 202000 vertices in 19000 strips, giving 184000 lines total.

All tests run in display list mode. The wireframe tests use anti-aliased lines, since these are the default in Pro/DESIGNER. The shaded tests use one infinite light and two-sided lighting. The texture is a 512 by 512 pixel 24-bit color image. See the script files for more information.

Test Weight Description

1

25 Wireframe test

2

25

Wireframe test, walkthrough

3

10

Shaded test

4

10

Shaded test, walkthrough

5

5

Shaded with texture

6

5

Shaded with texture, walkthrough

7

3

Shaded with texture, eye linear texgen (dynamic reflections)

8

3

Shaded with texture, eye linear texgen, walkthrough

9

7

Shaded with color per vertex

10

7

Shaded with color per vertex, walkthrough
