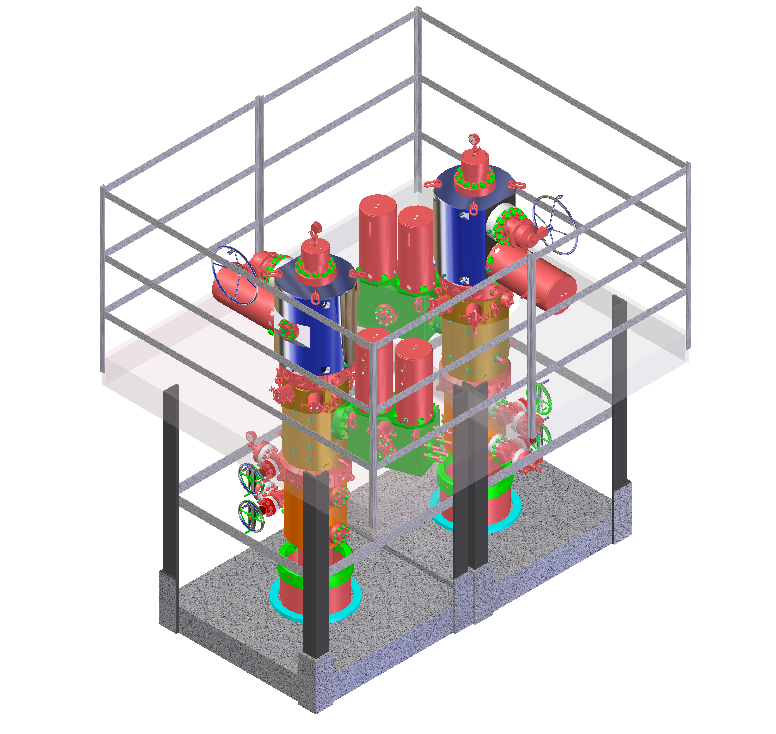

Well-head assembly
Hydraulic jack assembly

Explanation of Fields

SPECapcSM Information

Frequently Asked Questions

Reasons to Join the SPECapc Benchmarking Effort

SPECapc Project Committee Rules




SPECapc for Solid Edge V12 was developed by EDS PLM Solutions in cooperation with the SPECapc group. It represents typical user operations that are valuable in evaluating the performance of systems running Solid Edge.

The new benchmark runs on Microsoft Windows NT/2000 and Windows XP. The latest version increases the graphics and CPU workloads without requiring additional memory. EDS PLM Solutions nearly doubled the number of files in the well-head assembly model, and increased the triangle count from 1.3 to 3.8 million. The CPU tests now include a re-compute for a part with 500 features and a mass property calculation. Four basic areas of performance are measured:

  • Graphics - measures commonly used commands in three modes: smooth shading, wireframe, and smooth shading with textures and reflections.
  • File I/O - measures opening and saving the well-head assembly model using three different display configurations: all inactive, all active, and a combination of active, inactive and hidden parts.
  • CPU - exercises real-time VHL representation and re computing an assembly.
  • Workflow - represents a typical set of operations users will execute during the course of creating a project, such as real-time drawing view placement, in-place assembly activation, in-place part activation, modifying a model, and updating all the files due to the model change.

EDS PLM Solutions considers all four portions of the benchmark to be equally important in evaluating performance using Solid Edge, so they have been given equal weightings when calculating the geometric mean. The reference system for computing the normalized ratio is a 1.50GHz Pentium 4 running Windows 2000 SP3 with 1GB of PC800 ECC RDRAM, an NVIDIA Quadro2 Pro graphics card, and a 20GB ATA/100 hard drive.
