SPEC Seal of Reviewal SPECjAppServer2002 Result
Copyright © 2002 Standard Performance Evaluation Corporation
BEA WebLogic Application Server 8.1 SP2 on Sun Fire V20z
1,363.88 TOPS@MultipleNode
82.74
US$/TOPS@MultipleNode
Submitter:
Sun Microsystems Inc.
SPEC license # 6 Test date:
Aug-2004
EJB Container Avail: May-2004
EJB Container JVM Avail: Feb-2004
Software
EJB Container
Supplier Domain Container
Emulator Container
Database
JDBC
Other Software
Hardware
J2EE Application Server
Database Server
Load Driver
Benchmark
Modifications
Configuration
Other Info
General Notes
Links

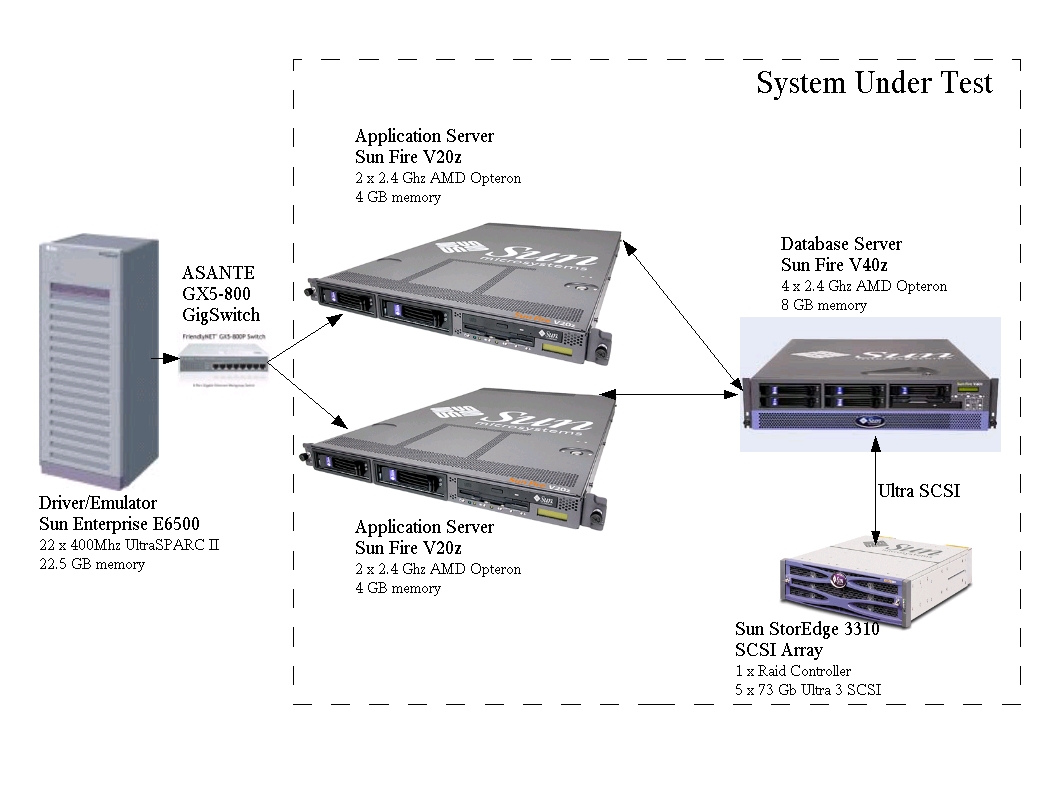

System Configuration Diagram

Full Disclosure Archive


Benchmark Settings
Orders Injection Rate: 800 Ramp Up Time: 600 seconds
# of Order Agents: 3 Ramp Down Time: 300 seconds
# of Manufacturing Agents: 3 Steady State Time: 1800 seconds
DB Load Injection Rate: 800 Trigger Time: 640 seconds
Total System Cost: US$112,843

Detailed Results
Order Transaction Mix Count Tx. Mix
New Order 707,521 49.95%
Change Order 283,816 20.04%
Order Status 283,370 20.01%
Customer Status 141,636 10.00%
Total # Order Transactions 1,416,343
Total # Manufacturing Transactions 1,038,634
Response Times Average Maximum 90th% Reqd
New Order 0.66 9.03 1.90 2.00
Change Order 0.33 5.13 0.80 2.00
Order Status 0.16 4.41 0.40 2.00
Customer Status 0.16 4.28 0.40 2.00
Manufacturing 3.23 9.31 4.50 5.00
Reproducibility Run (TOPS) 1,364.83

EJB Container
Name: BEA WebLogic Server 8.1 SP2, Workgroup Edition JVM Name: Java(TM) 2 Runtime Environment, Standard Edition, Version 1.4.2_04 32-bit
Vendor: BEA Systems, Inc. JVM Vendor: Sun Microsystems, Inc.
Available: May-2004 Available: Feb-2004
Instances: 2
Passed CTS: May-2004
Protocol: RMI/T3
Tuning Information
-Dweblogic.management.discover=false
-Dweblogic.SocketReaders=1
JVM Tuning Information
-server -Xms1900m -Xmx1900m -Xmn900m
-XX:+UseParallelGC -XX:+UseTLAB -Xrs
-XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=2
-XX:+DisableExplicitGC -XX:MaxTenuringThreshold=3 -verbose:gc

Supplier Domain Container
Name: BEA WebLogic Server 8.1 SP2, Workgroup Edition JVM Name: Java(TM) 2 Runtime Environment, Standard Edition, Version 1.4.2_04 32-bit
Vendor: BEA Systems, Inc. JVM Vendor: Sun Microsystems, Inc
Available: May-2004 Available: Feb-2004
Tuning Information
-Dweblogic.management.discover=false
-Dweblogic.SocketReaders=1
JVM Tuning Information
-server -Xms256m -Xmx256m
-XX:+AggressiveHeap -verbose:gc

Emulator Container
Name: BEA WebLogic Server 8.1 SP2, Workgroup Edition JVM Name: Java(TM) 2 Runtime Environment, Standard Edition, Version 1.4.2_04 32-bit
Vendor: BEA Systems, Inc. JVM Vendor: Sun Microsystems, Inc
Available: May-2004 Available: May-2004
Tuning Information
-Dweblogic.management.discover=false
JVM Tuning Information
-server -Xmx1800m -Xms1800m -Xmn768m
-XX:+UseParallelGC -XX:+UseTLAB
-XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=2
-XX:+DisableExplicitGC -XX:MaxTenuringThreshold=3
-Xrs -Dweblogic.SocketReaders=1 -verbose:gc

Database
Name: MySQL Database Standard Edition 4.0.15
Vendor: MySQL Inc.
Available: Dec-2003
Tuning Information
db_name=specdb
key_buffer = 32M
max_allowed_packet = 1M
table_cache = 1024
sort_buffer_size = 2M
read_buffer_size = 2M
myisam_sort_buffer_size = 64M
thread_cache = 16
query_cache_size = 0
thread_concurrency = 32
max_connections=500
max_tmp_tables=64
innodb_data_home_dir = /export/databases/mysql
innodb_data_file_path = ibdata1:3000M;ibdata2:20M:autoextend
innodb_log_group_home_dir = /db/logs/mysql
innodb_log_arch_dir = /db/specdb/mysql
set-variable = innodb_log_files_in_group=2
innodb_buffer_pool_size=2G
innodb_additional_mem_pool_size=20M
innodb_log_file_size=1800M
innodb_log_buffer_size=64M
innodb_flush_log_at_trx_commit=1
innodb_lock_wait_timeout=80
innodb_thread_concurrency=1064

JDBC
Name: MySQL Connector/J 3.0.8 (Thin)
Vendor: MySQL Inc.
Available: Dec-2003
Tuning Information
stmt-cache-size=300

Other Software
Name:
Vendor:
Available:
Tuning Information


J2EE Application Server (2 systems)
Hardware Vendor: Sun Microsystems, Inc. OS Vendor: Sun Microsystems, Inc.
Model Name: Sun Fire V20z OS Name: Solaris 9 HW 9/04 Operating System, x86 Platform Edition
Processor: AMD Opteron 250 Filesystem: UFS
MHz: 2400 Disks: 1x36Gb 10K RPM Ultra-3
# of CPUs: 2 cores, 2 chips, 1 core/chip Network Interface: (2) 10/100/1000 BaseT Ethernet
Memory (MB): 4096 Other Hardware:
L1 Cache: 64KB(I)+64KB(D) per chip # of Systems: 2
L2 Cache: 1MB per chip H/W Available: Jul-2004
Other Cache: OS Available: Jul-2004
Notes / Tuning Information

The WebLogic patch for CR133783 was applied.

Database Server (1 system)
Hardware Vendor: Sun Microsystems, Inc. OS Vendor: Sun Microsystems, Inc.
Model Name: Sun Fire V40z OS Name: Solaris 9 HW 9/04 Operating System, x86 Platform Edition
Processor: AMD Opteron 850 Filesystem: UFS
MHz: 2400 Disks: 2x73Gb 10K RPM Ultra-320 SCSI
# of CPUs: 4 cores, 4 chips, 1 core/chip Network Interface: (2) onboard 10/100/1000 BaseT Ethernet
Memory (MB): 8192 Other Hardware: (1) Sun StorEdge 3310 SCSI Array (5 x 73GB 10K RPM Ultra160 SCSI)
L1 Cache: 64KB(I)+64KB(D) per chip # of Systems: 1
L2 Cache: 1MB per chip H/W Available: Aug-2004
Other Cache: OS Available: Jul-2004
Notes / Tuning Information
Disk Layout:
4x73GB disks with RAID 0+1 for the log files
1x72GB disk for the data files

Load Driver (1 system)
Hardware Vendor: Sun Microsystems, Inc. OS Vendor: Sun Microsystems, Inc.
Model Name: Sun Enterprise E6500 OS Name: Solaris 9 4/04
Processor: UltraSPARC II Filesystem: UFS
MHz: 400 MHz Disks: 4x36GB
# of CPUs: 22 cores, 22 chips, 1 core/chip Network Interface: 10/100/1000 BaseT Ethernet
Memory (MB): 22528 Other Hardware:
L1 Cache: 32KB(I)+64KB(D) per chip # of Systems: 1
L2 Cache: 1MB per chip H/W Available: Aug-2003
Other Cache: OS Available: Apr-2004
Notes / Tuning Information


Benchmark Modifications
Schema Modifications:
  Tablespace sizes were increased to support the Injection rate
  Scripts to create the DB are included in the FDA
  Two indexes were created on the M_largeorder table:
  CREATE UNIQUE INDEX M_lo_idx ON M_largeorder  (lo_id)
  CREATE UNIQUE INDEX M_OL_O_idx ON M_largeorder (lo_o_id, lo_ol_id)
Load Program Modifications:
  The load program was not modified
Reference Bean Modifications:
  No changes were made to the reference beans

Benchmark Configuration Information
Persistence Mode Used:
  CMP mode was used for all beans
Isolation Requirement Info:
  BEAN		 SPEC_REQUIREMENT    Deployment
  CORP:
  RuleEnt          Read_Committed      RC
  DiscountEnt      Read_Committed      RC
  CustomerEnt      Read_Committed      RC
  MFG:
  AssemblyEnt      Read_Committed      RC
  BomEnt           Read_Committed      Sel-4-Upd
  ComponentEnt     Read_Committed      RC
  PartEnt          Read_Committed      RC
  WorkOrderEnt     Repeatable_Read     Sel-4-Upd
  LargeOrderEnt    Read_Committed      RC
  InventoryEnt     Repeatable_Read     Sel-4-Upd
  ORDERS:
  OrderLineEnt     Repeatable_Read     Sel-4-Upd
  OrderCustomerEnt Read_Committed      RC
  ItemEnt          Read_Committed      RC
  OrderEnt         Repeatable_Read     Sel-4-Upd
  SUPPLIER:
  SupplierEnt      Read_Committed      RC
  SupplierCompEnt  Read_Committed      RC
  SComponentEnt    Repeatable_Read     Sel-4-Upd
  POEnt            Repeatable_Read     Sel-4-Upd
  POLineEnt        Repeatable_Read     Sel-4-Upd
  Transaction consistency for those beans specifying field
  groups was proven by manual analysis of the source code.
Durability Requirement Info:
  The Redo log disks are mirrored (RAID 0+1).
  The database commits all changes to the redo
  log when each transaction is completed.
Storage Requirement Info:
  A 45 minute run at an injection rate of 800 increased storage by 4.40 GB.
  This extrapolates to 46.94 GB of storage for an 8-hour run.
  The database system is configured with 365 GB of storage.
Argument Passing Semantics:
  BEA WebLogic 8.1 uses pass-by-value
  as required by the EJB specification

Other Benchmark Information
  This submission used the xerces.jar from the SPECjAppServer2002 kit.
  Round Robin DNS was used to balance workload over multiple WebLogic instances.
  The DNS server was run on one of the application server nodes

General Notes
The Audit beans were modified to use 'select count(*)' instead of
'select count (*)' queries (white space is removed after count)
so that they work with MySQL.
The modified source is in the FDA.
No errors were reported during the final or reproducability run.


For questions about this result, please contact the submitter: Sun Microsystems Inc.
For other inquiries, please contact webmaster@spec.org

Benchmark run on Mon Aug 16 14:15:33 PDT 2004 by SPECjAppServer2002 v1.14
Result submitted on Wed Aug 18 03:03:00 EDT 2004
Report generated by SPECjAppServer2002 Reporter v1.01
