SPEC Seal of Reviewal SPECjEnterprise®2010 Result
Copyright © 2009-2011 Standard Performance Evaluation Corporation
Oracle Weblogic Server Standard Edition Release 10.3.4 on Cisco UCS B440 M1 Blade Server
17,301.86 SPECjEnterprise2010 EjOPS
Submitter:
Cisco Systems, Inc.
SPEC license # 9019 Test date:
Feb-2011
Software Products
Oracle WebLogic Server Standard Edition Release 10.3.4
Oracle JRockit(R) 6.0 JDK (R28.1.1) (Linux x86 64bit)
Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_21
Oracle JDBC Driver 11.2.0.2(Thin)
Oracle Database 11g Enterprise Edition Release 11.2.0.2
EclipseLink JPA 2.1.2 Persistence Library
Software Configurations
JEE Application Server
Emulator SW Config 1
Emulator SW Config 2
Database SW Config
Driver SW Config Primary and Satellites 1-3
Driver SW Config Satellites 4-5
Hardware Systems
JEE AppServer HW
Database Server HW
Primary and Satellite Drivers 1-3 and Emulator 1 HW
Emulator 2 HW
Satellite Drivers 4-5 HW

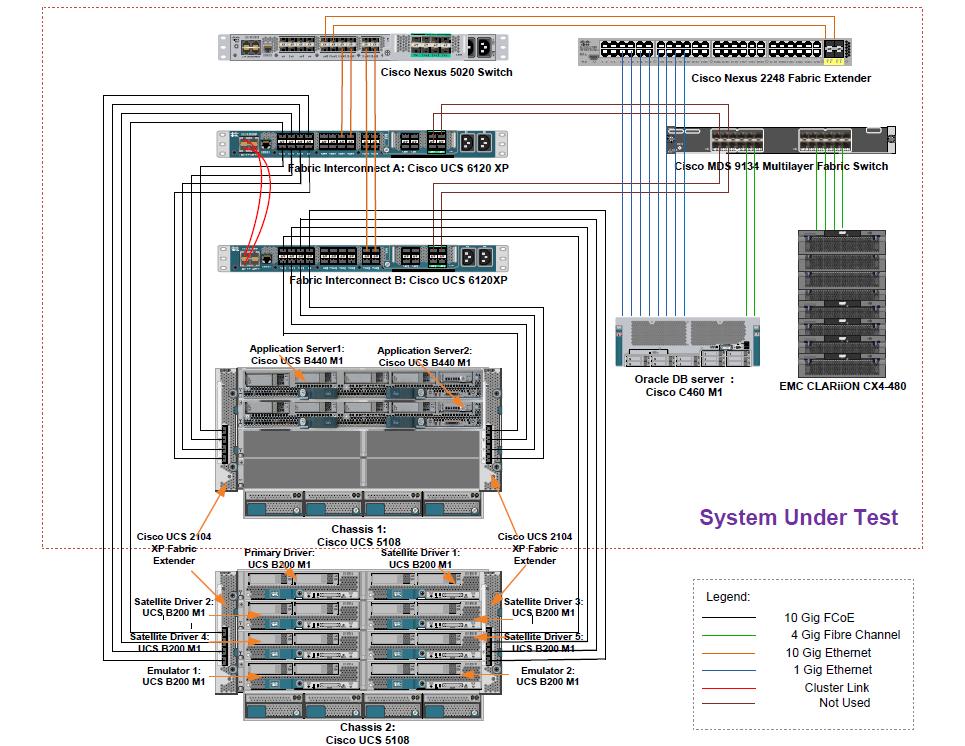

System Configuration Diagram

Benchmark
Modifications
Configuration
Bill of Materials
Other Info
General Notes
Full Disclosure Archive

SUT Configuration
JEE Server Nodes: 2   DB Server Nodes: 1
JEE Server CPUs: 64 cores, 8 chips   DB Server CPUs: 32 cores, 4 chips
JEE Instances: 8   DB Instances: 1
Other SUT Components:
   1x Cisco Nexus 5020 Switch
   1x Cisco Nexus 2248 Fabric Extender
   1x Cisco MDS 9134 Multilayer Fabric Switch
   2x Cisco UCS 6120XP Fabric Interconnects

Benchmark Settings
Dealer Injection Rate: 10,900   Ramp Up Time: 600 seconds
DB Load Injection Rate: 20,000   Steady State Time: 3,600 seconds
# of Dealer Agents: 109,000   Ramp Down Time: 300 seconds
# of Manufacturing Agents: 32,700

Detailed Results
Dealer Transaction Mix Count Tx. Mix Failure Count
Purchase 9,863,942 24.99% 1
Manage 9,871,108 25.01% 0
Browse 19,735,355 50.00% 0
Total # Dealer Transactions 39,470,405
Manufacturing Transaction Mix Count Tx. Mix Failure Count
CreateVehicleEJB 11,412,897 50.02% 1,490
CreateVehicleWS 11,403,410 49.98% 1,515
Total # Manufacturing Transactions 22,816,307
Response Times Average Standard Deviation Maximum 90th% Reqd
Purchase 0.133 0.42 16.570 0.230 2.000
Manage 0.068 0.16 14.903 0.130 2.000
Browse 0.165 0.50 13.283 0.320 2.000
CreateVehicleEJB 0.405 0.45 3.114 1.075 5.000
CreateVehicleWS 0.375 0.40 3.083 0.950 5.000
Reproducibility Run (SPECjEnterprise2010 EjOPS) 17,311.44

Oracle WebLogic Server Standard Edition Release 10.3.4
Vendor: Oracle Corporation Availability: May-2011
CTS Version: 5.0 Date Passed CTS: Feb-2007
OS Name: Oracle Linux 5 Update 5 x86_64
EJB Protocol: RMI/T3

Oracle JRockit(R) 6.0 JDK (R28.1.1) (Linux x86 64bit)
Vendor: Oracle Corporation Availability: Dec-2010
OS Name: Oracle Linux 5 Update 5 x86_64

Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_21
Vendor: Oracle Corporation Availability: Jul-2010
OS Name: Oracle Linux 5 Update 5 x86_64

Oracle JDBC Driver 11.2.0.2(Thin)
Vendor: Oracle Corporation Availability: Sep-2010
OS Name: Oracle Linux 5 Update 5 x86_64

Oracle Database 11g Enterprise Edition Release 11.2.0.2
Vendor: Oracle Corporation Availability: Sep-2010
OS Name: Oracle Linux 5 Update 5 x86_64

EclipseLink JPA 2.1.2 Persistence Library
Vendor: Eclipse Foundation Availability: Dec-2010
Description: Java persistence library

JEE Application Server
JEE Product: Oracle WebLogic Server Standard Edition Release 10.3.4
JVM Product: Oracle JRockit(R) 6.0 JDK (R28.1.1) (Linux x86 64bit)
JDBC Product: Oracle JDBC Driver 11.2.0.2(Thin)
Hardware: JEE AppServer HW
# of Instances: 8
Interfaces:
Web Interface for the Order Domain
Web Services Interface for the Supplier Domain
EJB Interface for the Manufacturing Domain
Web Services Interface for the Manufacturing Domain
Notes / Tuning Information
JVM Options
-showversion -Xlargepages:exitOnFailure=true -Xms6400m -Xmx6400m -Xns3360m -XXaggressive -Xgc:genpar
-XXgcthreads=8 -Xlargepages -Xverbose:opt,gcpause,compaction -Dweblogic.MuxerClass=weblogic.socket.NIOSocketMuxer
-Dweblogic.SocketReaders=3 -Dweblogic.management.discover=false -Dweblogic.diagnostics.debug.DebugLogger.DISABLED=true
-Djaxws.transport.streaming=true -Doracle.jdbc.defaultRowPrefetch=200
-Djavax.xml.parsers.DocumentBuilderFactory=weblogic.xml.jaxp.RegistryDocumentBuilderFactory
-Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0

Oracle patches for WebLogic Server Standard Edition 10.3.4 11785246, 10382753, 9956275
Added Eclipselink 2.1.2 Runtime Library to classpath

Emulator SW Config 1
JEE Product: Oracle WebLogic Server Standard Edition Release 10.3.4
JVM Product: Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_21
Hardware: Primary and Satellite Drivers 1-3 and Emulator 1 HW
# of Instances: 2
Notes / Tuning Information
-Xmx21g -Xms21g -Xmn7g -Xss272k -XX:PermSize=95m -XX:MaxPermSize=512M -XX:+UseLargePages -XX:+AggressiveOpts
-XX:+DisableExplicitGC -verbosegc -Xloggc:emugc.log -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -XX:+PrintCommandLineFlags
-showversion -Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0 -Dweblogic.SocketReaders=1
-Dweblogic.management.discover=false -Dweblogic.diagnostics.debug.DebugLogger.DISABLED=true
-Djavax.xml.parsers.DocumentBuilderFactory=com.sun.org.apache.xerces.internal.jaxp.DocumentBuilderFactoryImpl -Dhttp.keepAlive=false

Emulator SW Config 2
JEE Product: Oracle WebLogic Server Standard Edition Release 10.3.4
JVM Product: Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_21
Hardware: Emulator 2 HW
# of Instances: 2
Notes / Tuning Information
-Xmx21g -Xms21g -Xmn7g -Xss272k -XX:PermSize=95m -XX:MaxPermSize=512M -XX:+UseLargePages -XX:+AggressiveOpts
-XX:+DisableExplicitGC -verbosegc -Xloggc:emugc.log -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -XX:+PrintCommandLineFlags
-showversion -Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0 -Dweblogic.SocketReaders=1
-Dweblogic.management.discover=false -Dweblogic.diagnostics.debug.DebugLogger.DISABLED=true
-Djavax.xml.parsers.DocumentBuilderFactory=com.sun.org.apache.xerces.internal.jaxp.DocumentBuilderFactoryImpl -Dhttp.keepAlive=false

Database SW Config
DB Product: Oracle Database 11g Enterprise Edition Release 11.2.0.2
Hardware: Database Server HW
# of Instances: 1
Character Set: US7ASCII
Notes / Tuning Information
db_name                       = specdb
compatible                    = 11.2.0.1.0
control_files                 = ?/dbs/cntrlspecdb
aq_tm_processes               = 0
db_4k_cache_size              = 60000M
db_8k_cache_size              = 80000M
db_block_checking             = FALSE
db_block_checksum             = FALSE
db_block_size                 = 2048
db_cache_advice               = OFF
db_cache_size                 = 180000M
db_file_multiblock_read_count = 128
db_files                      = 256
db_keep_cache_size            = 20000M
dml_locks                     = 2200
filesystemio_options          = DirectIO
log_buffer                    = 67108864
log_checkpoint_interval       = 0
log_checkpoints_to_alert      = TRUE
open_cursors                  = 4000
parallel_max_servers          = 100
pga_aggregate_target          = 0
processes                     = 4000
query_rewrite_enabled         = FALSE
replication_dependency_tracking = FALSE
session_cached_cursors        = 4000
sessions                      = 4000
shared_pool_size              = 24000M
statistics_level              = BASIC
timed_statistics              = FALSE
trace_enabled                 = FALSE
transactions                  = 15000
transactions_per_rollback_seg = 1
undo_management               = AUTO
undo_retention                = 10
undo_tablespace               = undo_ts

Driver SW Config Primary and Satellites 1-3
JVM Product: Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_21
Hardware: Primary and Satellite Drivers 1-3 and Emulator 1 HW
# of Instances: 4
Notes / Tuning Information
-server -Xms6400M -Xmx6400M -Xss256k -Djava.net.preferIPv4Stack=true -verbosegc
-Dhttp.keepAliveCache.lifeTime=600000 -Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0

Driver SW Config Satellites 4-5
JVM Product: Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_21
Hardware: Satellite Drivers 4-5 HW
# of Instances: 2
Notes / Tuning Information
-server -Xms6400M -Xmx6400M -Xss256k -Djava.net.preferIPv4Stack=true -verbosegc
-Dhttp.keepAliveCache.lifeTime=600000 -Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0

JEE AppServer HW (SUT hardware)
Hardware Vendor: Cisco OS Vendor: Oracle Corporation
Model Name: Cisco UCS B440 M1 Blade Server OS Name: Oracle Linux 5 Update 5 x86_64
Processor: Eight Core Intel(R) Xeon(R) X7560 Filesystem: ext3
MHz: 2262 Disks: 4x 73GB 6Gb/s SAS 15K RPM Cisco UCS M71KR-Q QLogic Converged
# of CPUs: 32 cores, 4 chips, 8 cores/chip, 2 threads/core (Hyper-Threading) Network Interface: Network Adapter with 2 x 10 Gigabit Ethernet and 2 x 4Gbps Fiber Channel
Memory (MB): 131072 Other Hardware: See notes
DIMM[0] Count: 32 DIMM[0] Size: 4096
L1 Cache: 32KB(I)+32KB(D) on chip per core # of Systems: 2
L2 Cache: 256 KB on chip per core H/W Available: May-2010
Other Cache: 24MB(I+D) L3 on chip per chip OS Available: Apr-2010
Notes / Tuning Information
Added to /etc/sysctl.conf:
fs.file-max = 524288
kernel.sem = 250 32000 100 128
kernel.shmall = 10737418240
kernel.shmmax = 4398046511104
net.core.netdev_max_backlog = 400000
net.core.optmem_max = 30000000
net.core.rmem_default = 30000000
net.core.rmem_max = 30000000
net.core.somaxconn = 40000
net.core.wmem_default = 30000000
net.core.wmem_max = 30000000
net.ipv4.ip_local_port_range = 1024 65000
net.ipv4.tcp_fin_timeout = 10
net.ipv4.tcp_max_syn_backlog = 30000
net.ipv4.tcp_max_tw_buckets = 2000000
net.ipv4.tcp_mem = 30000000 30000000 30000000
net.ipv4.tcp_rmem = 30000000 30000000 30000000
net.ipv4.tcp_timestamps = 0
net.ipv4.tcp_wmem = 30000000 30000000 30000000
vm.zone_reclaim_mode=1

For each of the NICs:
set arp_announce = 2
set arp_ignore = 1
set txqueuelen 60000
enable tso and gso
bind interrupt to a core corresponding to the server instance

Server instances were started using numactl in RT priority of 89, binding 1 instance per chip.
Stop iptables.
Stop irqbalance.
Configure 50000 hugepages.

System was configured with 4 drives in RAID1/0
for jms and server logs.

Database Server HW (SUT hardware)
Hardware Vendor: Cisco OS Vendor: Oracle Corporation
Model Name: Cisco UCS C460 M1 Rack Mount Server OS Name: Oracle Linux 5 Update 5 x86_64
Processor: Eight Core Intel(R) Xeon(R) X7560 Filesystem: ext3
MHz: 2262 Disks: 4x 73GB 6Gb/s SAS 15K RPM Cisco UCS M71KR-Q QLogic Converged
# of CPUs: 32 cores, 4 chips, 8 cores/chip, 2 threads/core (Hyper-Threading) Network Interface: 8x 1Gbps NICs
Memory (MB): 524288 Other Hardware: See notes
DIMM[0] Count: 128 DIMM[0] Size: 4096
L1 Cache: 32KB(I)+32KB(D) on chip per core # of Systems: 1
L2 Cache: 256 KB on chip per core H/W Available: Apr-2010
Other Cache: 24MB(I+D) L3 on chip per chip OS Available: Apr-2010
Notes / Tuning Information
Added to /etc/sysctl.conf:
fs.file-max = 262144
kernel.sem = 250 32000 100 128
kernel.shmall = 10737418240
kernel.shmmax = 4398046511104
net.core.netdev_max_backlog = 400000
net.core.optmem_max = 30000000
net.core.rmem_default = 30000000
net.core.rmem_max = 30000000
net.core.somaxconn = 40000
net.core.wmem_default = 30000000
net.core.wmem_max = 30000000
net.ipv4.ip_local_port_range = 1024 65000
net.ipv4.tcp_fin_timeout = 10
net.ipv4.tcp_max_syn_backlog = 30000
net.ipv4.tcp_max_tw_buckets = 2000000
net.ipv4.tcp_mem = 30000000 30000000 30000000
net.ipv4.tcp_rmem = 30000000 30000000 30000000
net.ipv4.tcp_timestamps = 0
net.ipv4.tcp_wmem = 30000000 30000000 30000000
vm.zone_reclaim_mode=1

For each of the NICs:
set arp_announce = 2
set arp_ignore = 1
set txqueuelen 60000
enable tso and gso
bind interrupt to a core corresponding to the listener instance

Listener instances were started using numactl, binding 1 instance per chip.
Stop iptables.
Stop irqbalance.
Configure 230000 hugepages.

External storage configuration:
64x EMC 450 GB 15K 4G FC HDD drives in 4x (8+8) RAID1/0 for data files;
32x EMC 450 GB 15K 4G FC HDD drives in 2x (8+8) RAID1/0 for redo logs.

Primary and Satellite Drivers 1-3 and Emulator 1 HW (non-SUT hardware)
Hardware Vendor: Cisco OS Vendor: Oracle Corporation
Model Name: Cisco UCS B200 M1 Blade Server OS Name: Oracle Linux 5 Update 5 x86_64
Processor: Quad Core Intel(R) Xeon(R) X5570 Filesystem: ext3
MHz: 2927 Disks: 2x 300GB SAS 10K RPM Cisco UCS M71KR-Q QLogic Converged
# of CPUs: 8 cores, 2 chips, 4 cores/chip, 2 threads/core (Hyper-Threading) Network Interface: 2x 10Gb NIC
Memory (MB): 49152 Other Hardware: none
L1 Cache: 32KB(I)+32KB(D) on chip per core # of Systems: 5
L2 Cache: 256KB on chip per core H/W Available: Apr-2000
Other Cache: 8MB L3 on chip per chip OS Available: Apr-2010
Notes / Tuning Information
Added to /etc/sysctl.conf:
fs.file-max = 524288
kernel.sem = 250 32000 100 128
kernel.shmall = 1073741824
kernel.shmmax = 51539607552
net.core.netdev_max_backlog = 400000
net.core.optmem_max = 30000000
net.core.rmem_default = 30000000
net.core.rmem_max = 30000000
net.core.somaxconn = 40000
net.core.wmem_default = 30000000
net.core.wmem_max = 30000000
net.ipv4.ip_local_port_range = 1024 65000
net.ipv4.tcp_fin_timeout = 10
net.ipv4.tcp_max_syn_backlog = 30000
net.ipv4.tcp_max_tw_buckets = 2000000
net.ipv4.tcp_mem = 30000000 30000000 30000000
net.ipv4.tcp_rmem = 30000000 30000000 30000000
net.ipv4.tcp_timestamps = 0
net.ipv4.tcp_wmem = 30000000 30000000 30000000
vm.zone_reclaim_mode=1

For each of the NICs:
set arp_announce = 2
set arp_ignore = 1
set txqueuelen 60000
enable tso and gso

Stop iptables.
Stop irqbalance.

Emulator instances were started using numactl, binding 1 instance per chip.
Bind interrupt to a core corresponding to the server instance
Configure 16000 hugepages.

Emulator 2 HW (non-SUT hardware)
Hardware Vendor: Cisco OS Vendor: Oracle Corporation
Model Name: Cisco UCS B200 M1 Blade Server OS Name: Oracle Linux 5 Update 5 x86_64
Processor: Quad Core Intel(R) Xeon(R) E5540 Filesystem: ext3
MHz: 2528 Disks: 2x 300GB SAS 10K RPM Cisco UCS M71KR-Q QLogic Converged
# of CPUs: 8 cores, 2 chips, 4 cores/chip, 2 threads/core (Hyper-Threading) Network Interface: 2x 10Gb NIC
Memory (MB): 49152 Other Hardware: none
L1 Cache: 32KB(I)+32KB(D) on chip per core # of Systems: 1
L2 Cache: 256KB on chip per core H/W Available: Apr-2010
Other Cache: 8MB L3 on chip per chip OS Available: Apr-2010
Notes / Tuning Information
Added to /etc/sysctl.conf:
fs.file-max = 524288
kernel.sem = 250 32000 100 128
kernel.shmall = 1073741824
kernel.shmmax = 51539607552
net.core.netdev_max_backlog = 400000
net.core.optmem_max = 30000000
net.core.rmem_default = 30000000
net.core.rmem_max = 30000000
net.core.somaxconn = 40000
net.core.wmem_default = 30000000
net.core.wmem_max = 30000000
net.ipv4.ip_local_port_range = 1024 65000
net.ipv4.tcp_fin_timeout = 10
net.ipv4.tcp_max_syn_backlog = 30000
net.ipv4.tcp_max_tw_buckets = 2000000
net.ipv4.tcp_mem = 30000000 30000000 30000000
net.ipv4.tcp_rmem = 30000000 30000000 30000000
net.ipv4.tcp_timestamps = 0
net.ipv4.tcp_wmem = 30000000 30000000 30000000
vm.zone_reclaim_mode=1

For each of the NICs:
set arp_announce = 2
set arp_ignore = 1
set txqueuelen 60000
enable tso and gso

Stop iptables.
Stop irqbalance.

Emulator instances were started using numactl, binding 1 instance per chip.
Bind interrupt to a core corresponding to the server instance
Configure 16000 hugepages.

Satellite Drivers 4-5 HW (non-SUT hardware)
Hardware Vendor: Cisco OS Vendor: Oracle Corporation
Model Name: Cisco UCS B200 M1 Blade Server OS Name: Oracle Linux 5 Update 5 x86_64
Processor: Quad Core Intel(R) Xeon(R) E5520 Filesystem: ext3
MHz: 2262 Disks: 2x 300GB SAS 10K RPM Cisco UCS M71KR-Q QLogic Converged
# of CPUs: 8 cores, 2 chips, 4 cores/chip, 2 threads/core (Hyper-Threading) Network Interface: 2x 10Gb NIC
Memory (MB): 49152 Other Hardware: none
L1 Cache: 32KB(I)+32KB(D) on chip per core # of Systems: 2
L2 Cache: 256KB on chip per core H/W Available: Apr-2010
Other Cache: 8MB L3 on chip per chip OS Available: Apr-2010
Notes / Tuning Information
Added to /etc/sysctl.conf:
fs.file-max = 524288
kernel.sem = 250 32000 100 128
kernel.shmall = 1073741824
kernel.shmmax = 51539607552
net.core.netdev_max_backlog = 400000
net.core.optmem_max = 30000000
net.core.rmem_default = 30000000
net.core.rmem_max = 30000000
net.core.somaxconn = 40000
net.core.wmem_default = 30000000
net.core.wmem_max = 30000000
net.ipv4.ip_local_port_range = 1024 65000
net.ipv4.tcp_fin_timeout = 10
net.ipv4.tcp_max_syn_backlog = 30000
net.ipv4.tcp_max_tw_buckets = 2000000
net.ipv4.tcp_mem = 30000000 30000000 30000000
net.ipv4.tcp_rmem = 30000000 30000000 30000000
net.ipv4.tcp_timestamps = 0
net.ipv4.tcp_wmem = 30000000 30000000 30000000
vm.zone_reclaim_mode=1

For each of the NICs:
set arp_announce = 2
set arp_ignore = 1
set txqueuelen 60000
enable tso and gso

Stop iptables.
Stop irqbalance.

Benchmark Modifications
Schema Modifications:
  Tablespace sizes were increased to support the Injection rate.
  Scripts to create the DB are included in the FDA.
  Table and index initrans were modified.
  Table M_WORKORDER, O_ORDERLINE and O_ORDERS were horizontally partitioned.
  Table M_BOM, M_INVENTORY and M_PARTS were hash clustered.
  System managed undo was used.
Load Program Modifications:
  No modifications to the load programs were made.

Benchmark Configuration Information
Isolation Requirement Info:
  The ItemEnt bean was cached for 20 minute intervals by setting:
  eclipselink.query-results-cache.expiry=1200000
  in the ord-orm.xml deployment descriptor.

  The benchmark meets the isolation level requirements by
  version column checking on entities against
  the database.
Durability Requirement Info:
  To ensure database durability, RAID 1 was used for the
  database files and database redo logs
Storage Requirement Info:
  A 75 minute run at an injection rate of 10900 increased storage by 26.5 GB
  This extrapolates to 509 GB storage for a 24 hour run.
  The database was configured with 14.4 TB of mirrored storage.


Bill of Materials
Supplier  Description                                   Product #          Qty
--------  -------------------------------------------   ----------------   ---

Application Server
Cisco     Cisco UCS B440 M1 Blade Server                N20-B6740-1          2
Cisco     Eight Core Intel(R) Xeon(R) Processor X7560   A01-X0200            8
-         24MB L3 cache, 2.26GHz, 130W, Turbo
Cisco     8GB DDR3-1333MHz RDIMM/PC3-10600/2x4GB Kit    A02-M308GD5-2       32
Cisco     CNA M72KR-Q QLogic Converged Network Adapter  N20-AQ0102           4
Cisco     73GB 6Gb SAS 15K RPM SFF HDD                  A03-D073GC2          8

Database Server
Cisco     Cisco UCS C460 M1 Rack Mount Server           R460-4640810         1
Cisco     Eight Core Intel(R) Xeon(R) Processor X7560   A01-X0200            4
-         24MB L3 cache, 2.26GHz, 130W, Turbo
Cisco     16GB DDR3-1333MHz RDIMM/PC3-10600/2x8GB Kit   A02-M316GD5-2       32
Cisco     Memory Riser Board for C460 M1                RC460-MRB            8
Qlogic    QLE2462,4Gb dual port Fibre Channel Host Bus Adapter N2XX-AQPCI03  1
Intel     Intel Quad port GbE Controller                N2XX-AIPCI02         2
Cisco     73GB 6Gb SAS 15K RPM SFF HDD                  A03-D073GC2          8
EMC       EMC CLARiiON CX4-480                          CX4-480C             1
EMC       VAULT PACK 450GB 15k 4G Drives                V-CX4-45015K         1
EMC       EMC 450 GB 15K 4G FC HDD                      CX-4G15-450        100
-         64 drives in 4 x (8+8) RAID1/0 for data
-         32 drives in 2 x (8+8) RAID1/0 for logs
-         4 drives configured as spares

Blade Server Enclosure
Cisco     UCS 5108 Blade Server Chassis                 N20-C6508            1
Cisco     UCS 2104XP Fabric Extender/4 external 10Gb ports  N20-I6584        2
Cisco     UCS 6120XP 20-port Fabric Interconnect        N10-S6100            2
Cisco     4-port 10 GE/4-port 4Gb FC/Expansion module   N10-E0440            2

Cisco      Cisco Nexus 5020 Switch Bundle               N5020P-6N2248TP-B    1
Cisco      Cisco Nexus 2248 Fabric Extender             N2K-C2248TF-1GE      1
Cisco      Cisco MDS 9134 Multilayer Fiber Switch       DS-C9134AP-K9        1

Oracle     Oracle Linux Basic Support for 3 years                 2

Oracle     Oracle Database 11g Enterprise Edition, Per Processor
-          Unlimited Users for 3 years                                      16*
Oracle     Partitioning, Per Processor, Unlimited Users for 3 years         16*
Oracle     Oracle Premium Support for 3 years                                2

Oracle     Oracle WebLogic Server Standard Edition Release 10.3.4
-          Per Processor for 3 years                                        32*
Oracle     Oracle Premium Support for 3 years                                1

(* 16 = 0.5 * 32 and 32 = 0.5 * 64)  Explanation:  For the purposes of counting
the number of processors which require licensing, a multicore chip with 'n' cores
shall be determined by multiplying 'n' cores by a factor of 0.5).


Other Benchmark Information
  DNS round robin load balancing was used.


General Notes
The only errors in the driver log files were those that are
normally generated by this benchmark.

On the database, incremental checkpointing ensured that no buffer will
remain dirty (in the cache) for more than the allowed time.



For questions about this result, please contact the submitter: Cisco Systems, Inc.
For other inquiries, please contact webmaster@spec.org

Copyright © 2009-2011 Standard Performance Evaluation Corporation

First published at SPEC.org on 09-Mar-2011
