SPECjAppServer2004 Result: Oracle WebLogic Server Standard Edition Release 10.3 on HP ProLiant BL460c Generation 6

SPECjAppServer®2004 Result
Copyright © 2004 Standard Performance Evaluation Corporation

Oracle WebLogic Server Standard Edition Release 10.3 on HP ProLiant BL460c Generation 6

11,067.68 SPECjAppServer2004 JOPS@Standard

Submitter:
HP

SPEC license # 73

Test date:
Jan-2010

Software Products
Oracle WebLogic Server Standard Edition Release 10.3.3
Oracle JRockit(R) 6.0 JDK (R28.0.0) (Linux x86_64)
Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_07
Oracle JDBC Driver 11.1.0.7 (Thin)
Oracle Database Enterprise Edition Release 11.1.0.7

Software Configurations
J2EE Application Server
Emulator SW Config
Database SW Config
Driver SW Config Primary
Driver SW Config Satellite 1 and 2
Driver SW Config Satellite 3

Hardware Systems
J2EE Application Server
Database Server HW
Emulator and Primary Driver HW
Satellite Driver #1 and #2 HW
Satellite Driver #3 HW

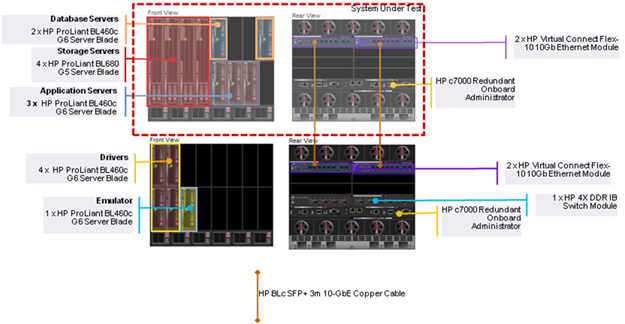

System Configuration Diagram

Benchmark
Modifications
Configuration
Bill of Materials
Other Info
General Notes
Full Disclosure Archive

SUT Configuration

J2EE Server Nodes:	3	DB Server Nodes:	2
J2EE Server CPUs:	24 cores, 6 chips	DB Server CPUs:	16 cores, 4 chips
J2EE Instances:	12	DB Instances:	2

Other SUT Components:

Benchmark Settings

Dealer Injection Rate:	6,610	Ramp Up Time:	600 seconds
# of Dealer Agents:	44	Ramp Down Time:	300 seconds
# of Manufacturing Agents:	38	Steady State Time:	3,600 seconds
DB Load Injection Rate:	7,000	Trigger Time:	1,100 seconds

Detailed Results

Dealer Transaction Mix	Count	Tx. Mix
Purchase	5,983,366	25.00%
Manage	5,982,877	25.00%
Browse	11,963,234	49.99%
Total # Dealer Transactions	23,929,477

Total # Manufacturing Transactions	15,914,174

Response Times	Average	Maximum	90th%	Reqd
Purchase	0.10	14.33	0.10	2.00
Manage	0.09	16.24	0.20	2.00
Browse	0.14	12.40	0.20	2.00
Manufacturing	1.23	8.71	1.75	5.00

Reproducibility Run (SPECjAppServer2004 JOPS)	11,070.94

Oracle WebLogic Server Standard Edition Release 10.3.3

Vendor:	Oracle Corporation	Availability:	Apr-2010
CTS Version:	5.0	Date Passed CTS:	Feb-2007
OS Name:	Oracle Enterprise Linux 5 Update 3 x86_64
EJB Protocol:	RMI/T3

Oracle JRockit(R) 6.0 JDK (R28.0.0) (Linux x86_64)

Vendor:	Oracle Corporation	Availability:	Apr-2010
OS Name:	Oracle Enterprise Linux 5 Update 3 x86_64

Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_07

Vendor:	Sun Microsystems, Inc	Availability:	Jul-2008
OS Name:	Red Hat Enterprise Linux 5 Update 3 x86_64

Oracle JDBC Driver 11.1.0.7 (Thin)

Vendor:	Oracle Corporation	Availability:	Aug-2008
OS Name:	Oracle Enterprise Linux 5 Update 3 x86_64

Oracle Database Enterprise Edition Release 11.1.0.7

Vendor:	Oracle Corporation	Availability:	Aug-2008
OS Name:	Oracle Enterprise Linux 5 Update 2 x86_64

J2EE Application Server

J2EE Product:	Oracle WebLogic Server Standard Edition Release 10.3.3
JVM Product:	Oracle JRockit(R) 6.0 JDK (R28.0.0) (Linux x86_64)
JDBC Product:	Oracle JDBC Driver 11.1.0.7 (Thin)
Hardware:	J2EE Application Server
# of Instances:	12
Interfaces:
	Web Interface for the Dealer Domain
	Web Interface for the Supplier Domain
	EJB Interface for the Dealer Domain
	EJB Interface for the Manufacturing Domain
	EJB Interface for the Supplier Domain

Notes / Tuning Information

-showversion -Xms3640M -Xmx3640M -Xns1700M -XXaggressive -Xgc:genpar
-XXgcthreads=4 -Xlargepages -Xverbose:opt,gcpause,gcreport
-Doracle.jdbc.defaultRowPrefetch=200 -XXCompressedRefs
-Dweblogic.MuxerClass=weblogic.socket.NIOSocketMuxer -Dweblogic.SocketReaders=1
-Dweblogic.management.discover=false -Dweblogic.diagnostics.debug.DebugLogger.DISABLED=true
-Dweblogic.llr.table.specConnectionPool=wl_llr_mt11_1 -Dweblogic.llr.table.specConnectionPool2=wl_llr_mt11_2
-Djavax.xml.parsers.DocumentBuilderFactory=weblogic.xml.jaxp.RegistryDocumentBuilderFactory

Emulator SW Config

JVM Product:	Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_07
Web Product:	Oracle WebLogic Server Standard Edition Release 10.3.3
Hardware:	Emulator and Primary Driver HW
# of Instances:	1

Notes / Tuning Information

-server -Xms20g -Xmx20g -Xmn2g -Xss272k -XX:PermSize=95m -XX:MaxPermSize=512M
-XX:+UseLargePages -XX:+AggressiveOpts -XX:+DisableExplicitGC
-verbosegc -Xloggc:emugc.log -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -XX:+PrintCommandLineFlags
-Dsun.net.inetaddr.ttl=1 -Dnetworkaddress.cache.ttl=1 -Dweblogic.SocketReaders=1
-Djavax.xml.parsers.DocumentBuilderFactory=com.sun.org.apache.xerces.internal.jaxp.DocumentBuilderFactoryImpl
-Dweblogic.management.discover=false -showversion

Database SW Config

DB Product:	Oracle Database Enterprise Edition Release 11.1.0.7
Hardware:	Database Server HW
# of Instances:	1

Notes / Tuning Information

db_name                 = spec
compatible              = 11.1.0.1.0
control_files           = ?/dbs/cntrlspec
cluster_database_instances = 2
cluster_database        = YES
instance_name           = spec
instance_number         = 1
aq_tm_processes         = 0
db_4k_cache_size        = 2000M
db_8k_cache_size        = 10000M
db_block_checking       = FALSE
db_block_checksum       = FALSE
db_block_size           = 2048
db_cache_advice         = OFF
db_cache_size           = 25000M
db_file_multiblock_read_count = 128
db_files                = 256
db_keep_cache_size      = 4000M
db_writer_processes     = 8
dml_locks               = 1000
filesystemio_options    = DirectIO
log_buffer              = 67108864
log_checkpoint_interval = 0
log_checkpoints_to_alert= TRUE
open_cursors            = 2000
parallel_max_servers    = 100
pga_aggregate_target    = 0
processes               = 2000
query_rewrite_enabled   = FALSE
replication_dependency_tracking = FALSE
session_cached_cursors  = 2000
sessions                = 2205
shared_pool_size        = 6000M
statistics_level        = BASIC
timed_statistics        = FALSE
trace_enabled           = FALSE
transactions            = 15000
transactions_per_rollback_segment = 1
undo_management         = AUTO
undo_retention          = 300
undo_tablespace         = undo_ts

Driver SW Config Primary

JVM Product:	Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_07
Hardware:	Emulator and Primary Driver HW
# of Instances:	1

Notes / Tuning Information
-server -Xms2048M -Xmx2048M -XX:+DisableExplicitGC -XX:+UseParallelGC -Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0 -Dweblogic.ThreadPoolSize=32 -Dweblogic.ThreadPoolPercentSocketReaders=80

Driver SW Config Satellite 1 and 2

JVM Product:	Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_07
Hardware:	Satellite Driver #1 and #2 HW
# of Instances:	2

Notes / Tuning Information
-server -Xms2048M -Xmx2048M -XX:+DisableExplicitGC -XX:+UseParallelGC -Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0 -Dweblogic.ThreadPoolSize=32 -Dweblogic.ThreadPoolPercentSocketReaders=80

Driver SW Config Satellite 3

JVM Product:	Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_07
Hardware:	Satellite Driver #3 HW
# of Instances:	1

Notes / Tuning Information
-server -Xms2048M -Xmx2048M -XX:+DisableExplicitGC -XX:+UseParallelGC -Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0 -Dweblogic.ThreadPoolSize=32 -Dweblogic.ThreadPoolPercentSocketReaders=80

J2EE Application Server (SUT hardware)

Hardware Vendor:	HP	OS Vendor:	Oracle Corporation
Model Name:	HP ProLiant BL460c Generation 6	OS Name:	Oracle Enterprise Linux 5 Update 3 x86_64
Processor:	Quad Core Intel(R) Xeon(R) X5570	Filesystem:	ext3
MHz:	2933	Disks:	2x 72GB SAS 15K RPM
# of CPUs:	8 cores, 2 chips, 4 cores/chip (HT)	Network Interface:	1x Embedded Dual Port Flex-10 10GbE Adapter; 1 x HP 4X DDR IB Dual Port Mezzanine HCA;
Memory (MB):	49152	Other Hardware:	See notes
L1 Cache:	32KB(I)+32KB(D) on chip per core	# of Systems:	3
L2 Cache:	256KB on chip per core	H/W Available:	Nov-2009
Other Cache:	8MB(I+D) L3 on chip per chip	OS Available:	Jan-2009

Notes / Tuning Information

Added to /etc/sysctl.conf:
fs.file-max = 262144
kernel.sem = 250 32000 100 128
kernel.shmall = 268435456
kernel.shmmax = 4294967295
net.core.netdev_max_backlog = 400000
net.core.optmem_max = 30000000
net.core.rmem_default = 30000000
net.core.rmem_max = 30000000
net.core.somaxconn = 40000
net.core.wmem_default = 30000000
net.core.wmem_max = 30000000
net.ipv4.ip_local_port_range = 1024 65000
net.ipv4.tcp_fin_timeout = 10
net.ipv4.tcp_max_syn_backlog = 30000
net.ipv4.tcp_max_tw_buckets = 2000000
net.ipv4.tcp_mem = 30000000 30000000 30000000
net.ipv4.tcp_rmem = 30000000 30000000 30000000
net.ipv4.tcp_timestamps = 0
net.ipv4.tcp_wmem = 30000000 30000000 30000000
vm.zone_reclaim_mode=1

For all NICs:
set arp_announce = 2
set arp_ignore = 1
set txqueuelen 60000
enable tso and gso
disable tpa
bind interrupt to a core corresponding to the server instance

Server instances were started using numactl, binding 2 instances per chip.
Stop iptables.
Stop irqbalance.
Configure 10000 hugepages.

Other hardware:
HP Smart Array P400 256MB Battery-backed

Systems were configured with RAID 1 of the 2 disks using the integrated controller for OS,
JMS filestores and server logs.

Database Server HW (SUT hardware)

Hardware Vendor:	HP	OS Vendor:	Oracle Corporation
Model Name:	HP ProLiant BL460c Generation 6	OS Name:	Oracle Enterprise Linux 5 Update 3 x86_64
Processor:	Quad Core Intel(R) Xeon(R) X5570	Filesystem:	ext3
MHz:	2933	Disks:	2x 72GB SAS 15K RPM
# of CPUs:	8 cores, 2 chips, 4 cores/chip (HT)	Network Interface:	1x Embedded Dual Port Flex-10 10GbE Adapter; 1 x HP 4X DDR IB Dual Port Mezzanine HCA
Memory (MB):	98304	Other Hardware:	See notes
L1 Cache:	32KB(I)+32KB(D) on chip per core	# of Systems:	2
L2 Cache:	256KB on chip per core	H/W Available:	Nov-2009
Other Cache:	8MB(I+D) L3 on chip per chip	OS Available:	Jan-2009

Notes / Tuning Information

Added to /etc/sysctl.conf:
fs.aio-max-nr= 1048576
fs.file-max = 6553600
kernel.msgmni = 2878
kernel.sem = 250 32000 100 128
kernel.shmall = 4294967296
kernel.shmmax = 68719476736
net.core.netdev_max_backlog = 400000
net.core.rmem_default = 30000000
net.core.rmem_max = 30000000
net.core.somaxconn = 15000
net.core.wmem_default = 30000000
net.core.wmem_max = 30000000
net.ipv4.ip_local_port_range = 1024 65000
net.ipv4.tcp_max_syn_backlog = 12000
net.ipv4.tcp_mem = 30000000 30000000 30000000
net.ipv4.tcp_rmem = 30000000 30000000 30000000
net.ipv4.tcp_timestamps = 0
net.ipv4.tcp_wmem = 30000000 30000000 30000000

For all NICs:
set arp_announce = 2
set arp_ignore = 1
set txqueuelen 60000
enable tso and gso

Stop iptables.
Stop irqbalance.
Configure 25000 hugepages.

Lgwr nice priority was set to -20
named nice priority was set to -10
The 2 Oracle listners were bound to separate chips.

Other hardware:
1x HP Smart Array P400 256MB Battery-backed write cache
4x HP ProLiant BL680c Generation 5 (G5) Server Blade

Used mdadm to create RAID 1 on each storage blade for data files
One RAID 1 using integrated controller was used for redo log files

Emulator and Primary Driver HW (non-SUT hardware)

Hardware Vendor:	HP	OS Vendor:	Oracle Corporation
Model Name:	HP ProLiant BL460c Generation 6	OS Name:	Oracle Enterprise Linux 5 Update 3 x86_64
Processor:	Quad Core Intel(R) Xeon(R) E5540	Filesystem:	ext3
MHz:	2533	Disks:	2x 72GB SCSI 15K RPM
# of CPUs:	8 cores, 2 chips, 4 cores/chip (HT)	Network Interface:	1x Embedded Dual Port Flex-10 10GbE Adapter
Memory (MB):	49152	Other Hardware:
L1 Cache:	32KB(I)+32KB(D) on chip per core	# of Systems:	1
L2 Cache:	256KB on chip per core	H/W Available:	Nov-2009
Other Cache:	8MB(I+D) L3 on chip per chip	OS Available:	Jan-2009

Notes / Tuning Information

Added to /etc/sysctl.conf:
fs.file-max = 262144
kernel.sem = 250 32000 100 128
net.core.netdev_max_backlog = 400000
net.core.optmem_max = 30000000
net.core.rmem_default = 30000000
net.core.rmem_max = 30000000
net.core.somaxconn = 40000
net.core.wmem_default = 30000000
net.core.wmem_max = 30000000
net.ipv4.ip_local_port_range = 1024 65000
net.ipv4.tcp_fin_timeout = 10
net.ipv4.tcp_max_syn_backlog = 30000
net.ipv4.tcp_max_tw_buckets = 2000000
net.ipv4.tcp_mem = 30000000 30000000 30000000
net.ipv4.tcp_rmem = 30000000 30000000 30000000
net.ipv4.tcp_timestamps = 0
net.ipv4.tcp_wmem = 30000000 30000000 30000000

For all NICs:
set arp_announce = 2
set arp_ignore = 1
set txqueuelen 60000
enable tso and gso

Stop iptables.
Stop irqbalance.

On Emulator HW configure 12000 hugepages.

Satellite Driver #1 and #2 HW (non-SUT hardware)

Hardware Vendor:	HP	OS Vendor:	Oracle
Model Name:	HP ProLiant BL460c Generation 6	OS Name:	Oracle Enterprise Linux 5 Update 3 x86_64
Processor:	Quad Core Intel(R) Xeon(R) 7140	Filesystem:	ext3
MHz:	2266	Disks:	2x 72GB SCSI 15K RPM
# of CPUs:	8 cores, 2 chips, 4 cores/chip (HT)	Network Interface:	1x Embedded Dual Port Flex-10 10GbE Adapter
Memory (MB):	49152	Other Hardware:
L1 Cache:	32KB(I)+32KB(D) on chip per core	# of Systems:	2
L2 Cache:	256KB on chip per core	H/W Available:	Nov-2009
Other Cache:	8MB(I+D) L3 on chip per chip	OS Available:	Jan-2009

Notes / Tuning Information

Added to /etc/sysctl.conf:
fs.file-max = 262144
kernel.sem = 250 32000 100 128
net.core.netdev_max_backlog = 400000
net.core.optmem_max = 30000000
net.core.rmem_default = 30000000
net.core.rmem_max = 30000000
net.core.somaxconn = 40000
net.core.wmem_default = 30000000
net.core.wmem_max = 30000000
net.ipv4.ip_local_port_range = 1024 65000
net.ipv4.tcp_fin_timeout = 10
net.ipv4.tcp_max_syn_backlog = 30000
net.ipv4.tcp_max_tw_buckets = 2000000
net.ipv4.tcp_mem = 30000000 30000000 30000000
net.ipv4.tcp_rmem = 30000000 30000000 30000000
net.ipv4.tcp_timestamps = 0
net.ipv4.tcp_wmem = 30000000 30000000 30000000

For all NICs:
set arp_announce = 2
set arp_ignore = 1
set txqueuelen 60000
enable tso and gso

Stop iptables.
Stop irqbalance.

Satellite Driver #3 HW (non-SUT hardware)

Hardware Vendor:	HP	OS Vendor:	Oracle
Model Name:	HP ProLiant BL460c Generation 6	OS Name:	Oracle Enterprise Linux 5 Update 3 x86_64
Processor:	Quad core Intel(R) Xeon(R) X5570	Filesystem:	ext3
MHz:	2933	Disks:	2x 72GB SCSI 15K RPM
# of CPUs:	8 cores, 2 chips, 4 cores/chip (HT)	Network Interface:	1x Embedded Dual Port Flex-10 10GbE Adapter
Memory (MB):	49152	Other Hardware:
L1 Cache:	32KB(I)+32KB(D) on chip per core	# of Systems:	2
L2 Cache:	256KB on chip per core	H/W Available:	Nov-2009
Other Cache:	8MB(I+D) L3 on chip per chip	OS Available:	Jan-2009

Notes / Tuning Information

Added to /etc/sysctl.conf:
fs.file-max = 262144
kernel.sem = 250 32000 100 128
net.core.netdev_max_backlog = 400000
net.core.optmem_max = 30000000
net.core.rmem_default = 30000000
net.core.rmem_max = 30000000
net.core.somaxconn = 40000
net.core.wmem_default = 30000000
net.core.wmem_max = 30000000
net.ipv4.ip_local_port_range = 1024 65000
net.ipv4.tcp_fin_timeout = 10
net.ipv4.tcp_max_syn_backlog = 30000
net.ipv4.tcp_max_tw_buckets = 2000000
net.ipv4.tcp_mem = 30000000 30000000 30000000
net.ipv4.tcp_rmem = 30000000 30000000 30000000
net.ipv4.tcp_timestamps = 0
net.ipv4.tcp_wmem = 30000000 30000000 30000000

For all NICs:
set arp_announce = 2
set arp_ignore = 1
set txqueuelen 60000
enable tso and gso

Stop iptables.
Stop irqbalance.

Benchmark Modifications

Schema Modifications:

  Tablespace sizes were increased to support the Injection rate. Table and index
  initrans were modified. The C_CUSTOMERINVENTORY, O_ORDERS, O_ORDERLINE, and M_WORKORDER tables were
  horizontally partitioned. C_CUSTOMER, M_PARTS, M_BOM and M_INVENTORY were hash clustered.
  Table locks were disabled during the run for all the tables using ALTER TABLE DISABLE TABLE LOCK.
  Scripts to create the DB are included in the FDA.

Load Program Modifications:

  The load program was not modified.

Benchmark Configuration Information
Isolation Requirement Info: The following Beans were deployed in READ_COMMITTED mode as per the benchmark requirement: Mfg - AssemblyEnt, BomEnt, ComponentEnt, LargeOrderEnt, PartEnt Orders - ItemEnt Supplier - SupplierCompEnt, SupplierEnt All other beans were deployed using pessimistic locking mode such that all selects including finders are issued with a FOR UPDATE clause in select statement: Corp - CustomerEnt, CustomerInventoryEnt Mfg - InventoryEnt, WorkOrderEnt Orders - OrderEnt, OrderLineEnt Supplier - POEnt, POLineEnt, SComponentEnt Util - SequenceEnt The ItemEnt bean was cached for 20 minute intervals by setting the following in bea-orders.xml deployment descriptor: concurrency-strategy to ReadOnly read-timeout-seconds to 1200
Durability Requirement Info: To ensure database durability, RAID 1 was used for the data files and RAID 1 for database redo logs. The application server used RAID 1 to provide durability for server logs and JMS persistence filestores. The RAID controller on the database and the application server machines were configured with Write-Back cache policy supported with battery backup unit on the controller.
Storage Requirement Info: A 75 min run at Injection Rate of 6610 increased storage by 10.0 GB. Extrapolating for 24 hrs we need 191 GB. The system is configured with 1288 GB of durable storage.
Argument Passing Semantics: Oracle WebLogic Server Standard Edition uses pass-by-value as required by the EJB specification.

Bill of Materials

Supplier  Description                                   SKU #              Qty
--------  -------------------------------------------   ----------------   ---

Application Servers
HP        HP ProLiant BL460c G6 Server Blade            507864-B21           3
HP        Quad Core Intel(R) Xeon(R) Processor X5570    507791-L21           6
          8MB L3 cache, 2.93 GHz, 95W, Turbo
HP        HP Smart Array P400 256MB Battery-backed      383280-B21           3
HP        HP 8GB 2Rx4 PC3-8500R-7 Kit                   516423-B21          18
HP        HP 72GB 6G SAS 15K SFF DP ENT HDD             512545-B21           6

Database server
HP        HP ProLiant BL460c G6 Server Blade            507864-B21           2
HP        Quad Core Intel(R) Xeon(R) Processor X5570    507791-L21           4
          8MB L3 cache, 2.93 GHz, 95W, Turbo
HP        HP Smart Array P400 256MB Battery-backed      383280-B21           2
HP        HP 8GB 2Rx4 PC3-8500R-7 Kit                   516423-B21          24
HP        HP 72GB 6G SAS 15K SFF DP ENT HDD             512545-B21           4
HP        HP 4X DDR IB Dual Port Mezzanine HCA          448262-B21           2
          for HP BladeSystem c-Class

Storage Servers
HP        HP ProLiant BL680c Generation 5 (G5)          443527-B21           4
          Server Blade
HP        HP Smart Array P400 256MB Battery-backed      383280-B21           4
          write cache upgrade
HP        Quad Core Intel Xeon E7440                    492345-L21          16
          16 MB L3, 2.40 GHz, 90W
HP        16 GB FBD PC2-5300 2 x 8 GB Dual Rank Kit     413015-B21           8
HP        HP 4X DDR IB Dual Port Mezzanine HCA          448262-B21           4
          for HP BladeSystem c-Class
HP        HP StorageWorks 320GB IO Accelerator          AJ878A               8
          for BladeSystem c-Class
HP        HP 300GB 3G SAS 10K SFF DP HDD                492620-B21           8

Blade Enclosure
HP        HP BladeSystem c7000 Enclosure, SPwith 6      507015-B21           1
          Power Supplies, 10 Fans with 16 ICE Licenses
HP        c7000 Redundant Onboard Administrator Option  412142-B21           1
HP        HP 4X DDR IB Switch Module                    410398-B21           1
          for HP c-Class BladeSystem
HP        Virtual Connect Flex-10 10Gb Ethernet Module  455880-B21           2
          for the c-Class BladeSystem
HP        HP BLc 10Gb LR SFP+ Option                    455883-B21           2
HP        HP BLc SFP+ 3m 10-GbE Copper Cable Option     487655-B21           2

Oracle    Oracle Enterprise Linux Basic Support for 3 years                  9

Oracle    Oracle Database 11g Enterprise Edition, Per Processor
          Unlimited Users for 3 years                                        8*
Oracle    Partitioning, Per Processor, Unlimited Users for 3 years           8*
Oracle    Real Application Cluster, Per Processor,                           8*
          Unlimited Users for 3 years
Oracle    Oracle Premium Support for 3 years                                 3

Oracle    Oracle WebLogic Server Standard Edition Release 10.3,
          Per Processor for 3 years                                          12*
Oracle    Oracle Premium Support for 3 years                                 1


(* 8 = 0.50 * 16 and 12 = 0.50 * 24)  Explanation:  For the purposes of counting
the number of processors which require licensing, an Intel multicore chip with "n"
cores shall be determined by multiplying "n" cores by a factor of 0.50).

Other Benchmark Information

  The xerces implementation version 2.8.1 from xml.apache.org was used as it comes
  packaged with Oracle Weblogic Server Standard Edition.

  Requests were directed to the Appserver instances using DNS round robin, with
  the database node acting as the DNS server.

General Notes

On the database, incremental checkpointing ensured that no buffer will remain
dirty (in the cache) for more than the allowed time.

The only errors in the driver error logs are the application errors generated by
this benchmark.

For questions about this result, please contact the submitter: HP
For other inquiries, please contact webmaster@spec.org

Benchmark run on Tue Jan 26 10:48:53 CST 2010 by SPECjAppServer2004 v1.08
Result submitted on Wed Jan 27 03:33:25 EST 2010
Report generated by SPECjAppServer2004 Reporter v1.03

First published at SPEC.org on 11-Feb-2010
