SPECjbb

SPECjbb2000		SPECjbb2000 = 114892 ops/s
IBM Corporation IBM eServer pSeries 650 Model 6M2
IBM Corporation J2RE 1.4.0 IBM AIX build ca1401-20021031

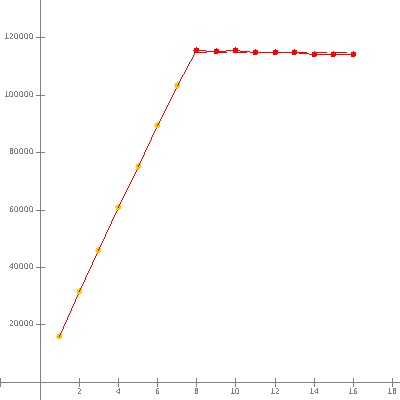

Warehouses	Ops/s	Incl. in metric
1	15812
2	31641
3	45933
4	60820
5	75202
6	89623
7	103325
8	115699	*
9	115404	*
10	115473	*
11	115031	*
12	114770	*
13	114782	*
14	114264	*
15	114378	*
16	114224	*
SPECjbb2000	(from 8 to 16)	114892 ops/s

SPEC license # 11 Tested by: IBM Corporation Test date: Nov 1, 2002

Hardware

Hardware Vendor IBM Corporation

Vendor URL http://www.ibm.com

Model IBM eServer pSeries 650 Model 6M2

Processor POWER4+

MHz 1450

# of Procs 8 cores, 4 chips, 2 cores/chip, 1 chip/SCM

Memory (MB) 16384

Primary cache 64KBI+32KBD

Secondary cache 1536KB(I+D) on chip

Other cache 32MB Unified (off chip)/SCM,4SCM in SUT

Filesystem JFS

Disks 1 x 18.2GB SCSI

Other hardware

Software

Software Vendor IBM Corporation

Vendor URL http://www.ibm.com

Java Precompiler Version

Java Precompiler Command Line

Java Precompiler Way Of Excluding Classes

JVM Version J2RE 1.4.0 IBM AIX build ca1401-20021031

JVM Command Line java -ms2304m -mx2304m -spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 2304

JVM Maximum Heap Memory (MB) 2304

JVM CLASSPATH ./jbb.jar:
./jbb_no_precompile.jar:
./check.jar:
./reporter.jar

JVM BOOTCLASSPATH /java/ca1401-20021031/jre/lib/core.jar:
/java/ca1401-20021031/jre/lib/graphics.jar:
/java/ca1401-20021031/jre/lib/security.jar:
/java/ca1401-20021031/jre/lib/server.jar:
/java/ca1401-20021031/jre/lib/xml.jar:
/java/ca1401-20021031/jre/lib/charsets.jar:
/java/ca1401-20021031/jre/classes

OS Version AIX 5L V5.2 APAR IY35693

System state normal

Other software

Test Information

Tested by IBM Corporation

SPEC license # 11

Test location Austin, TX

Test date Nov 1, 2002

H/w available Dec-2002

JVM available Dec-2002

OS available Dec-2002

Other s/w available

Tuning

Operating system tunings
SPINLOOPTIME=1000
IBM_JAVA_LARGE_PAGE_SIZE=16M
vmo -r -o lgpg_regions=256 -o lgpg_size=16777216
vmtune -S 1
setsched -S rr -P 40 -p $$
schedtune -t 300 -F 1

Notes

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	15812	2304	31.7	<0.01%	<0.01	new_order	824985	69.6	.027
						payment	824988	20.0	.037
						order_status	82499	3.16	.089
						delivery	82499	7.63	.023
						stock_level	82499	13.6	<0.01
2	31641	2304	50.8	2.34%	<0.01	new_order	1650964	138	.039
						payment	1650964	40.0	.038
						order_status	165095	6.22	<0.01
						delivery	165096	15.6	<0.01
						stock_level	165097	28.1	.040
3	45933	2304	70.5	4.33%	<0.01	new_order	2396585	206	.045
						payment	2396586	58.5	.044
						order_status	239659	9.42	<0.01
						delivery	239658	24.5	<0.01
						stock_level	239659	43.6	.045
4	60820	2304	91.3	1.55%	<0.01	new_order	3173435	274	.051
						payment	3173431	77.9	.049
						order_status	317343	12.5	<0.01
						delivery	317341	33.2	<0.01
						stock_level	317345	58.8	.051
5	75202	2304	110	4.76%	<0.01	new_order	3923609	340	.056
						payment	3923603	99.3	.056
						order_status	392361	15.9	<0.01
						delivery	392360	42.2	.056
						stock_level	392359	73.4	.055
6	89623	2304	132	4.03%	<0.01	new_order	4676085	408	.063
						payment	4676078	118	.063
						order_status	467608	18.9	<0.01
						delivery	467607	51.7	<0.01
						stock_level	467607	88.0	.063
7	103325	2304	153	4.60%	<0.01	new_order	5391227	477	.078
						payment	5391222	137	.078
						order_status	539123	22.2	.065
						delivery	539124	61.1	.060
						stock_level	539125	103	.071
8	115699	2304	174	2.50%	.294	new_order	6054239	545	.079
						payment	6054244	157	.078
						order_status	605424	25.7	.079
						delivery	605424	70.8	.077
						stock_level	605422	120	.079
9	115404	2304	189	4.02%	.074	new_order	6025541	606	1.66
						payment	6025529	177	1.31
						order_status	602554	28.5	1.06
						delivery	602553	80.5	.989
						stock_level	602552	139	1.66
10	115473	2304	208	4.95%	.611	new_order	6061500	677	1.90
						payment	6061502	201	1.99
						order_status	606152	31.1	1.44
						delivery	606150	89.3	2.00
						stock_level	606152	153	1.87
11	115031	2304	225	6.97%	1.73	new_order	6105490	769	2.84
						payment	6105496	213	2.17
						order_status	610550	36.5	1.92
						delivery	610549	101	2.13
						stock_level	610550	162	2.47
12	114770	2304	238	9.47%	.151	new_order	5997035	826	2.98
						payment	5997044	248	2.97
						order_status	599705	40.9	2.86
						delivery	599702	94.7	2.02
						stock_level	599707	174	2.11
13	114782	2304	255	9.88%	.412	new_order	6013276	883	2.99
						payment	6013259	273	3.00
						order_status	601329	34.6	2.22
						delivery	601328	112	2.92
						stock_level	601328	172	2.80
14	114264	2304	271	14.3%	.560	new_order	5994982	966	3.00
						payment	5994993	300	3.01
						order_status	599496	39.3	2.91
						delivery	599500	104	3.00
						stock_level	599501	207	3.00
15	114378	2304	292	23.4%	2.32	new_order	6105808	1058	3.01
						payment	6105809	330	3.01
						order_status	610583	52.4	2.99
						delivery	610585	111	3.01
						stock_level	610583	207	3.01
16	114224	2304	311	29.8%	2.45	new_order	6105375	1075	3.01
						payment	6105365	382	3.01
						order_status	610539	44.9	3.01
						delivery	610538	149	3.01
						stock_level	610539	232	3.01
