SPECjbb

SPECjbb2000		SPECjbb2000 = 633106 ops/s
IBM Corporation IBM eServer p5 570
IBM Corporation J2RE 1.4.2 (32-bit) IBM AIX build ca1420-20040623

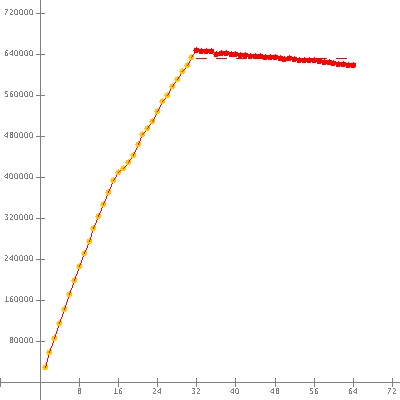

Warehouses	Ops/s	Incl. in metric
1	29145
2	57701
3	86253
4	114770
5	142398
6	171031
7	198739
8	226536
9	250898
10	275034
11	300190
12	324039
13	347487
14	371380
15	394804
16	409690
17	416939
18	429435
19	442892
20	464521
21	483055
22	495553
23	509584
24	528815
25	547378
26	561016
27	577001
28	591317
29	606470
30	618249
31	633860
32	648283	*
33	646371	*
34	646431	*
35	645047	*
36	640247	*
37	641610	*
38	641974	*
39	640828	*
40	639244	*
41	638784	*
42	638074	*
43	637066	*
44	636881	*
45	635254	*
46	634044	*
47	633996	*
48	633848	*
49	632813	*
50	630719	*
51	631928	*
52	629604	*
53	628719	*
54	627487	*
55	628147	*
56	627650	*
57	625587	*
58	624676	*
59	624763	*
60	622868	*
61	620569	*
62	621353	*
63	619064	*
64	618569	*
SPECjbb2000	(from 32 to 64)	633106 ops/s

SPEC license # 11 Tested by: IBM Corporation Test date: Jun 26, 2004

Hardware

Hardware Vendor IBM Corporation

Vendor URL http://www.ibm.com

Model IBM eServer p5 570

Processor POWER5

MHz 1900

# of Procs 16 cores, 8 chips, 2 cores/chip (SMT On)

Memory (MB) 65536 DDR2

Primary cache 64KBI+32KBD

Secondary cache 1920KB unified on-chip

Other cache 36MB unified off-chip/DCM, 8 DCMs/SUT

Filesystem JFS

Disks 1 x 36GB SCSI

Other hardware

Software

Software Vendor IBM Corporation

Vendor URL http://www.ibm.com

Java Precompiler Version

Java Precompiler Command Line

Java Precompiler Way Of Excluding Classes

JVM Version J2RE 1.4.2 (32-bit) IBM AIX build ca1420-20040623

JVM Command Line java -Xlp -Xcompactexplicitgc -Xgcpolicy:subpool -ms3072m -mx3072m spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 3072

JVM Maximum Heap Memory (MB) 3072

JVM CLASSPATH ./jbb.jar:
./jbb_no_precompile.jar:
./check.jar:
./reporter.jar

JVM BOOTCLASSPATH /java/ca1420-20040623/jre/lib/core.jar:
/java/ca1420-20040623/jre/lib/graphics.jar:
/java/ca1420-20040623/jre/lib/security.jar:
/java/ca1420-20040623/jre/lib/server.jar:
/java/ca1420-20040623/jre/lib/xml.jar:
/java/ca1420-20040623/jre/lib/charsets.jar:
/java/ca1420-20040623/jre/classes:
/java/ca1420-20040623/jre/lib/ibmorbapi.jar:
/java/ca1420-20040623/jre/lib/ibmorb.jar:
/java/ca1420-20040623/jre/lib/ibmjsseprovider.jar:
/java/ca1420-20040623/jre/lib/ibmjssefips.jar:
/java/ca1420-20040623/jre/lib/ibmcertpathprovider.jar:
/java/ca1420-20040623/jre/lib/ibmjcefw.jar:
/java/ca1420-20040623/jre/lib/ibmjgssprovider.jar:
/java/ca1420-20040623/jre/lib/ibmpkcs.jar:
/java/ca1420-20040623/jre/lib/ibmjaaslm.jar

OS Version AIX 5L V5.3

System state normal

Other software

Test Information

Tested by IBM Corporation

SPEC license # 11

Test location Austin, TX

Test date Jun 26, 2004

H/w available Aug-2004

JVM available Jul-2004

OS available Aug-2004

Other s/w available

Tuning

Operating system tunings
vmo -o lgpg_regions=192 -o lgpg_size=16777216
vmo -o v_pinshm=1
smttune -s -A -1
setsched -S rr -P 40 -p $$
schedo -o timeslice=300
SPINLOOPTIME=1500

Notes

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	29145	3072	33.7	<0.01%	<0.01	new_order	1520731	67.5	.019
						payment	1520730	25.6	.019
						order_status	152074	2.19	<0.01
						delivery	152073	7.57	<0.01
						stock_level	152073	12.2	<0.01
2	57701	3072	54.4	.270%	<0.01	new_order	3010498	133	.032
						payment	3010494	52.0	.030
						order_status	301050	4.55	<0.01
						delivery	301049	15.3	<0.01
						stock_level	301049	24.6	.032
3	86253	3072	76.2	.325%	<0.01	new_order	4500199	201	.033
						payment	4500208	77.6	.032
						order_status	450020	6.92	.031
						delivery	450021	22.7	<0.01
						stock_level	450021	36.9	.033
4	114770	3072	104	.709%	<0.01	new_order	5988051	268	.037
						payment	5988053	104	.034
						order_status	598804	9.18	<0.01
						delivery	598804	30.3	<0.01
						stock_level	598805	49.5	.038
5	142398	3072	117	.643%	<0.01	new_order	7429483	334	.038
						payment	7429479	131	.037
						order_status	742948	11.7	<0.01
						delivery	742950	36.9	<0.01
						stock_level	742948	61.6	.038
6	171031	3072	144	.401%	<0.01	new_order	8923415	401	.042
						payment	8923412	158	.042
						order_status	892342	14.1	<0.01
						delivery	892340	44.3	<0.01
						stock_level	892342	72.8	.042
7	198739	3072	164	.969%	<0.01	new_order	10369616	467	.046
						payment	10369611	184	.045
						order_status	1036963	16.4	.046
						delivery	1036959	51.7	<0.01
						stock_level	1036959	86.0	.046
8	226536	3072	190	.527%	<0.01	new_order	11819978	534	.050
						payment	11819981	211	.050
						order_status	1182000	18.9	.050
						delivery	1181997	59.6	.045
						stock_level	1181995	98.2	.050
9	250898	3072	209	6.40%	<0.01	new_order	13091326	602	.051
						payment	13091323	235	.051
						order_status	1309133	20.9	.051
						delivery	1309136	68.1	.049
						stock_level	1309133	112	.051
10	275034	3072	232	7.42%	<0.01	new_order	14350057	669	.059
						payment	14350050	260	.059
						order_status	1435006	23.2	.052
						delivery	1435008	76.7	.059
						stock_level	1435006	123	.059
11	300190	3072	252	7.16%	<0.01	new_order	15662238	739	.055
						payment	15662237	282	.055
						order_status	1566222	25.3	.055
						delivery	1566227	85.1	.048
						stock_level	1566222	136	.055
12	324039	3072	273	7.09%	<0.01	new_order	16907657	807	.059
						payment	16907664	308	.100
						order_status	1690767	27.4	.057
						delivery	1690762	93.0	.057
						stock_level	1690769	149	.104
13	347487	3072	294	6.71%	<0.01	new_order	18129780	874	.074
						payment	18129769	331	.061
						order_status	1812978	30.0	.060
						delivery	1812979	102	.060
						stock_level	1812979	163	.061
14	371380	3072	319	5.81%	<0.01	new_order	19376322	939	.064
						payment	19376339	358	.064
						order_status	1937633	31.7	.063
						delivery	1937632	109	.063
						stock_level	1937632	176	.126
15	394804	3072	335	5.93%	<0.01	new_order	20598456	1008	.063
						payment	20598439	383	.108
						order_status	2059844	34.3	.062
						delivery	2059842	118	.062
						stock_level	2059846	187	.063
16	409690	3072	360	14.2%	<0.01	new_order	21375139	1074	.066
						payment	21375134	411	.066
						order_status	2137516	36.8	.060
						delivery	2137511	126	.063
						stock_level	2137516	199	.066
17	416939	3072	382	20.1%	<0.01	new_order	21753342	1138	.070
						payment	21753347	436	.054
						order_status	2175334	39.3	.053
						delivery	2175339	134	.054
						stock_level	2175337	214	.055
18	429435	3072	396	20.0%	<0.01	new_order	22407165	1205	.057
						payment	22407145	464	.057
						order_status	2240714	42.0	.056
						delivery	2240717	141	.055
						stock_level	2240714	225	.057
19	442892	3072	417	20.0%	<0.01	new_order	23107401	1273	.058
						payment	23107405	489	.058
						order_status	2310741	43.4	.055
						delivery	2310742	149	.058
						stock_level	2310740	239	.058
20	464521	3072	443	17.8%	<0.01	new_order	24236102	1334	.058
						payment	24236100	521	.058
						order_status	2423613	46.4	.056
						delivery	2423614	156	.057
						stock_level	2423611	252	.058
21	483055	3072	464	20.4%	<0.01	new_order	25203089	1402	.061
						payment	25203081	546	.061
						order_status	2520304	48.7	.058
						delivery	2520309	164	.061
						stock_level	2520309	264	.061
22	495553	3072	483	16.5%	<0.01	new_order	25855179	1470	.064
						payment	25855174	571	.064
						order_status	2585526	50.6	.063
						delivery	2585518	173	.063
						stock_level	2585515	277	.064
23	509584	3072	505	20.0%	<0.01	new_order	26586964	1537	.067
						payment	26586981	596	.067
						order_status	2658698	53.6	.066
						delivery	2658696	180	.064
						stock_level	2658699	290	.067
24	528815	3072	527	18.3%	<0.01	new_order	27590333	1601	.067
						payment	27590333	621	.067
						order_status	2759037	56.3	.066
						delivery	2759036	188	.065
						stock_level	2759035	305	.067
25	547378	3072	548	13.8%	<0.01	new_order	28560506	1670	.068
						payment	28560537	648	.067
						order_status	2856053	57.5	.066
						delivery	2856052	196	.066
						stock_level	2856055	316	.068
26	561016	3072	571	13.4%	<0.01	new_order	29270629	1735	.097
						payment	29270617	672	.076
						order_status	2927058	60.2	.070
						delivery	2927063	203	.071
						stock_level	2927059	333	.071
27	577001	3072	585	11.4%	<0.01	new_order	30104391	1806	.123
						payment	30104394	696	.073
						order_status	3010434	62.5	.069
						delivery	3010437	211	.070
						stock_level	3010444	343	.072
28	591317	3072	607	10.5%	.064	new_order	30871110	1873	.168
						payment	30871114	723	.151
						order_status	3087116	65.3	.070
						delivery	3087110	219	.070
						stock_level	3087114	355	.159
29	606470	3072	630	9.48%	.050	new_order	31657729	1941	.096
						payment	31657708	749	.136
						order_status	3165771	67.0	.071
						delivery	3165779	228	.074
						stock_level	3165773	368	.160
30	618249	3072	648	8.19%	.083	new_order	32283354	2013	.124
						payment	32283348	773	.077
						order_status	3228337	68.5	.074
						delivery	3228337	234	.075
						stock_level	3228334	379	.137
31	633860	3072	667	7.51%	.031	new_order	33081157	2073	.166
						payment	33081178	801	.077
						order_status	3308116	70.9	.072
						delivery	3308116	242	.077
						stock_level	3308112	394	.142
32	648283	3072	690	3.48%	.033	new_order	33834723	2140	.164
						payment	33834731	824	.146
						order_status	3383475	73.6	.078
						delivery	3383470	252	.078
						stock_level	3383472	408	.165
33	646371	3072	709	21.7%	.999	new_order	34060678	2228	1.97
						payment	34060689	865	1.93
						order_status	3406060	74.3	.501
						delivery	3406065	255	1.63
						stock_level	3406074	432	1.94
34	646431	3072	728	24.7%	.583	new_order	33923275	2278	2.97
						payment	33923293	879	1.93
						order_status	3392328	72.8	.184
						delivery	3392329	254	1.17
						stock_level	3392331	466	1.96
35	645047	3072	747	25.8%	1.24	new_order	34073073	2364	3.07
						payment	34073077	893	1.94
						order_status	3407307	75.9	1.43
						delivery	3407305	267	1.79
						stock_level	3407308	508	3.07
36	640247	3072	764	21.9%	.921	new_order	33711811	2383	3.70
						payment	33711809	967	1.93
						order_status	3371185	78.1	1.13
						delivery	3371174	267	1.92
						stock_level	3371183	512	3.70
37	641610	3072	789	23.2%	1.49	new_order	33972670	2468	3.66
						payment	33972664	978	1.92
						order_status	3397266	80.5	1.15
						delivery	3397270	277	1.89
						stock_level	3397266	536	3.81
38	641974	3072	797	28.6%	1.04	new_order	33844050	2554	4.85
						payment	33844040	967	1.93
						order_status	3384406	80.7	1.52
						delivery	3384405	270	1.91
						stock_level	3384402	578	2.95
39	640828	3072	816	32.8%	.856	new_order	33720682	2612	4.84
						payment	33720667	1004	3.02
						order_status	3372070	79.5	1.60
						delivery	3372063	267	1.67
						stock_level	3372062	591	3.65
40	639244	3072	837	35.2%	1.30	new_order	33785687	2650	3.63
						payment	33785698	1058	2.93
						order_status	3378567	81.1	1.73
						delivery	3378563	291	2.00
						stock_level	3378570	608	3.48
41	638784	3072	858	33.0%	.067	new_order	33350089	2696	3.60
						payment	33350105	1063	2.90
						order_status	3335012	80.3	1.34
						delivery	3335012	268	1.60
						stock_level	3335009	638	3.61
42	638074	3072	878	30.7%	.853	new_order	33574920	2835	3.68
						payment	33574922	1035	3.68
						order_status	3357497	85.1	1.76
						delivery	3357495	273	1.67
						stock_level	3357493	681	3.54
43	637066	3072	889	36.2%	.237	new_order	33316867	2822	3.67
						payment	33316871	1082	3.04
						order_status	3331691	87.2	1.84
						delivery	3331684	296	3.04
						stock_level	3331686	697	4.34
44	636881	3072	909	31.7%	.820	new_order	33501039	2912	3.51
						payment	33501067	1101	3.59
						order_status	3350106	84.5	1.82
						delivery	3350105	282	1.92
						stock_level	3350107	730	3.59
45	635254	3072	930	36.0%	.550	new_order	33325987	2951	4.76
						payment	33325990	1187	4.83
						order_status	3332597	84.3	1.54
						delivery	3332598	290	1.99
						stock_level	3332594	727	3.52
46	634044	3072	943	27.9%	.097	new_order	33112536	3033	3.49
						payment	33112547	1173	2.99
						order_status	3311252	87.9	1.78
						delivery	3311252	284	3.04
						stock_level	3311252	750	3.56
47	633996	3072	958	32.2%	.328	new_order	33186370	3094	4.72
						payment	33186373	1233	3.52
						order_status	3318640	82.7	1.22
						delivery	3318633	288	2.00
						stock_level	3318636	756	4.80
48	633848	3072	982	31.9%	.533	new_order	33246417	3128	4.77
						payment	33246433	1210	4.67
						order_status	3324643	97.3	2.82
						delivery	3324638	297	2.85
						stock_level	3324643	841	4.79
49	632813	3072	1004	30.1%	1.08	new_order	33373465	3191	4.68
						payment	33373459	1311	4.28
						order_status	3337357	87.8	1.78
						delivery	3337345	306	3.40
						stock_level	3337347	879	3.67
50	630719	3072	1018	36.1%	.563	new_order	33092177	3316	5.00
						payment	33092170	1282	3.49
						order_status	3309217	92.7	2.16
						delivery	3309218	288	3.43
						stock_level	3309213	852	4.71
51	631928	3072	1039	41.6%	1.12	new_order	33339100	3276	5.00
						payment	33339133	1387	4.90
						order_status	3333922	90.9	1.76
						delivery	3333917	308	4.57
						stock_level	3333912	915	4.74
52	629604	3072	1061	31.0%	.167	new_order	32903626	3359	4.71
						payment	32903650	1366	4.64
						order_status	3290369	96.6	3.34
						delivery	3290364	296	2.83
						stock_level	3290374	921	4.66
53	628719	3072	1072	40.2%	.827	new_order	33073877	3534	4.70
						payment	33073883	1325	4.04
						order_status	3307383	87.9	1.57
						delivery	3307384	300	2.82
						stock_level	3307386	965	3.27
54	627487	3072	1094	39.3%	.369	new_order	32859310	3528	4.74
						payment	32859314	1423	4.33
						order_status	3285929	87.3	1.70
						delivery	3285927	306	3.48
						stock_level	3285934	948	4.67
55	628147	3072	1111	35.3%	.297	new_order	32870112	3621	6.12
						payment	32870090	1369	4.64
						order_status	3287006	101	3.26
						delivery	3287021	329	4.70
						stock_level	3287010	1037	4.64
56	627650	3072	1125	35.0%	.978	new_order	33067320	3753	7.62
						payment	33067326	1362	4.69
						order_status	3306737	103	3.16
						delivery	3306729	305	3.01
						stock_level	3306733	1068	4.78
57	625587	3072	1147	31.1%	.138	new_order	32684170	3669	6.17
						payment	32684207	1483	9.19
						order_status	3268420	104	6.16
						delivery	3268424	344	3.00
						stock_level	3268427	1063	5.22
58	624676	3072	1168	37.4%	.550	new_order	32771043	3688	6.72
						payment	32771056	1525	6.18
						order_status	3277104	87.8	1.94
						delivery	3277104	321	3.24
						stock_level	3277103	1067	5.10
59	624763	3072	1184	32.4%	.716	new_order	32829651	3781	4.71
						payment	32829694	1574	5.00
						order_status	3282969	95.0	2.89
						delivery	3282967	323	3.20
						stock_level	3282976	1127	6.07
60	622868	3072	1200	36.8%	<0.01	new_order	32499883	3982	6.22
						payment	32499899	1482	6.66
						order_status	3249986	99.1	3.16
						delivery	3249989	320	4.55
						stock_level	3249988	1095	6.03
61	620569	3072	1216	34.6%	.650	new_order	32587985	3919	6.19
						payment	32587991	1591	4.67
						order_status	3258790	92.7	1.59
						delivery	3258797	302	3.63
						stock_level	3258799	1183	6.71
62	621353	3072	1229	42.6%	.976	new_order	32734753	4080	9.99
						payment	32734777	1613	8.52
						order_status	3273472	100	2.75
						delivery	3273476	322	4.51
						stock_level	3273483	1129	7.39
63	619064	3072	1252	36.7%	.306	new_order	32397800	3987	7.64
						payment	32397786	1771	7.44
						order_status	3239777	98.2	1.65
						delivery	3239783	327	4.03
						stock_level	3239786	1183	7.62
64	618569	3072	1270	32.2%	.663	new_order	32486956	4189	9.09
						payment	32486965	1700	7.35
						order_status	3248701	103	2.97
						delivery	3248699	333	3.00
						stock_level	3248701	1195	5.89
