SPECjbb2005 SPECjbb2005 bops = 92120, SPECjbb2005 bops/JVM = 92120
SuperMicro, Inc. X7DBE
IBM Corporation IBM J9 VM (build 2.3, J2RE 1.5.0 IBM J9 2.3 Windows Server 2003 x86-32 j9vmwi3223-20060919 (JIT enabled)

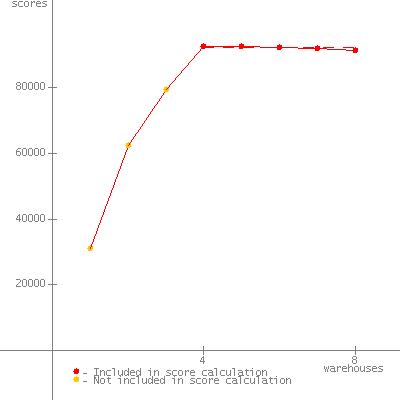

Warehouses SPECjbb2005 bops Incl. in metric
1 31023
2 62327
3 79454
4 92657 *
5 92441 *
6 92237 *
7 91949 *
8 91317 *
SPECjbb2005 (from 4 to 8) 92120 SPECjbb2005 bops
SPEC license # 49 Tested by: Advanced Micro Devices Test date: Oct 11, 2006

Hardware
Hardware Vendor SuperMicro, Inc.
Vendor URL http://www.supermicro.com/
Model X7DBE
Processor Intel Xeon 5160
MHz 3000
# of Chips 2
# of Cores 4
# of Cores/Chip 2
HW Threading Enabled? No
Procs Avail to Java 4
Memory (MB) 8192
Memory Details 8 x 1GB DDR2-667 CL5 FBDIMM
Primary cache 32KB(I) + 32KB(D) on chip, per core
Secondary cache 4096KB(I+D) on chip, shared
Other cache
Filesystem NTFS
Disks 1 x 250GB SATA
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com/
JVM Version IBM J9 VM (build 2.3, J2RE 1.5.0 IBM J9 2.3 Windows Server 2003 x86-32 j9vmwi3223-20060919 (JIT enabled)
JVM Command Line start /B %JAVA% -Xgcpolicy:gencon -Xjvm:perf -XlockReservation -Xlp -Xmn1000m -Xms1500m -Xmx1500m -Xnoloa -XtlhPrefetch spec.jbb.JBBmain -propfile %PROPFILE%
JVM Initial Heap Memory (MB) 1536
JVM Maximum Heap Memory (MB) 1536
JVM Address bits 32
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\java\IBM32-sdk-50-2.0.2\jre\bin\perf\jclSC150\vm.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\core.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\charsets.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\graphics.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\security.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\ibmpkcs.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\ibmorb.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\ibmcfw.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\ibmorbapi.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\ibmjcefw.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\ibmjgssprovider.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\ibmjsseprovider2.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\ibmjaaslm.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\ibmjaasactivelm.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\ibmcertpathprovider.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\server.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\xml.jar
OS Version Microsoft Windows Server 2003 Enterprise x64 Edition SP1 (64-bit)
Other software
Test Information
Tested by Advanced Micro Devices
SPEC license # 49
Test location Austin, TX
Test date Oct 11, 2006
H/w available Jul-2006
JVM available Oct-2006
OS available Mar-2005
Other s/w available
AOT Compilation

Tuning
BIOS
Hardware Prefetcher : [Enabled] (Default)
OS
Using the local Security Settings console, "Lock pages in memory" was enabled for the user running the benchmark.
Notes
SUT requires a SuperMicro X7DBE motherboard (BIOS rev 1.1a), 8GB of PC2-5300 memory (8 x 1GB CL5 FBDIMMs), a Western Digital WD2500 SATA drive, a SSI EEB 3.51 specification compliant form-factor case, and a Zippy/Emacs 700 watt PSL-6701P Power Supply.

Details of Runs

Warehouses Thrput Total heap (MB) Thread spread % % > 120s transaction type Count Time (in seconds)
SizeUsed totalmax
1 31023 1500 797 <0.01% <0.01 new_order 409553 10.7 .032
payment 282316 4.98 .063
order_status 28231 .466 .016
delivery 28231 6.06 .016
stock_level 28232 1.04 .016
cust_report 155074 5.79 .032
2 62327 1500 634 .366% <0.01 new_order 822650 21.3 .078
payment 567193 8.66 .047
order_status 56719 1.20 .016
delivery 56718 13.3 .063
stock_level 56720 1.68 .016
cust_report 311728 12.2 .063
3 79454 1500 1049 5.01% <0.01 new_order 1048561 29.8 .063
payment 723077 10.9 .063
order_status 72308 1.92 .062
delivery 72310 26.3 .062
stock_level 72307 3.33 .016
cust_report 397596 15.7 .063
4 92657 1500 677 2.94% .013 new_order 9771580 293 .047
payment 6739590 112 .047
order_status 673960 17.9 .047
delivery 673960 319 .047
stock_level 673957 31.0 .047
cust_report 3707600 164 .047
5 92441 1500 847 7.61% .163 new_order 9764990 373 .375
payment 6733889 138 .484
order_status 673388 25.3 .438
delivery 673388 394 .391
stock_level 673389 40.3 .266
cust_report 3702786 204 .313
6 92237 1500 949 23.8% .072 new_order 9734434 445 .500
payment 6712973 179 .765
order_status 671296 25.6 .390
delivery 671296 467 .516
stock_level 671297 47.8 .391
cust_report 3691512 244 .797
7 91949 1500 314 23.9% .195 new_order 9715554 512 1.42
payment 6700241 209 .578
order_status 670022 34.0 .453
delivery 670023 554 .812
stock_level 670025 57.3 .484
cust_report 3684921 283 .844
8 91317 1500 344 23.0% .137 new_order 9643701 595 1.00
payment 6650304 226 1.00
order_status 665029 39.9 .844
delivery 665031 613 .813
stock_level 665028 61.9 1.00
cust_report 3656897 332 .953

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005 SPEC. All rights reserved

First published at SPEC.org on 08-Nov-2006
