SPECjbb2005 SPECjbb2005 bops = 127395, SPECjbb2005 bops/JVM = 127395
Fujitsu Siemens Computers PRIMERGY RX300 S3, Intel Xeon processor 5160, 3.0 GHz
BEA Systems, Inc BEA JRockit(R) 5.0 P27.1.0 (build P27.1.0-7-71488-1.5.0_08-20061103-1228-windows-x86_64)

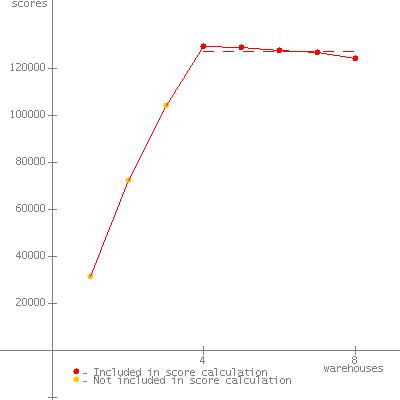

Warehouses SPECjbb2005 bops Incl. in metric
1 31522
2 72350
3 104055
4 129464 *
5 128726 *
6 127641 *
7 126908 *
8 124235 *
SPECjbb2005 (from 4 to 8) 127395 SPECjbb2005 bops
SPEC license # 22 Tested by: Fujitsu Siemens Computers Test date: Nov 7, 2006

Hardware
Hardware Vendor Fujitsu Siemens Computers
Vendor URL http://www.fujitsu-siemens.com
Model PRIMERGY RX300 S3, Intel Xeon processor 5160, 3.0 GHz
Processor Intel Xeon processor 5160 (3.0 GHz, 4MB L2, 1333 MHz system bus)
MHz 3000
# of Chips 2
# of Cores 4
# of Cores/Chip 2
HW Threading Enabled? N/A
Procs Avail to Java 4
Memory (MB) 8192
Memory Details 8x1GB DDR2-RAM PC2-5300F (CAS 5-5-5)
Primary cache 32KB(I) + 32KB(D) on chip, per core
Secondary cache 4096KB(I+D) on chip, per chip
Other cache N/A
Filesystem NTFS
Disks Western Digital WD1600JS (160 GB, SATA, 7.2 krpm)
Other hardware N/A
Software
Software Vendor BEA Systems, Inc
Vendor URL http://www.bea.com
JVM Version BEA JRockit(R) 5.0 P27.1.0 (build P27.1.0-7-71488-1.5.0_08-20061103-1228-windows-x86_64)
JVM Command Line java -Xms3700m -Xmx3700m -XXaggressive -Xlargepages -XXlazyUnlocking -Xgc:genpar -Xns3200m -XXtlasize:min=16k,preferred=64k spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 3700
JVM Maximum Heap Memory (MB) 3700
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\java\jrockit-jdk1.5.0_08\jre\bin\jrockit\jrockit1.5.0.jar;
C:\Program Files\java\jrockit-jdk1.5.0_08\jre\bin\jrockit\managementapi.jar;
C:\Program Files\java\jrockit-jdk1.5.0_08\jre\bin\jrockit\jmxmapi.jar;
C:\Program Files\java\jrockit-jdk1.5.0_08\jre\bin\jrockit\rmp.jar;
C:\Program Files\java\jrockit-jdk1.5.0_08\jre\lib\rt.jar;
C:\Program Files\java\jrockit-jdk1.5.0_08\jre\lib\i18n.jar;
C:\Program Files\java\jrockit-jdk1.5.0_08\jre\lib\sunrsasign.jar;
C:\Program Files\java\jrockit-jdk1.5.0_08\jre\lib\jsse.jar;
C:\Program Files\java\jrockit-jdk1.5.0_08\jre\lib\jce.jar;
C:\Program Files\java\jrockit-jdk1.5.0_08\jre\lib\charsets.jar;
C:\Program Files\java\jrockit-jdk1.5.0_08\jre\classes
OS Version Microsoft Windows Server 2003 Enterprise x64 Edition + SP1 (64-bit)
Other software N/A
Test Information
Tested by Fujitsu Siemens Computers
SPEC license # 22
Test location Paderborn, Germany
Test date Nov 7, 2006
H/w available Jul-2006
JVM available Feb-2007
OS available May-2005
Other s/w available N/A
AOT Compilation
N/A
Tuning
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Notes
  • This result was measured on the PRIMERGY TX300 S3. The PRIMERGY TX300 S3 and the PRIMERGY RX300 S3 are electronically equivalent.
  • turned off 'Hardware Prefetcher' in BIOS
  • turned off 'Adjacent Sector Prefetcher' in BIOS
  • Command line options are described at:
    http://edocs.bea.com/jrockit/jrdocs/refman/intro.html

Details of Runs

Warehouses Thrput Total heap (MB) Thread spread % % > 120s transaction type Count Time (in seconds)
SizeUsed totalmax
1 31522 3700 2290 <0.01% <0.01 new_order 415656 13.7 .032
payment 286566 5.43 .265
order_status 28656 .562 .016
delivery 28657 4.49 .016
stock_level 28657 .700 .016
cust_report 157478 4.17 .016
2 72350 3700 3376 .910% <0.01 new_order 953785 25.0 .109
payment 658077 9.69 .062
order_status 65808 1.08 .016
delivery 65808 10.8 .016
stock_level 65809 1.14 .016
cust_report 362362 10.4 .032
3 104055 3700 1626 2.94% <0.01 new_order 1371526 37.8 .125
payment 945955 14.9 .125
order_status 94594 1.65 .016
delivery 94596 17.0 .031
stock_level 94595 2.21 .016
cust_report 520382 13.7 .032
4 129464 3700 1454 1.92% .026 new_order 13657564 390 .156
payment 9417992 138 .078
order_status 941799 16.5 .047
delivery 941800 208 .187
stock_level 941800 23.3 .047
cust_report 5178422 156 .171
5 128726 3700 2856 25.0% .059 new_order 13583108 489 .391
payment 9367402 176 .750
order_status 936742 22.2 .234
delivery 936739 255 .391
stock_level 936740 29.4 .375
cust_report 5151707 194 .391
6 127641 3700 2566 32.3% <0.01 new_order 13458100 581 .797
payment 9283019 223 1.48
order_status 928303 25.6 .703
delivery 928301 299 .766
stock_level 928301 33.9 .594
cust_report 5107934 238 1.28
7 126908 3700 1234 26.5% <0.01 new_order 13381472 672 1.33
payment 9229653 274 1.50
order_status 922963 28.5 1.78
delivery 922962 359 3.89
stock_level 922961 41.1 .969
cust_report 5077804 262 .812
8 124235 3700 1033 15.9% <0.01 new_order 13100705 758 1.42
payment 9035272 321 1.69
order_status 903527 31.8 .922
delivery 903528 393 2.84
stock_level 903525 48.3 .938
cust_report 4969852 320 1.16

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005 SPEC. All rights reserved

First published at SPEC.org on 22-Nov-2006
