SPECjbb2005 SPECjbb2005 bops = 130589, SPECjbb2005 bops/JVM = 130589
Dell PowerEdge 2950
BEA Systems, Inc. BEA JRockit(R) 5.0 P27.1.0 (build P27.1.0-7-71488-1.5.0_08-20061103-1228-windows-x86_64)

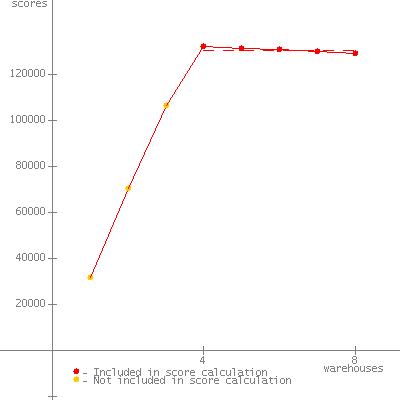

Warehouses SPECjbb2005 bops Incl. in metric
1 31861
2 70652
3 106534
4 132278 *
5 131073 *
6 130780 *
7 129751 *
8 129063 *
SPECjbb2005 (from 4 to 8) 130589 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Test date: Nov 7, 2006

Hardware
Hardware Vendor Dell
Vendor URL http://www.dell.com/
Model PowerEdge 2950
Processor Intel Xeon processor 5160 (1333MHz system bus)
MHz 3000
# of Chips 2
# of Cores 4
# of Cores/Chip 2
HW Threading Enabled? No
Procs Avail to Java 4
Memory (MB) 16384
Memory Details 4 x 4GB DDR2-667 FBDIMM
Primary cache 32KB(I) + 32KB(D) on chip, per core
Secondary cache 4096KB(I+D) on chip, shared
Other cache n/a
Filesystem NTFS
Disks 1 x 80GB SATA
Other hardware none
Software
Software Vendor BEA Systems, Inc.
Vendor URL http://www.bea.com/
JVM Version BEA JRockit(R) 5.0 P27.1.0 (build P27.1.0-7-71488-1.5.0_08-20061103-1228-windows-x86_64)
JVM Command Line java -Xmx3700m -Xms3700m -Xns3100m -XXaggressive -Xlargepages -XXlazyunlocking -Xgc:genpar -Xxtlasize:min=16k,preferred=64k spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 3700
JVM Maximum Heap Memory (MB) 3700
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\jrockit1.5.0.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\managementapi.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\jmxmapi.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\rmp.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\rt.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\i18n.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\sunrsasign.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\jsse.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\jce.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\charsets.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\classes
OS Version Microsoft Windows Server 2003 Enterprise x64 Edition + SP1 (64-bit)
Other software none
Test Information
Tested by Dell
SPEC license # 55
Test location Round Rock, TX
Test date Nov 7, 2006
H/w available Jul-2006
JVM available Feb-2007
OS available Mar-2005
Other s/w available n/a
AOT Compilation

Tuning
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Notes
  • Disabled 'Hardware Prefetcher' in BIOS
  • Disabled 'Adjacent Cache Line Prefetch' in BIOS
  • Command line options are described in: DELL-20061108.txt

Details of Runs

Warehouses Thrput Total heap (MB) Thread spread % % > 120s transaction type Count Time (in seconds)
SizeUsed totalmax
1 31861 3700 2520 <0.01% <0.01 new_order 420247 13.7 .328
payment 289792 5.38 .016
order_status 28979 .612 .016
delivery 28978 3.90 .016
stock_level 28978 .654 .016
cust_report 159343 4.89 .016
2 70652 3700 1312 1.28% <0.01 new_order 931425 24.9 .125
payment 642290 11.0 .047
order_status 64228 1.09 .125
delivery 64230 10.3 .094
stock_level 64230 1.43 .016
cust_report 353161 9.35 .032
3 106534 3700 3053 3.40% <0.01 new_order 1405333 36.3 .125
payment 969010 14.2 .047
order_status 96901 1.49 .016
delivery 96901 17.7 .125
stock_level 96900 2.41 .031
cust_report 532693 15.1 .032
4 132278 3700 2753 .909% .072 new_order 13958942 387 .110
payment 9627101 137 .110
order_status 962710 17.3 .047
delivery 962709 210 .078
stock_level 962709 24.0 .047
cust_report 5295255 158 .047
5 131073 3700 2871 21.0% .013 new_order 13824175 479 .391
payment 9533838 180 .766
order_status 953384 20.7 .375
delivery 953383 258 .578
stock_level 953385 30.1 .375
cust_report 5243507 197 .391
6 130780 3700 2755 29.7% <0.01 new_order 13793401 564 .984
payment 9511913 221 .750
order_status 951192 28.2 1.41
delivery 951190 307 .765
stock_level 951191 37.8 .594
cust_report 5230438 243 1.08
7 129751 3700 1238 22.8% <0.01 new_order 13683313 652 1.24
payment 9436468 265 1.23
order_status 943647 33.6 1.67
delivery 943645 349 3.11
stock_level 943647 43.7 .766
cust_report 5189618 291 .953
8 129063 3700 3654 10.9% <0.01 new_order 13611953 752 1.13
payment 9387005 318 1.17
order_status 938701 35.9 1.14
delivery 938698 396 3.72
stock_level 938701 49.4 1.00
cust_report 5162050 320 2.06

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005 SPEC. All rights reserved

First published at SPEC.org on 22-Nov-2006
