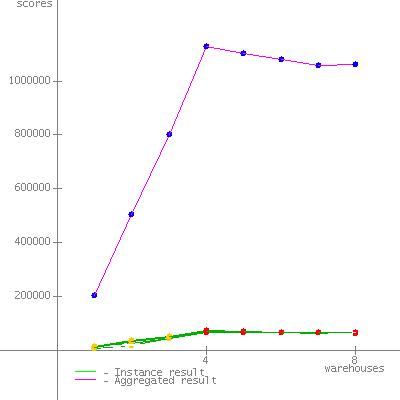

SPECjbb2005 SPECjbb2005 bops = 1085985, SPECjbb2005 bops/JVM = 67874
SGI Altix 4700 (16 Blade/32P DC)
BEA Systems BEA JRockit(R) 5.0 P27.1.0-12 (build P27.1.0-12-72483-1.5.0_09-20061117-1835-linux-ia64)

JVM run JVM Scores
167063
268063
368350
467861
569112
667540
767879
868326
968388
1067773
1166205
1267889
1367878
1467234
1567962
1668462
SPECjbb2005 bops = 1085985, SPECjbb2005 bops/JVM = 67874

Hardware
Hardware Vendor SGI
Vendor URL http://www.sgi.com
Model Altix 4700 (16 Blade/32P DC)
Processor Intel DC Itanium2 Processor 9050 1.6 Ghz
MHz 1600
# of Chips 32
# of Cores 64
# of Cores/Chip 2
HW Threading Enabled? No
Procs Avail to Java 64
Memory (MB) 131072
Memory Details 1GB ECC DDR2 DIMMs (PC2-3200R) spread uniformly over 16 compute blades
Primary cache 16kBI + 16kBD on chip per core
Secondary cache 1024kBI + 256kBD on chip per core
Other cache 12MB (I+D) on chip per core
Filesystem xfs
Disks 1 x 146 GB SCSI (OS + classes)
Other hardware
Software
Software Vendor BEA Systems
Vendor URL http://www.bea.com
JVM Version BEA JRockit(R) 5.0 P27.1.0-12 (build P27.1.0-12-72483-1.5.0_09-20061117-1835-linux-ia64)
JVM Command Line numactl --cpubind=$node --localalloc java -Xms3800m -Xmx3800m -Xns3200m -XXaggressive -Xgc:genpar -XXtlasize:512k -XXhpm:enable -cp jbb.jar:check.jar spec.jbb.JBBmain -propfile SPECjbb.props -id $id
JVM Initial Heap Memory (MB) 3800
JVM Maximum Heap Memory (MB) 3800
JVM Address bits 64
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /tmp/jrockit-jdk1.5.0_09/jre/lib/ia64/jrockit/jrockit1.5.0.jar:
/tmp/jrockit-jdk1.5.0_09/jre/lib/ia64/jrockit/managementapi.jar:
/tmp/jrockit-jdk1.5.0_09/jre/lib/ia64/jrockit/jmxmapi.jar:
/tmp/jrockit-jdk1.5.0_09/jre/lib/ia64/jrockit/rmp.jar:
/tmp/jrockit-jdk1.5.0_09/jre/lib/rt.jar:
/tmp/jrockit-jdk1.5.0_09/jre/lib/i18n.jar:
/tmp/jrockit-jdk1.5.0_09/jre/lib/sunrsasign.jar:
/tmp/jrockit-jdk1.5.0_09/jre/lib/jsse.jar:
/tmp/jrockit-jdk1.5.0_09/jre/lib/jce.jar:
/tmp/jrockit-jdk1.5.0_09/jre/lib/charsets.jar:
/tmp/jrockit-jdk1.5.0_09/jre/classes
OS Version SuSE Linux Enterprise Server 10 (2.6.16.21-0.25-default)
Other software
Test Information
Tested by SGI
SPEC license # 4
Test location Mountain View, CA
Test date Nov 19, 2006
H/w available July-2006
JVM available February-2007
OS available Oct-2006
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • mount -t hugetlbfs nodev /mnt/hugepages
  • echo 320 > /proc/sys/vm/nr_hugepages
Notes
Command line options are described at http://e-docs.bea.com/jrockit/jrdocs/refman/index.html
System configured to use one JVM per NUMA node (4 cores).


JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 15471
2 34884
3 52364
4 68381 *
5 67594 *
6 66510 *
7 66185 *
8 66644 *
SPECjbb2005 (from 4 to 8) 67063 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Nov 19, 2006

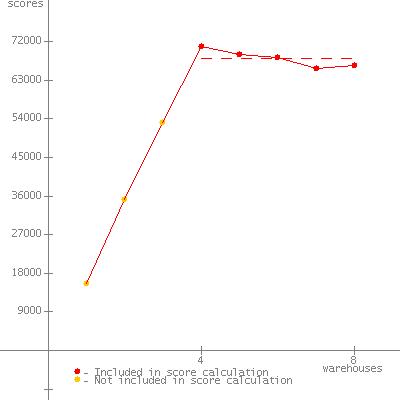

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 15614
2 35304
3 53068
4 70914 *
5 68986 *
6 68307 *
7 65668 *
8 66439 *
SPECjbb2005 (from 4 to 8) 68063 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Nov 19, 2006

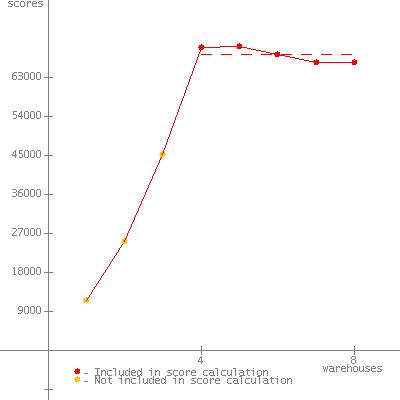

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 11571
2 25250
3 45301
4 69946 *
5 70321 *
6 68499 *
7 66486 *
8 66498 *
SPECjbb2005 (from 4 to 8) 68350 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Nov 19, 2006

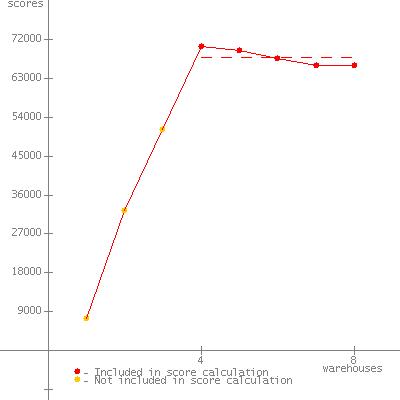

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 7529
2 32503
3 51244
4 70453 *
5 69403 *
6 67627 *
7 65950 *
8 65871 *
SPECjbb2005 (from 4 to 8) 67861 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Nov 19, 2006


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 16117
2 37380
3 52573
4 72998 *
5 69781 *
6 68711 *
7 66933 *
8 67139 *
SPECjbb2005 (from 4 to 8) 69112 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Nov 19, 2006

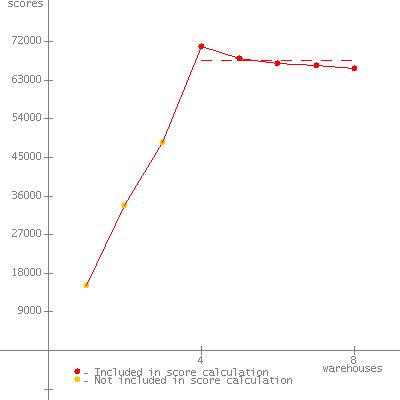

JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 15183
2 33813
3 48465
4 70898 *
5 67923 *
6 66944 *
7 66295 *
8 65640 *
SPECjbb2005 (from 4 to 8) 67540 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Nov 19, 2006


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 7563
2 17203
3 43422
4 69718 *
5 68213 *
6 67375 *
7 66804 *
8 67283 *
SPECjbb2005 (from 4 to 8) 67879 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Nov 19, 2006


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 16008
2 36039
3 51987
4 71190 *
5 69265 *
6 68175 *
7 66482 *
8 66514 *
SPECjbb2005 (from 4 to 8) 68326 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Nov 19, 2006


JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 16067
2 36855
3 52767
4 71286 *
5 69602 *
6 67521 *
7 67073 *
8 66456 *
SPECjbb2005 (from 4 to 8) 68388 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Nov 19, 2006


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 7469
2 33971
3 50410
4 70262 *
5 69321 *
6 66992 *
7 65968 *
8 66324 *
SPECjbb2005 (from 4 to 8) 67773 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Nov 19, 2006

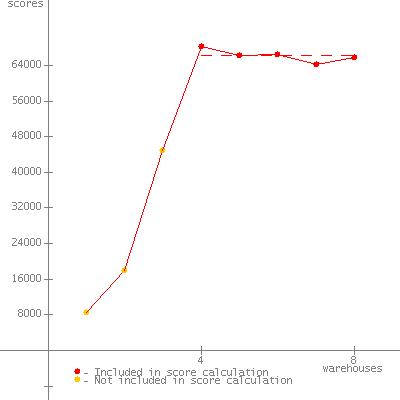

JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 8595
2 17973
3 44860
4 68311 *
5 66169 *
6 66430 *
7 64251 *
8 65862 *
SPECjbb2005 (from 4 to 8) 66205 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Nov 19, 2006


JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 15947
2 36113
3 52810
4 71140 *
5 69579 *
6 67086 *
7 66004 *
8 65635 *
SPECjbb2005 (from 4 to 8) 67889 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Nov 19, 2006


JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 15745
2 37075
3 52732
4 71280 *
5 69001 *
6 66992 *
7 66127 *
8 65991 *
SPECjbb2005 (from 4 to 8) 67878 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Nov 19, 2006


JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 7535
2 18805
3 45496
4 69973 *
5 68039 *
6 67735 *
7 65690 *
8 64734 *
SPECjbb2005 (from 4 to 8) 67234 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Nov 19, 2006


JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 16142
2 35924
3 52538
4 69896 *
5 69529 *
6 67677 *
7 65983 *
8 66728 *
SPECjbb2005 (from 4 to 8) 67962 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Nov 19, 2006


JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 11709
2 35504
3 53100
4 72210 *
5 69163 *
6 68094 *
7 66452 *
8 66393 *
SPECjbb2005 (from 4 to 8) 68462 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Nov 19, 2006

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005 SPEC. All rights reserved

First published at SPEC.org on 06-Dec-2006
