SPECjbb2005 SPECjbb2005 bops = 1331641, SPECjbb2005 bops/JVM = 83228
IBM Corporation IBM Power 780 (3.86 GHz, 16 core)
IBM Corporation JRE 1.6.0 (32-bit) IBM J9 2.4 AIX [build jvmap3260sr7-20091214_49398(SR7)]

JVM run JVM Scores
184049
283206
384140
482164
583504
683504
782842
882511
983118
1082058
1183069
1282832
1383330
1483267
1584117
1683930
SPECjbb2005 bops = 1331641, SPECjbb2005 bops/JVM = 83228

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM Power 780 (3.86 GHz, 16 core)
Processor POWER7 (Intelligent Energy Optimization up to 3.94 GHz)
MHz 3860
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 64
Memory (MB) 131072
Memory Details 16 x 8GB DDR3 1066 MHz
Primary cache 32 KB I + 32 KB D on chip per core
Secondary cache 256KB I+D on chip per core
Other cache 4MB I+D on chip per core
Filesystem AIX/JFS2
Disks 1 x 146GB SAS 15K RPM
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version JRE 1.6.0 (32-bit) IBM J9 2.4 AIX [build jvmap3260sr7-20091214_49398(SR7)]
JVM Command Line execrset -c processor_set_number -e java -Xlp -Xgcpolicy:gencon -Xms2560m -Xmx2560m -Xmn2048m -Xaggressive -XtlhPrefetch -XlockReservation -Xgcthreads4 -Xnoloa spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 2560
JVM Maximum Heap Memory (MB) 2560
JVM Address bits 32
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /spec/sr7/jre/lib/vm.jar:
/spec/sr7/jre/lib/annotation.jar:
/spec/sr7/jre/lib/beans.jar:
/spec/sr7/jre/lib/java.util.jar:
/spec/sr7/jre/lib/jndi.jar:
/spec/sr7/jre/lib/logging.jar:
/spec/sr7/jre/lib/security.jar:
/spec/sr7/jre/lib/sql.jar:
/spec/sr7/jre/lib/ibmorb.jar:
/spec/sr7/jre/lib/ibmorbapi.jar:
/spec/sr7/jre/lib/ibmcfw.jar:
/spec/sr7/jre/lib/rt.jar:
/spec/sr7/jre/lib/charsets.jar:
/spec/sr7/jre/lib/resources.jar:
/spec/sr7/jre/lib/ibmpkcs.jar:
/spec/sr7/jre/lib/ibmcertpathfw.jar:
/spec/sr7/jre/lib/ibmjgssfw.jar:
/spec/sr7/jre/lib/ibmjssefw.jar:
/spec/sr7/jre/lib/ibmsaslfw.jar:
/spec/sr7/jre/lib/ibmjcefw.jar:
/spec/sr7/jre/lib/ibmjgssprovider.jar:
/spec/sr7/jre/lib/ibmjsseprovider2.jar:
/spec/sr7/jre/lib/ibmcertpathprovider.jar:
/spec/sr7/jre/lib/ibmxmlcrypto.jar:
/spec/sr7/jre/lib/management-agent.jar:
/spec/sr7/jre/lib/xml.jar:
/spec/sr7/jre/lib/jlm.jar:
/spec/sr7/jre/lib/javascript.jar
OS Version IBM AIX V6.1 with the 6100-04 Technology Level and Service Pack 3
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Austin, TX
Test date Mar 23, 2010
H/w available Mar-2010
JVM available Dec-2009
OS available Mar-2010
Other s/w available
AOT Compilation

Tuning
Operating system tunings&
  • vmo -o lgpg_regions=6144 -o lgpg_size=16777216 -o v_pinshm=1
  • dscrctl -n -s 1
  • MEMORY_AFFINITY=MCM
Notes
  • 16 JVMs were run in processor sets each containing 1 core
  • IBM Systems Director is required to set the Intelligent Optimization HW mode


JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35520
2 69246
3 72780
4 85293 *
5 84445 *
6 83962 *
7 83505 *
8 83040 *
SPECjbb2005 (from 4 to 8) 84049 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38630
2 69446
3 72820
4 84338 *
5 83770 *
6 83073 *
7 82555 *
8 82297 *
SPECjbb2005 (from 4 to 8) 83206 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36430
2 72277
3 72393
4 85329 *
5 84565 *
6 83909 *
7 83631 *
8 83267 *
SPECjbb2005 (from 4 to 8) 84140 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34553
2 68835
3 69986
4 83364 *
5 82578 *
6 82023 *
7 81602 *
8 81252 *
SPECjbb2005 (from 4 to 8) 82164 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35629
2 69851
3 71731
4 84484 *
5 84049 *
6 83538 *
7 82916 *
8 82534 *
SPECjbb2005 (from 4 to 8) 83504 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37301
2 68045
3 68828
4 84542 *
5 84037 *
6 83392 *
7 82962 *
8 82588 *
SPECjbb2005 (from 4 to 8) 83504 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35757
2 69838
3 71363
4 83902 *
5 83352 *
6 82726 *
7 82348 *
8 81885 *
SPECjbb2005 (from 4 to 8) 82842 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010

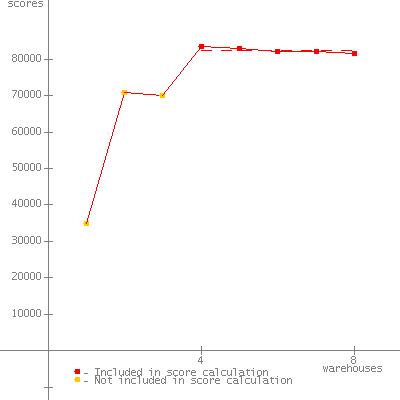

JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34996
2 70767
3 70033
4 83626 *
5 82929 *
6 82279 *
7 82035 *
8 81683 *
SPECjbb2005 (from 4 to 8) 82511 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010


JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37370
2 68404
3 72353
4 83852 *
5 83663 *
6 83035 *
7 82739 *
8 82303 *
SPECjbb2005 (from 4 to 8) 83118 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37286
2 66795
3 71292
4 83234 *
5 82453 *
6 81983 *
7 81552 *
8 81068 *
SPECjbb2005 (from 4 to 8) 82058 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010


JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36011
2 68475
3 71535
4 83958 *
5 83559 *
6 83012 *
7 82580 *
8 82235 *
SPECjbb2005 (from 4 to 8) 83069 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010


JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38497
2 68131
3 70588
4 83882 *
5 83375 *
6 82704 *
7 82252 *
8 81944 *
SPECjbb2005 (from 4 to 8) 82832 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010


JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35880
2 69599
3 70729
4 84584 *
5 83706 *
6 83001 *
7 82927 *
8 82429 *
SPECjbb2005 (from 4 to 8) 83330 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010


JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36418
2 67923
3 72513
4 84390 *
5 83644 *
6 83131 *
7 82722 *
8 82448 *
SPECjbb2005 (from 4 to 8) 83267 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010


JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36156
2 71013
3 70803
4 85308 *
5 84570 *
6 83915 *
7 83512 *
8 83278 *
SPECjbb2005 (from 4 to 8) 84117 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010


JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37032
2 65370
3 70834
4 85138 *
5 84262 *
6 83819 *
7 83475 *
8 82956 *
SPECjbb2005 (from 4 to 8) 83930 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 07-May-2010
