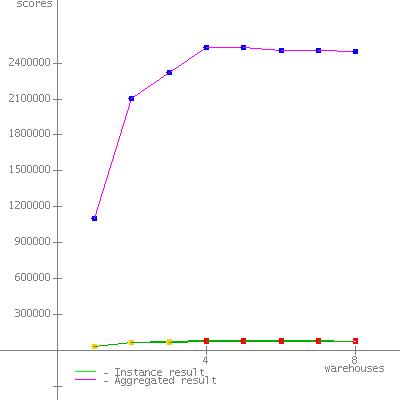

SPECjbb2005 SPECjbb2005 bops = 2514313, SPECjbb2005 bops/JVM = 78572
IBM Corporation IBM Power 780 (4.14 GHz, 32 core, IBM i)
IBM Corporation IBM Technology for Java 1.6 (32-bit JVM) [jvmap3260sr7-20091215(SR7)]

JVM run JVM Scores
177719
278387
377904
477246
578840
678260
780717
877998
978043
1079234
1177817
1280429
1377591
1477657
1577417
1681608
1775969
1877543
1979216
2078090
2178145
2276791
2379777
2479849
2578770
2681612
2778075
2877816
2978092
3080067
3178607
3279027
SPECjbb2005 bops = 2514313, SPECjbb2005 bops/JVM = 78572

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM Power 780 (4.14 GHz, 32 core, IBM i)
Processor POWER7 (TurboCore mode)
MHz 4140
# of Chips 8
# of Cores 32
# of Cores/Chip 4
HW Threading Enabled? Yes
Procs Avail to Java 128
Memory (MB) 262144
Memory Details 32 x 8 GB DDR3 1066MHz
Primary cache 32 KB I + 32 KB D on chip per core
Secondary cache 256 KB I+D on chip per core
Other cache 4MB I+D on chip per core; 16MB I+D on chip per chip
Filesystem IFS
Disks 2 x 146GB SAS 15K RPM
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com/systems/i
JVM Version IBM Technology for Java 1.6 (32-bit JVM) [jvmap3260sr7-20091215(SR7)]
JVM Command Line java -Xms2560m -Xmx2560m -Xmn2048m -Xgcthreads4 -Xgcpolicy:gencon -Xlp64k -Xnoloa -XlockReservation -Xaggressive -XtlhPrefetch -Djava.awt.headless=true spec.jbb.JBBmain -propfile SPECjbbMulti.props
JVM Initial Heap Memory (MB) 2560
JVM Maximum Heap Memory (MB) 2560
JVM Address bits 32
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/vm.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/annotation.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/beans.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/java.util.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/jndi.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/logging.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/security.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/sql.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmorb.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmorbapi.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmcfw.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/rt.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/charsets.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/resources.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmpkcs.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmcertpathfw.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmjgssfw.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmjssefw.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmsaslfw.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmjcefw.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmjgssprovider.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmjsseprovider2.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmcertpathprovider.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmxmlcrypto.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/management-agent.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/xml.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/jlm.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/javascript.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/IBMmisc.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/lib/IBMi5OSJSSE.jar
OS Version IBM i operating system 7.1
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Rochester, MN
Test date Mar 30, 2010
H/w available Mar-2010
JVM available Dec-2009
OS available Apr-2010
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • export QIBM_JVM_ILE_HOME=QJVM6032
  • Subsystem routing entries were used to set THDRSCAFN(*GROUP *HIGH) for the SPECjbb JVMs
Notes
  • The JVM was actually started using the CL `JAVA CLASS('spec.jbb.JBBmain') PARM('-propfile' 'SPECjbbMulti.props' '-id' '&JVMID) CLASSPATH(&CLASSPATH) PROP((os400.property.file 'jvmmulti.props')). The jvmmulti.props contained the command-line options shown in the `JVM Command Line` section above"


JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33812
2 65842
3 69995
4 78222 *
5 77645 *
6 77653 *
7 78045 *
8 77031 *
SPECjbb2005 (from 4 to 8) 77719 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35261
2 65697
3 72477
4 79296 *
5 78702 *
6 77903 *
7 77892 *
8 78142 *
SPECjbb2005 (from 4 to 8) 78387 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33213
2 64933
3 73431
4 78775 *
5 78057 *
6 77744 *
7 78219 *
8 76724 *
SPECjbb2005 (from 4 to 8) 77904 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010

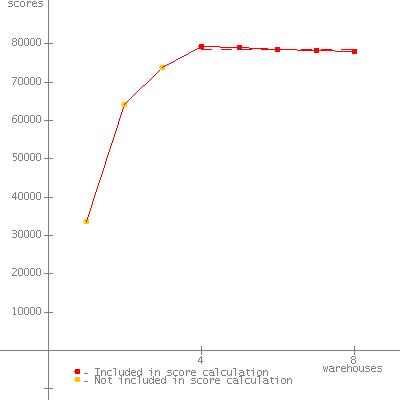

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32791
2 64987
3 74347
4 78043 *
5 77901 *
6 75664 *
7 77959 *
8 76664 *
SPECjbb2005 (from 4 to 8) 77246 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010

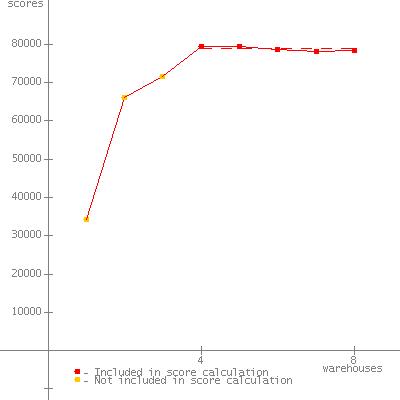

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34235
2 66120
3 71638
4 79399 *
5 79520 *
6 78649 *
7 78188 *
8 78446 *
SPECjbb2005 (from 4 to 8) 78840 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34271
2 65861
3 72354
4 78827 *
5 78257 *
6 78271 *
7 78600 *
8 77343 *
SPECjbb2005 (from 4 to 8) 78260 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010

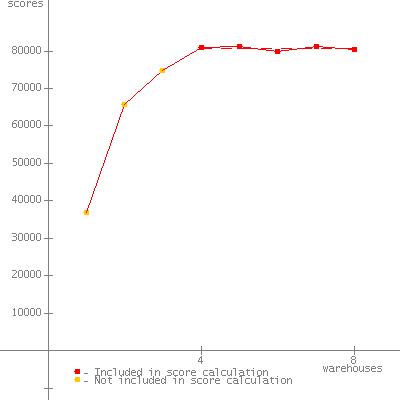

JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36901
2 65633
3 74890
4 80854 *
5 81170 *
6 79843 *
7 81291 *
8 80427 *
SPECjbb2005 (from 4 to 8) 80717 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33222
2 65410
3 71201
4 78371 *
5 78156 *
6 77866 *
7 77282 *
8 78317 *
SPECjbb2005 (from 4 to 8) 77998 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010

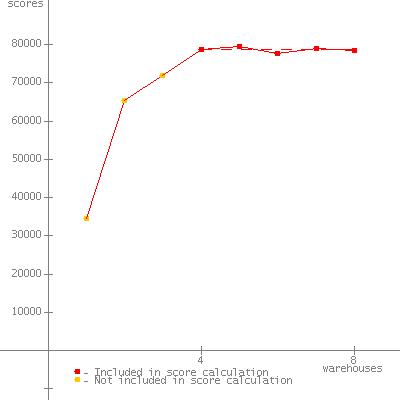

JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34173
2 65838
3 71700
4 79248 *
5 78334 *
6 77528 *
7 77620 *
8 77485 *
SPECjbb2005 (from 4 to 8) 78043 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010

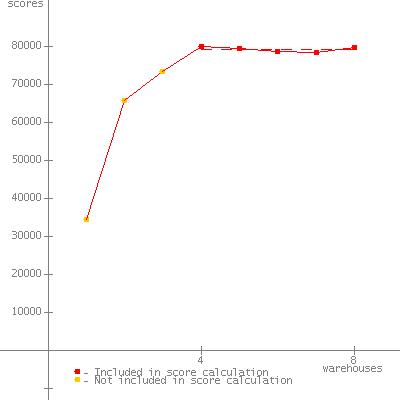

JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34427
2 65882
3 73329
4 80069 *
5 79341 *
6 78742 *
7 78320 *
8 79697 *
SPECjbb2005 (from 4 to 8) 79234 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010

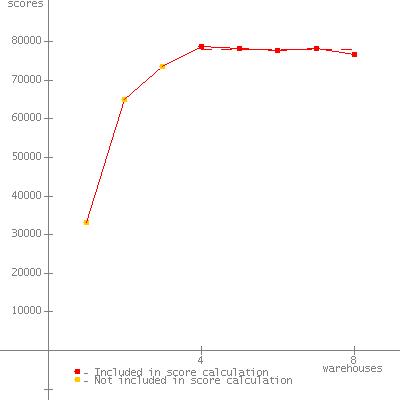

JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34648
2 64153
3 74124
4 78353 *
5 78225 *
6 77632 *
7 77681 *
8 77193 *
SPECjbb2005 (from 4 to 8) 77817 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010


JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35414
2 66579
3 76263
4 79929 *
5 81158 *
6 79985 *
7 81287 *
8 79786 *
SPECjbb2005 (from 4 to 8) 80429 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010


JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33683
2 66153
3 71878
4 78131 *
5 78314 *
6 77286 *
7 77161 *
8 77061 *
SPECjbb2005 (from 4 to 8) 77591 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010


JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35289
2 65065
3 71793
4 78809 *
5 77952 *
6 78429 *
7 76373 *
8 76719 *
SPECjbb2005 (from 4 to 8) 77657 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010


JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33870
2 65801
3 71623
4 78291 *
5 79005 *
6 76321 *
7 76190 *
8 77279 *
SPECjbb2005 (from 4 to 8) 77417 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010


JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34966
2 66820
3 75341
4 80965 *
5 82685 *
6 80443 *
7 82306 *
8 81639 *
SPECjbb2005 (from 4 to 8) 81608 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010


JVM 17 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34179
2 64831
3 69801
4 77289 *
5 76651 *
6 75621 *
7 74758 *
8 75524 *
SPECjbb2005 (from 4 to 8) 75969 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010


JVM 18 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32381
2 65427
3 69836
4 78354 *
5 78178 *
6 77434 *
7 77367 *
8 76384 *
SPECjbb2005 (from 4 to 8) 77543 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010

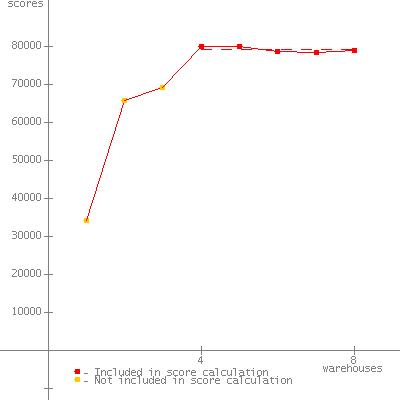

JVM 19 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34327
2 65757
3 69362
4 80130 *
5 79929 *
6 78634 *
7 78360 *
8 79028 *
SPECjbb2005 (from 4 to 8) 79216 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010

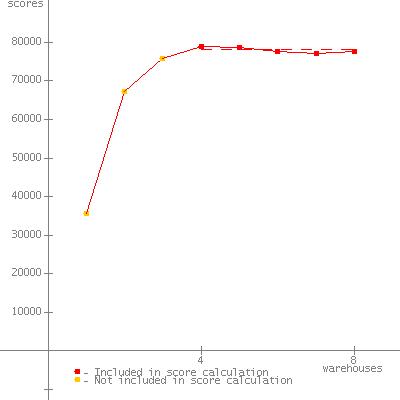

JVM 20 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35531
2 67291
3 75844
4 79037 *
5 78818 *
6 77586 *
7 77235 *
8 77777 *
SPECjbb2005 (from 4 to 8) 78090 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010

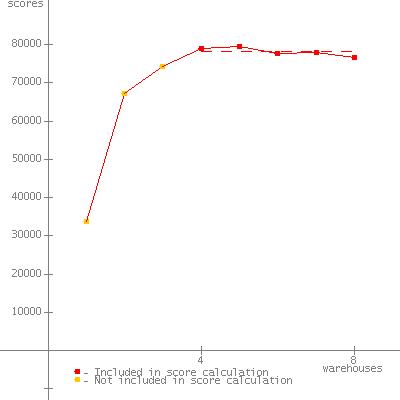

JVM 21 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33770
2 67209
3 74315
4 78908 *
5 79575 *
6 77731 *
7 77816 *
8 76696 *
SPECjbb2005 (from 4 to 8) 78145 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010


JVM 22 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33984
2 66547
3 72327
4 77316 *
5 76542 *
6 77184 *
7 76747 *
8 76163 *
SPECjbb2005 (from 4 to 8) 76791 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010


JVM 23 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35451
2 67625
3 76574
4 80799 *
5 80139 *
6 79881 *
7 79367 *
8 78701 *
SPECjbb2005 (from 4 to 8) 79777 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010

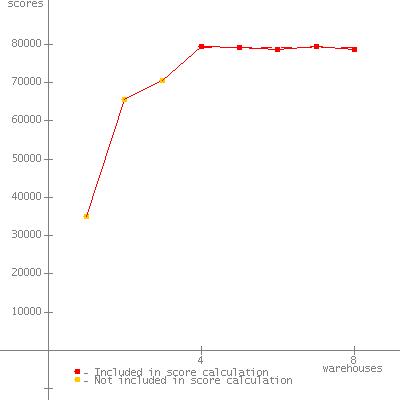

JVM 24 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34339
2 67031
3 70321
4 80385 *
5 80233 *
6 80550 *
7 79011 *
8 79068 *
SPECjbb2005 (from 4 to 8) 79849 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010


JVM 25 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34575
2 65538
3 71923
4 78863 *
5 79630 *
6 77824 *
7 78956 *
8 78576 *
SPECjbb2005 (from 4 to 8) 78770 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010


JVM 26 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34539
2 67538
3 73308
4 80996 *
5 81546 *
6 81158 *
7 81891 *
8 82470 *
SPECjbb2005 (from 4 to 8) 81612 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010


JVM 27 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33804
2 66312
3 73648
4 78274 *
5 78010 *
6 77345 *
7 78600 *
8 78144 *
SPECjbb2005 (from 4 to 8) 78075 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010


JVM 28 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34479
2 66061
3 69570
4 78100 *
5 78430 *
6 77024 *
7 77749 *
8 77776 *
SPECjbb2005 (from 4 to 8) 77816 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010


JVM 29 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34048
2 66162
3 73843
4 78901 *
5 78096 *
6 77941 *
7 78443 *
8 77081 *
SPECjbb2005 (from 4 to 8) 78092 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010


JVM 30 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35393
2 64608
3 74214
4 81373 *
5 81400 *
6 79797 *
7 78904 *
8 78862 *
SPECjbb2005 (from 4 to 8) 80067 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010


JVM 31 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33678
2 64198
3 73872
4 79383 *
5 78985 *
6 78399 *
7 78244 *
8 78027 *
SPECjbb2005 (from 4 to 8) 78607 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010


JVM 32 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35034
2 65515
3 70612
4 79452 *
5 79211 *
6 78473 *
7 79366 *
8 78634 *
SPECjbb2005 (from 4 to 8) 79027 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 30, 2010

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 07-May-2010
