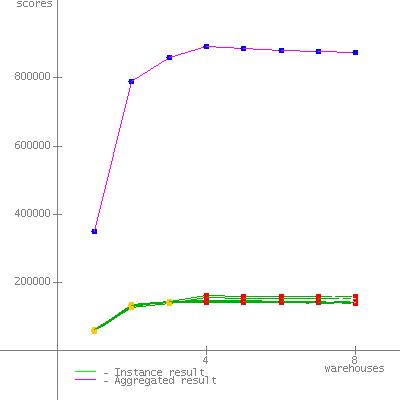

SPECjbb2005 SPECjbb2005 bops = 882267, SPECjbb2005 bops/JVM = 147045
Fujitsu PRIMERGY BX920 S2, Intel Xeon X5670, 2.93 GHz
IBM Corporation IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)

JVM run JVM Scores
1140020
2158712
3141522
4144976
5153789
6143248
SPECjbb2005 bops = 882267, SPECjbb2005 bops/JVM = 147045

Hardware
Hardware Vendor Fujitsu
Vendor URL http://www.fujitsu.com
Model PRIMERGY BX920 S2, Intel Xeon X5670, 2.93 GHz
Processor Intel Xeon X5670 (Intel Turbo Boost Technology up to 3.33 GHz)
MHz 2933
# of Chips 2
# of Cores 12
# of Cores/Chip 6
HW Threading Enabled? Yes
Procs Avail to Java 24
Memory (MB) 36864
Memory Details 9x4GB PC3-10600R (CAS 9-9-9)
Primary cache 32KB(I) + 32KB(D) on chip, per core
Secondary cache 256KB(I+D) on chip, per core
Other cache 12MB(I+D) on chip, per chip
Filesystem NTFS
Disks Seagate (2.5", SAS, 73GB, 10krpm)
Other hardware PRIMERGY BX900 S1 System Unit as blade chassis
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command Line start /HIGH /AFFINITY [0xF,0x70,0x700,0xF000,0x70000,0xF00000] /B java -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files (x86)\Java\java\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\Program Files (x86)\Java\java\jre\lib\annotation.jar;
C:\Program Files (x86)\Java\java\jre\lib\beans.jar;
C:\Program Files (x86)\Java\java\jre\lib\java.util.jar;
C:\Program Files (x86)\Java\java\jre\lib\jndi.jar;
C:\Program Files (x86)\Java\java\jre\lib\logging.jar;
C:\Program Files (x86)\Java\java\jre\lib\security.jar;
C:\Program Files (x86)\Java\java\jre\lib\sql.jar;
C:\Program Files (x86)\Java\java\jre\lib\ibmorb.jar;
C:\Program Files (x86)\Java\java\jre\lib\ibmorbapi.jar;
C:\Program Files (x86)\Java\java\jre\lib\ibmcfw.jar;
C:\Program Files (x86)\Java\java\jre\lib\rt.jar;
C:\Program Files (x86)\Java\java\jre\lib\charsets.jar;
C:\Program Files (x86)\Java\java\jre\lib\resources.jar;
C:\Program Files (x86)\Java\java\jre\lib\ibmpkcs.jar;
C:\Program Files (x86)\Java\java\jre\lib\ibmcertpathfw.jar;
C:\Program Files (x86)\Java\java\jre\lib\ibmjgssfw.jar;
C:\Program Files (x86)\Java\java\jre\lib\ibmjssefw.jar;
C:\Program Files (x86)\Java\java\jre\lib\ibmsaslfw.jar;
C:\Program Files (x86)\Java\java\jre\lib\ibmjcefw.jar;
C:\Program Files (x86)\Java\java\jre\lib\ibmjgssprovider.jar;
C:\Program Files (x86)\Java\java\jre\lib\ibmjsseprovider2.jar;
C:\Program Files (x86)\Java\java\jre\lib\ibmcertpathprovider.jar;
C:\Program Files (x86)\Java\java\jre\lib\ibmxmlcrypto.jar;
C:\Program Files (x86)\Java\java\jre\lib\management-agent.jar;
C:\Program Files (x86)\Java\java\jre\lib\xml.jar;
C:\Program Files (x86)\Java\java\jre\lib\jlm.jar;
C:\Program Files (x86)\Java\java\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 R2 Enterprise
Other software N/A
Test Information
Tested by Fujitsu
SPEC license # 19
Test location Paderborn, Germany
Test date Apr 26, 2010
H/w available May-2010
JVM available Nov-2009
OS available Oct-2009
Other s/w available N/A
AOT Compilation
N/A
Tuning
  • Turned off "Hardware Prefetch" in BIOS.
  • Turned off "Adjacent Sector Prefetch" in BIOS.
  • Turned off "DCU Streamer Prefetch" in BIOS.
  • Turned off "DCU IP Prefetch" in BIOS.
  • Turned off "Data Reuse Optimization" in BIOS.
  • Each JVM instance was affinitized to 2 cores of a socket.
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Notes

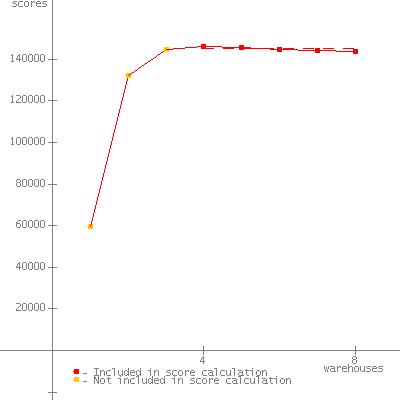

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 56306
2 131553
3 141789
4 141599 *
5 140511 *
6 139732 *
7 139481 *
8 138778 *
SPECjbb2005 (from 4 to 8) 140020 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Apr 26, 2010

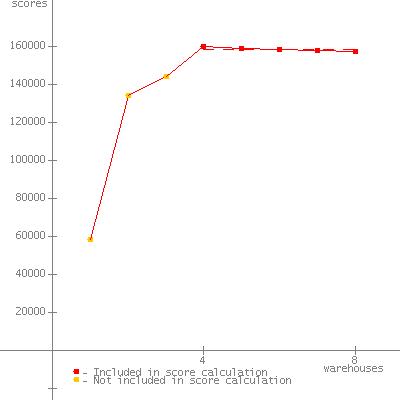

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58604
2 134355
3 144575
4 160383 *
5 159191 *
6 158429 *
7 158050 *
8 157508 *
SPECjbb2005 (from 4 to 8) 158712 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Apr 26, 2010

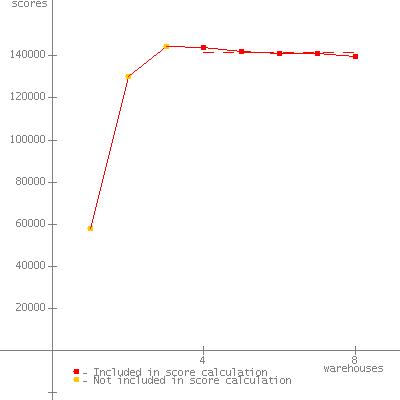

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 57907
2 130220
3 144556
4 143706 *
5 142146 *
6 140998 *
7 141114 *
8 139646 *
SPECjbb2005 (from 4 to 8) 141522 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Apr 26, 2010

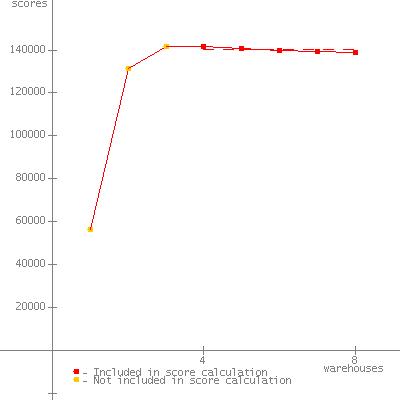

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 59454
2 132387
3 144559
4 146278 *
5 145755 *
6 144652 *
7 144318 *
8 143877 *
SPECjbb2005 (from 4 to 8) 144976 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Apr 26, 2010

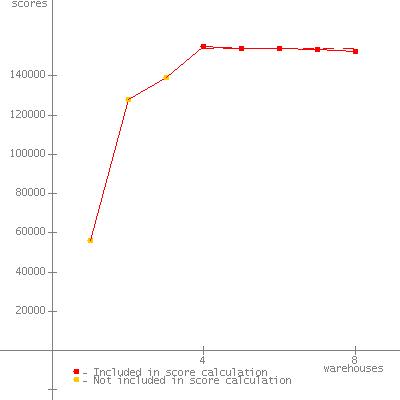

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 55901
2 127814
3 139215
4 155134 *
5 153902 *
6 154085 *
7 153268 *
8 152556 *
SPECjbb2005 (from 4 to 8) 153789 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Apr 26, 2010

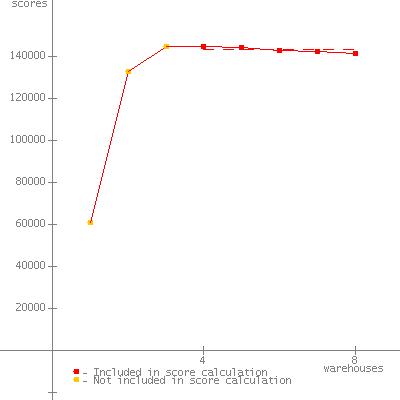

JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 60918
2 133076
3 145042
4 144751 *
5 144379 *
6 143029 *
7 142546 *
8 141534 *
SPECjbb2005 (from 4 to 8) 143248 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Apr 26, 2010

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 25-May-2010
