SPECjbb2005 SPECjbb2005 bops = 5024919, SPECjbb2005 bops/JVM = 125623
Hewlett-Packard Company HP Proliant DL980 G7
IBM Corporation IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)

JVM run JVM Scores
1124939
2128297
3124426
4126684
5126698
6126844
7126043
8127004
9126830
10125319
11124544
12125264
13124512
14123936
15127268
16126993
17126722
18125324
19122862
20125042
21124485
22125679
23125977
24125153
25126141
26124017
27125372
28126252
29125260
30125052
31125516
32125502
33126599
34126130
35127192
36124584
37125112
38125650
39125380
40124315
SPECjbb2005 bops = 5024919, SPECjbb2005 bops/JVM = 125623

Hardware
Hardware Vendor Hewlett-Packard Company
Vendor URL http://www.hp.com
Model HP Proliant DL980 G7
Processor Intel Xeon E7-4870 2.4 GHz (Intel Turbo Boost Technology up to 2.80 GHz)
MHz 2400
# of Chips 8
# of Cores 80
# of Cores/Chip 10
HW Threading Enabled? Yes
Procs Avail to Java 160
Memory (MB) 1048576
Memory Details 128 x 8GB PC3-10600R dual-rank DIMMs
Primary cache 32 KB I + 32 KB D on chip per core.
Secondary cache 256 KB I+D on chip per core
Other cache 30MB L3 per chip
Filesystem NTFS
Disks 146GB SAS 6G DP 15K
Other hardware none
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command Line start /B /AFFINITY %MASK% /HIGH java -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH jbb.jar;
check.jar
JVM BOOTCLASSPATH c:\SPECjbb2005\J9-SR5\jre\bin\compressedrefs\jclSC160\vm.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\annotation.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\beans.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\java.util.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\jndi.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\logging.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\security.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\sql.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\ibmorb.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\ibmorbapi.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\ibmcfw.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\rt.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\charsets.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\resources.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\ibmpkcs.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\ibmcertpathfw.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\ibmjgssfw.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\ibmjssefw.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\ibmsaslfw.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\ibmjcefw.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\ibmjgssprovider.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\ibmjsseprovider2.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\ibmcertpathprovider.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\ibmxmlcrypto.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\management-agent.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\xml.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\jlm.jar;
c:\SPECjbb2005\J9-SR5\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 Enterprise with SP1 (64-bit)
Other software IBM Websphere Application Server V7.0 for Windows on x86-64-bit
Test Information
Tested by Hewlett-Packard Company
SPEC license # 3
Test location Cupertino, CA
Test date May 9, 2011
H/w available June-2011
JVM available July-2009
OS available Jan-2009
Other s/w available
AOT Compilation

Tuning
"Lock pages in memory" enabled for benchmark user.
Used start /AFFINITY to bind 5 JVMs to each physical CPU node.
BIOS Configuration
  • Power Regulator set to Static High
  • Node Interleaving Disabled
  • Hardware Prefetcher Disabled
  • Adjacent Sector Prefetcher Disabled
Notes
Command line options are described at: http://publib.boulder.ibm.com/infocenter/javasdk/v6r0/index.jsp
The peak warehouse number was set to 4.


JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 45514
2 99157
3 118324
4 125824 *
5 125330 *
6 125129 *
7 124402 *
8 124010 *
SPECjbb2005 (from 4 to 8) 124939 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 44606
2 98338
3 120679
4 128727 *
5 129710 *
6 128333 *
7 127317 *
8 127397 *
SPECjbb2005 (from 4 to 8) 128297 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42367
2 100050
3 112247
4 125345 *
5 125064 *
6 124397 *
7 123695 *
8 123627 *
SPECjbb2005 (from 4 to 8) 124426 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 44638
2 103887
3 117813
4 126669 *
5 127954 *
6 126749 *
7 126399 *
8 125650 *
SPECjbb2005 (from 4 to 8) 126684 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011

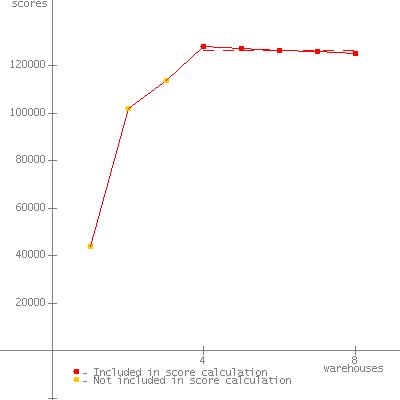

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 44047
2 102049
3 113723
4 128328 *
5 127404 *
6 126538 *
7 126054 *
8 125164 *
SPECjbb2005 (from 4 to 8) 126698 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 44154
2 101417
3 119379
4 127562 *
5 127717 *
6 127076 *
7 126380 *
8 125486 *
SPECjbb2005 (from 4 to 8) 126844 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 41601
2 96286
3 117786
4 127722 *
5 126838 *
6 125281 *
7 125514 *
8 124860 *
SPECjbb2005 (from 4 to 8) 126043 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 44572
2 101427
3 115852
4 128042 *
5 128015 *
6 127428 *
7 125546 *
8 125989 *
SPECjbb2005 (from 4 to 8) 127004 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 45408
2 102350
3 118860
4 127798 *
5 127508 *
6 126973 *
7 126127 *
8 125745 *
SPECjbb2005 (from 4 to 8) 126830 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43304
2 98338
3 116018
4 126932 *
5 126128 *
6 125410 *
7 124638 *
8 123485 *
SPECjbb2005 (from 4 to 8) 125319 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42608
2 99181
3 112629
4 126151 *
5 125093 *
6 124525 *
7 123472 *
8 123481 *
SPECjbb2005 (from 4 to 8) 124544 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43104
2 99758
3 114930
4 127033 *
5 125887 *
6 125211 *
7 124275 *
8 123912 *
SPECjbb2005 (from 4 to 8) 125264 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011

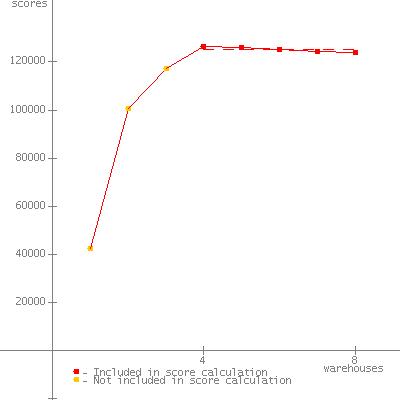

JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 44027
2 100452
3 115733
4 125987 *
5 125101 *
6 124440 *
7 123697 *
8 123338 *
SPECjbb2005 (from 4 to 8) 124512 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011

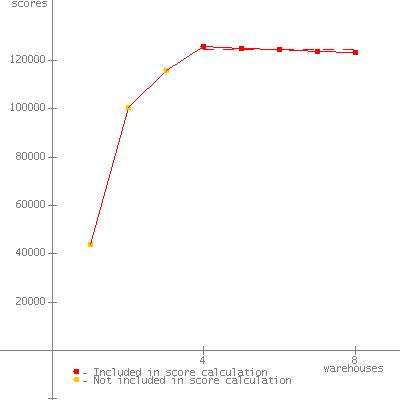

JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 44097
2 99467
3 113475
4 124897 *
5 124297 *
6 124260 *
7 123098 *
8 123128 *
SPECjbb2005 (from 4 to 8) 123936 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43533
2 101146
3 118894
4 128510 *
5 127888 *
6 127230 *
7 126663 *
8 126048 *
SPECjbb2005 (from 4 to 8) 127268 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43627
2 102172
3 118526
4 128758 *
5 126882 *
6 127292 *
7 126739 *
8 125295 *
SPECjbb2005 (from 4 to 8) 126993 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 17 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 41233
2 101478
3 118596
4 127661 *
5 126842 *
6 126788 *
7 126579 *
8 125742 *
SPECjbb2005 (from 4 to 8) 126722 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 18 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43083
2 99822
3 117386
4 126965 *
5 125626 *
6 125036 *
7 125027 *
8 123970 *
SPECjbb2005 (from 4 to 8) 125324 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 19 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 45396
2 98387
3 109529
4 124226 *
5 122744 *
6 123018 *
7 122415 *
8 121907 *
SPECjbb2005 (from 4 to 8) 122862 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 20 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43038
2 100730
3 116060
4 126390 *
5 124997 *
6 125364 *
7 124464 *
8 123995 *
SPECjbb2005 (from 4 to 8) 125042 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 21 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43554
2 100083
3 115596
4 125945 *
5 125336 *
6 124563 *
7 123730 *
8 122850 *
SPECjbb2005 (from 4 to 8) 124485 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 22 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43818
2 100530
3 117419
4 127056 *
5 125683 *
6 125909 *
7 124940 *
8 124807 *
SPECjbb2005 (from 4 to 8) 125679 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 23 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43775
2 100852
3 117435
4 126515 *
5 127125 *
6 126416 *
7 125324 *
8 124506 *
SPECjbb2005 (from 4 to 8) 125977 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 24 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42327
2 100826
3 117297
4 126546 *
5 125883 *
6 125067 *
7 124279 *
8 123992 *
SPECjbb2005 (from 4 to 8) 125153 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 25 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43600
2 101400
3 113402
4 127806 *
5 126623 *
6 126164 *
7 125248 *
8 124863 *
SPECjbb2005 (from 4 to 8) 126141 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 26 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42438
2 99963
3 114900
4 124945 *
5 124844 *
6 123894 *
7 123566 *
8 122834 *
SPECjbb2005 (from 4 to 8) 124017 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 27 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43526
2 100314
3 113341
4 126074 *
5 126350 *
6 125259 *
7 125107 *
8 124072 *
SPECjbb2005 (from 4 to 8) 125372 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 28 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40282
2 95907
3 118875
4 127350 *
5 127230 *
6 126150 *
7 125494 *
8 125037 *
SPECjbb2005 (from 4 to 8) 126252 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 29 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42874
2 101747
3 113051
4 126724 *
5 125968 *
6 124883 *
7 124781 *
8 123947 *
SPECjbb2005 (from 4 to 8) 125260 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 30 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43240
2 100598
3 115384
4 126997 *
5 126024 *
6 124678 *
7 123894 *
8 123665 *
SPECjbb2005 (from 4 to 8) 125052 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 31 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 44792
2 101126
3 118422
4 125422 *
5 126465 *
6 125703 *
7 125355 *
8 124635 *
SPECjbb2005 (from 4 to 8) 125516 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 32 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43975
2 98681
3 113401
4 127243 *
5 125617 *
6 125613 *
7 124918 *
8 124121 *
SPECjbb2005 (from 4 to 8) 125502 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 33 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 45945
2 102440
3 119308
4 126690 *
5 127728 *
6 126684 *
7 126467 *
8 125426 *
SPECjbb2005 (from 4 to 8) 126599 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 34 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 45347
2 103871
3 118118
4 127349 *
5 126908 *
6 126004 *
7 125086 *
8 125303 *
SPECjbb2005 (from 4 to 8) 126130 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 35 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 44315
2 102313
3 114628
4 128082 *
5 128703 *
6 126950 *
7 126567 *
8 125655 *
SPECjbb2005 (from 4 to 8) 127192 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 36 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42751
2 99765
3 117914
4 125628 *
5 125495 *
6 124614 *
7 123636 *
8 123548 *
SPECjbb2005 (from 4 to 8) 124584 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 37 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42992
2 101761
3 114382
4 126252 *
5 126059 *
6 124503 *
7 124436 *
8 124311 *
SPECjbb2005 (from 4 to 8) 125112 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 38 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43643
2 100465
3 117497
4 127368 *
5 126874 *
6 125959 *
7 124768 *
8 123283 *
SPECjbb2005 (from 4 to 8) 125650 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 39 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 44526
2 102974
3 116753
4 126253 *
5 126292 *
6 125352 *
7 124402 *
8 124601 *
SPECjbb2005 (from 4 to 8) 125380 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011


JVM 40 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43545
2 100466
3 115130
4 125556 *
5 124847 *
6 124410 *
7 123583 *
8 123178 *
SPECjbb2005 (from 4 to 8) 124315 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 9, 2011

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 01-Jun-2011
