Hewlett-Packard Company HP ProLiant ML310e Gen8 12453 SPECjbb2013-MultiJVM max-jOPS
3925 SPECjbb2013-MultiJVM critical-jOPS
Tested by: Hewlett-Packard Company () Test Sponsor: Hewlett-Packard Company Test location: Houston, TX Test date: March 15, 2013
SPEC license #: 3 Hardware Availability: Dec-2012 Software Availability: Mar-2013 Publication: Apr 08, 2013
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
System SourceSingle Supplier
System DesignationServer
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores4
Total Threads8
Total Memory Amount (GB)32
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHP ProLiant ML310e Gen8
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
AvailableDec-2012
ModelHP ProLiant ML310e Gen8
Form FactorTower
CPU NameIntel Xeon E3-1280v2
CPU CharacteristicsTurbo Boost Technology up to 4.00 GHz
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System4
Cores Per Chip4
Threads Per System8
Threads Per Core2
VersionNone
CPU Frequency (MHz)3600
Primary Cache32 KB I + 32 KB D per core
Secondary Cache256 KB I+D per core
Tertiary Cache8MB I+D on chip per chip
Other CacheNone
Disk1 x 500 GB 7200 RPM SATA (658071-B21)
File SystemEXT4
Memory Amount (GB)32
# and size of DIMM(s)4 x 8192 MB
Memory Details2Rx4 PC3-12800R-11, ECC
# and type of Network Interface Cards (NICs)2 x 1 Gbit NICs (embedded)
Power Supply Quantity and Rating (W)1 x 460
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Tuning
  • BIOS Configuration
    • HP Power Profile set to Maximum Performance
    • SATA AHCI Support set to Enabled
    • Thermal Configuration set to Maximum Cooling
    • Collaborative Power Control set to Disabled
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server release 6.3 (Santiago)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 6.3 (Santiago)-2.6.32-279.el6.x86_64 x86_64
AvailableJun-2012
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameHotspot Java 1.7.0
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJDK 7 update 15
AvailableFeb-2013
Bitness64
Notesnone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 12315 12453 12592 12730 12868
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 2006 3123 3376 5289 8325 3925
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 277 / 415 - / 138 - / 138 - / 138 - / 138 - / 138
1000us 1522 / 1660 553 / 692 277 / 415 277 / 415 138 / 277 - / 138
5000us 8164 / 8302 4013 / 4151 2491 / 2629 2214 / 2352 1799 / 1660 - / 138
10000us 8856 / 8994 7057 / 7195 4843 / 4981 4151 / 3044 2076 / 1937 - / 138
20000us 9132 / 9271 8302 / 8441 6642 / 6365 5950 / 3044 3459 / 1937 830 / 277
50000us 9271 / 9409 8856 / 8994 7334 / 6365 5950 / 3044 3598 / 2767 830 / 277
100000us 9548 / 9686 9132 / 9271 7610 / 7195 7057 / 3044 3598 / 3044 830 / 415
200000us 10239 / 10101 9548 / 9686 8856 / 8441 8164 / 3044 5950 / 3044 830 / 415
500000us 11900 / 12038 10654 / 10793 10239 / 10101 9824 / 3044 9409 / 3044 9271 / 3044
1000000us 12177 / 12315 12038 / 12177 11485 / 11208 11485 / 10101 11070 / 3044 10793 / 3044
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

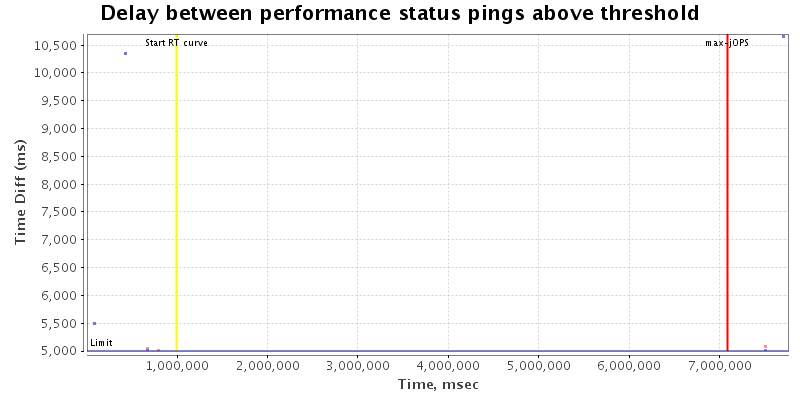

Delay between status pings
IR/PR Accuracy
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • BIOS Configuration
    • HP Power Profile set to Maximum Performance
    • SATA AHCI Support set to Enabled
    • Thermal Configuration set to Maximum Cooling
    • Collaborative Power Control set to Disabled
Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(1), jvm_TxInjector_1(1)
OS Image Description os_1
Tuning
    Transparent Huge Pages enabled with:
  • echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line start java -XX:+UseLargePages -XX:-UseBiasedLocking -XX:+UseParallelOldGC -Xms20G -Xmx20G -Xmn16G -XX:+PrintGCDetails
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g
Tuning None
Notes None
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 8 8
specjbb.group.count 1 1
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 13837 IR
High-bound (settled) is 12832 IR
