Hewlett-Packard Company HP ProLiant DL980 G7 106141 SPECjbb2013-MultiJVM max-jOPS
23268 SPECjbb2013-MultiJVM critical-jOPS
Tested by: Hewlett-Packard Company () Test Sponsor: Hewlett-Packard Company Test location: Houston, TX Test date: Mar 15, 2013
SPEC license #: 3 Hardware Availability: Aug-2011 Software Availability: Mar-2013 Publication: Apr 08, 2013
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
System SourceSingle Supplier
System DesignationServer
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips8
Total Cores80
Total Threads160
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHP ProLiant DL980 G7
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
AvailableAug-2011
ModelHP ProLiant DL980 G7
Form Factor4U Rack
CPU NameIntel Xeon E7-4870
CPU CharacteristicsTurbo Boost Technology up to 2.80 GHz
Number of Systems1
Nodes Per System1
Chips Per System8
Cores Per System80
Cores Per Chip10
Threads Per System160
Threads Per Core2
VersionG7
CPU Frequency (MHz)2400
Primary Cache32 KB I +32 KB D per core
Secondary Cache256 KB I+D per core
Tertiary Cache30 MB I+D on chip per chip
Other CacheNone
Disk1x 150GB 15K SAS (652605-B21)
File SystemEXT4
Memory Amount (GB)1024
# and size of DIMM(s)128x 8192MB
Memory Details2Rx4 PC3-10600R ECC CL9; running at 1066MHz; All DIMM slots populated
# and type of Network Interface Cards (NICs)4x 10 Gbit NICs (embedded)
Power Supply Quantity and Rating (W)4x 1200
Other HardwareQLogic Corp. ISP2532-based 8Gb Fibre Channel to PCI Express HBA
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Tuning
  • BIOS Configuration
    • HP Power Profile set to Maximum Performance
    • Memory Power Savings Mode set to Maximum Performance
    • Thermal Configuration set to Maximum Cooling
    • Collaborative Power Control set to Disabled
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server release 6.3, (Santiago)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 6.3 (Santiago)-2.6.32-279.el6.x86_64 x86_64
AvailableJun-2012
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameHotspot Java 1.7.0
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJDK 7 update 17
AvailableMar-2013
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
Bitness64
NotesNone
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 104814 106141 107468 108794 110121
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 13931 20564 25871 27198 33832 23268
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1327 - / 1327 - / 1327 - / 1327 - / 1327 - / 1327
1000us - / 1327 - / 1327 - / 1327 - / 1327 - / 1327 - / 1327
5000us 27862 / 29189 21228 / 22555 13268 / 14594 13268 / 14594 10614 / 11941 - / 1327
10000us 29189 / 30515 26535 / 27862 21228 / 22555 21228 / 22555 13268 / 14594 - / 1327
20000us 30515 / 31842 27862 / 29189 25208 / 26535 21228 / 22555 19901 / 14594 7961 / 3980
50000us 33169 / 34496 27862 / 29189 26535 / 27862 26535 / 27862 19901 / 21228 10614 / 3980
100000us 39803 / 41130 27862 / 29189 26535 / 27862 26535 / 27862 25208 / 26535 13268 / 3980
200000us 66338 / 50417 31842 / 33169 27862 / 29189 27862 / 29189 26535 / 27862 17248 / 3980
500000us 92873 / 91546 58377 / 59704 37149 / 38476 35823 / 37149 33169 / 34496 19901 / 21228
1000000us 103487 / 104814 88893 / 87566 66338 / 65011 59704 / 61031 54397 / 55724 39803 / 35823
Probes jOPS / Total jOPS

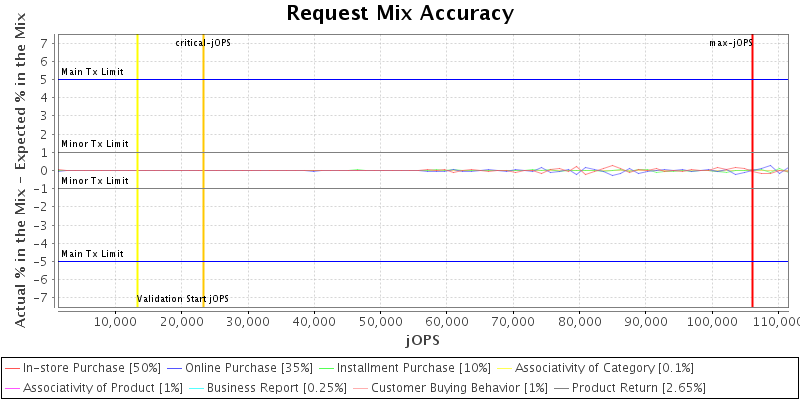

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

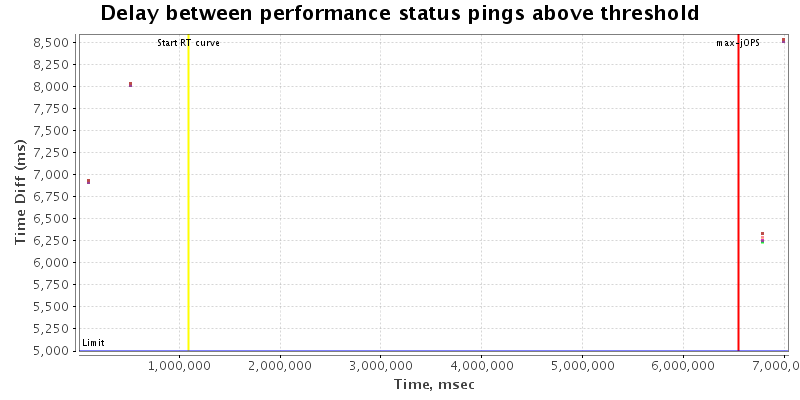

Delay between status pings

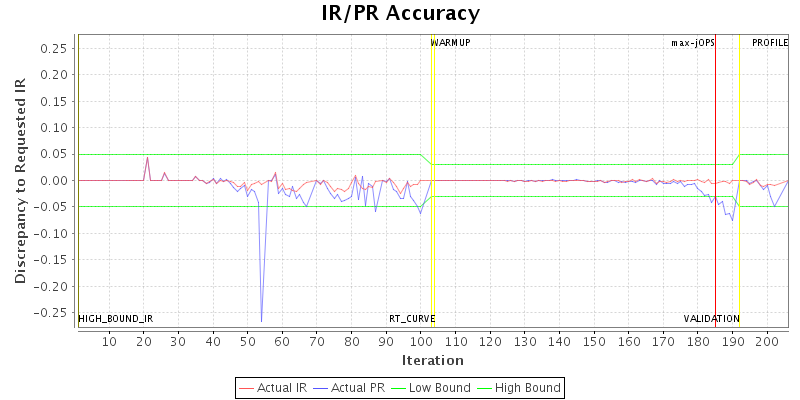

IR/PR Accuracy
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • ulimit -n 655360
  • SELinux disabled at OS boot up
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -jar specjbb2013.jar -m MULTICONTROLLER -p $PROPS
Tuning with the command:
  • taskset -c 89,99,109,119,129,139,149,159
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xmx54G -Xms54G -Xmn48G -XX:+UseParallelOldGC -XX:ParallelGCThreads=18 -XX:-UseBiasedLocking -jar specjbb2013.jar -m BACKEND -G=$GROUPID -J=$JVMID -p $PROPS
Tuning Set each jvm bind to each socket with the numactl command
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx6G -Xms6G -Xmn5G -XX:+UseParallelOldGC -XX:ParallelGCThreads=2 -jar specjbb2013.jar -m TXINJECTOR -G=$GROUPID -J=$JVMID -p $PROPS
Tuning Set each jvm bind to the last core of each socket with the numactl command
Notes None
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 160 20
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 160 20
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 132676 IR
High-bound (settled) is 112688 IR
