Oracle Corporation SPARC T4-2 34804 SPECjbb2013-MultiJVM max-jOPS
10101 SPECjbb2013-MultiJVM critical-jOPS
Tested by: Oracle Corporation () Test Sponsor: Oracle Corporation Test location: Burlington, MA Test date: Mar 22, 2013
SPEC license #: 6 Hardware Availability: Oct-2011 Software Availability: Mar-2013 Publication: Apr 17, 2013
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores16
Total Threads128
Total Memory Amount (GB)256
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSPARC T4-2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
AvailableOct-2011
ModelSPARC T4-2
Form Factor3RU rackmount server
CPU NameSPARC T4
CPU Characteristics2848 MHz SPARC-T4
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System16
Cores Per Chip8
Threads Per System128
Threads Per Core8
VersionNone
CPU Frequency (MHz)2848
Primary Cache16 KB I + 16 KB D per core
Secondary Cache128 KB I+D per core
Tertiary Cache4 MB I+D per chip
Other CacheNone
Disk2x 300 GB 10000 RPM SAS disk drive
File SystemZFS
Memory Amount (GB)256
# and size of DIMM(s)32 x 8 GB
Memory Details8GB 2Rx8 PC3-10600R ECC CL9; all slots populated
# and type of Network Interface Cards (NICs)Onboard 10/100/1000 NIC
Power Supply Quantity and Rating (W)2x 2060W AC power supplies
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
TuningNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameOracle Solaris 11.1 SRU 1.4
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
VersionOracle Solaris 11.1 SRU 1.4
AvailableOct-2012
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 7u17
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/technetwork/java
VersionJava HotSpot(TM) 64-bit Server VM, version 1.7.0_17
AvailableMar-2013
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 34438 34804 35171 35537 35903
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 6350 8700 9672 10075 19533 10101
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 366 - / 366 - / 366 - / 366 - / 366 - / 366
1000us - / 366 - / 366 - / 366 - / 366 - / 366 - / 366
5000us 24912 / 25279 7327 / 7694 5129 / 5495 4396 / 4763 2931 / 3297 - / 366
10000us 28210 / 28576 22348 / 20883 11357 / 11724 10258 / 10624 6961 / 5129 1465 / 1099
20000us 28576 / 28942 26744 / 27111 20516 / 20883 17952 / 12456 6961 / 6228 2931 / 1099
50000us 28942 / 29309 27477 / 27843 21615 / 20883 17952 / 12456 9525 / 8426 2931 / 1099
100000us 29675 / 30042 28210 / 28576 21982 / 20883 19051 / 12456 10258 / 8793 2931 / 1099
200000us 32240 / 31141 29309 / 29675 24546 / 20883 21982 / 14654 11357 / 8793 2931 / 1099
500000us 33705 / 34071 32240 / 31873 28210 / 28576 27843 / 20883 24546 / 8793 22348 / 8793
1000000us 34071 / 34438 33705 / 31873 32606 / 31873 32606 / 20883 31507 / 12456 30042 / 8793
Probes jOPS / Total jOPS

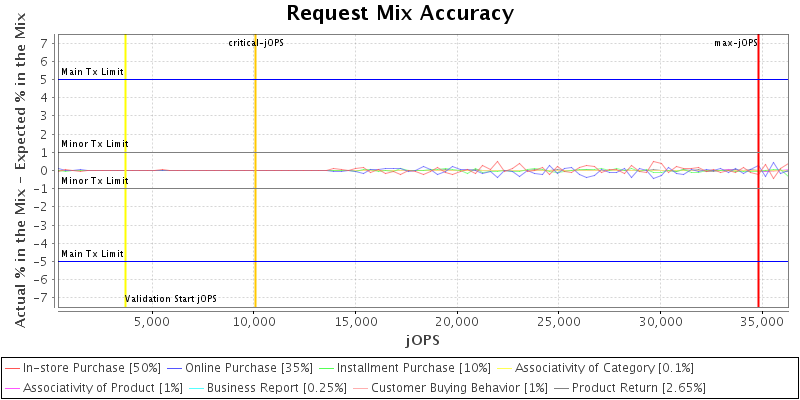

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

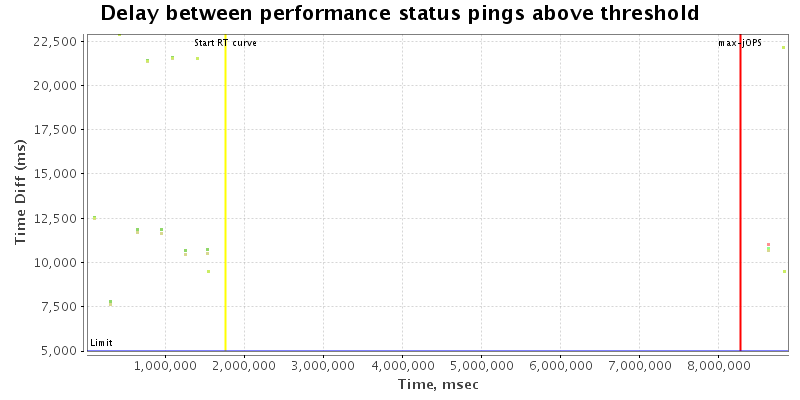

Delay between status pings
IR/PR Accuracy
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning Each group (backend and transaction injector) is run in its own processor set consisting of all the virtual processors (threads) belonging to the same physical CPU.
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning Each group (backend and transaction injector) is run in its own processor set consisting of all the virtual processors (threads) belonging to the same physical CPU.
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx2048m -Xms2048m -Xmn1536m
Tuning Run in processor set #1.
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xmx30g -Xms30g -Xmn26g -XX:+UseParallelOldGC -XX:+UseLargePages -XX:LargePageSizeInBytes=256m -XX:-UseBiasedLocking
Tuning Each group (backend and transaction injector) is run in its own processor set consisting of all the virtual processors (threads) belonging to the same physical CPU.
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx2048m -Xms2048m -Xmn1536m
Tuning Each group (backend and transaction injector) is run in its own processor set consisting of all the virtual processors (threads) belonging to the same physical CPU.
Notes None
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 64 64
specjbb.group.count 1 2
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 36636 IR
High-bound (settled) is 36339 IR
