Dell Inc. PowerEdge R720 CODE DEFECT (CD) RESULT
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: Jul 7, 2013
SPEC license #: 55 Hardware Availability: Oct-2012 Software Availability: Apr-2013 Publication: Aug 07, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

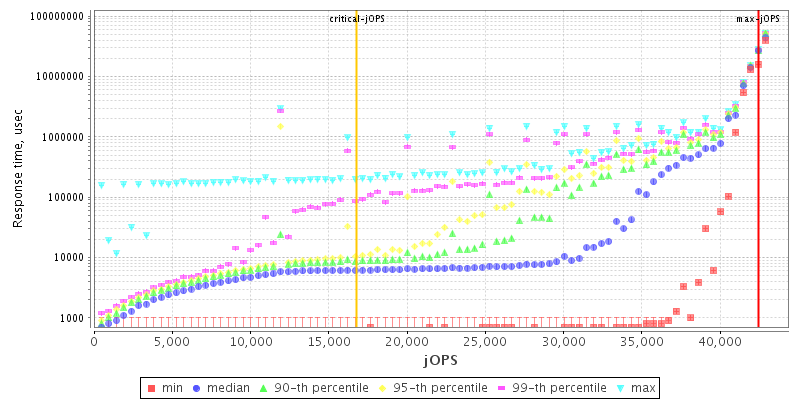

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttp://www.dell.com/
System SourceSingle Supplier
System Designation2U
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores16
Total Threads32
Total Memory Amount (GB)128
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameDell PowerEdge R720
VendorDell Inc.
Vendor URLhttp://www.dell.com
AvailableDec-2012
ModelDell PowerEdge R720
Form Factor2U
CPU NameIntel Xeon E5-2690
CPU CharacteristicsTurbo Boost Technology up to 3.80 GHz
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System16
Cores Per Chip8
Threads Per System32
Threads Per Core2
VersionNone
CPU Frequency (MHz)2900
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache20 MB I+D on chip per chip
Other CacheNone
Disk1 x 300GB 15K RPM SAS
File Systemext4
Memory Amount (GB)128
# and size of DIMM(s)16 x 8192 MB
Memory Details2Rx4 PC3-12800R-11, ECC
# and type of Network Interface Cards (NICs)4 x Broadcom NetXtreme BCM5720 Gigabit Ethernet
Power Supply Quantity and Rating (W)1 x 750
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server 6.4 (Santiago)
VendorRed Hat
Vendor URLhttp://www.redhat.com
VersionRed Hat Enterprise Linux Server release 6.4 (Santiago)-2.6.32-358.el6.x86_64
AvailableFeb-2013
Bitness64
Notes
  • SELinux disabled at OS boot up
  • intel_idle.max_cstate=1 at OS boot up
  • installed tuned-0.2.19-12.el6.noarch.rpm
  • installed irqbalance-0.55-34.el6.x86_64.rpm
Java Virtual Machine jvm_1
NameOracle Java SE 7u21
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava Hotspot 64-Bit Server VM, version 1.7.0_21
AvailableApr-2013
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • BIOS Tuning
    • System Profile was set to Performance
    Notes None
    OS Image os_Image_1
    JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
    OS Image Description os_1
    Tuning OS Tuning
    • Number of huge pages were defined = 56500
    Notes None
    JVM Instance jvm_Ctr_1
    Parts of Benchmark Controller
    JVM Instance Description jvm_1
    Command Line -Xms2g -Xmx2g -Xmn1536m
    Tuning None
    Notes None
    JVM Instance jvm_Backend_1
    Parts of Benchmark Backend
    JVM Instance Description jvm_1
    Command Line -server -showversion -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:-UseBiasedLocking -XX:+UseParallelOldGC -XX:+AlwaysPreTouch -Xms31G -Xmx31G -Xmn29G
    Tuning
    • numactl used to affinitize each Backend JVM to a single memory node, eg
    • numactl --cpunodebind=$gnum --localalloc
    Notes None
    JVM Instance jvm_TxInjector_1
    Parts of Benchmark TxInjector
    JVM Instance Description jvm_1
    Command Line -Xms2g -Xmx2g -Xmn1536m
    Tuning
    • numactl used to affinitize each TxInjector JVM to a single memory node, eg
    • numactl --cpunodebind=$gnum --localalloc
    • nice -20 used for each TxInjector invocation
    Notes None
    max-jOPS = jOPS passed before the First Failure
    Pass/Fail Pass Pass Fail Fail Fail
    jOPS 41954 42431 42907 43384 43861
    critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
    Response time percentile is 99-th
    SLA (us) 10000 50000 100000 200000 500000 Geomean
    jOPS 9296 12157 16813 24388 28700 16779
      Percentile
      10-th 50-th 90-th 95-th 99-th 100-th
    500us - / 477 - / 477 - / 477 - / 477 - / 477 - / 477
    1000us 2860 / 3337 1430 / 1907 953 / 1430 477 / 953 - / 477 - / 477
    5000us 32896 / 33372 10488 / 10965 7628 / 8105 7151 / 7628 6198 / 6674 - / 477
    10000us 34326 / 34803 30989 / 30035 20500 / 11919 15733 / 11919 9535 / 9058 - / 477
    20000us 35279 / 35756 32896 / 33372 26221 / 11919 21454 / 11919 11442 / 10965 1430 / 477
    50000us 35756 / 36233 34326 / 34803 29082 / 25268 24314 / 11919 12395 / 11919 3337 / 477
    100000us 36233 / 36710 34326 / 34803 29082 / 25268 26698 / 11919 18593 / 11919 3337 / 477
    200000us 37186 / 37663 35756 / 36233 31942 / 31465 29082 / 11919 26698 / 11919 17640 / 10965
    500000us 40047 / 40524 38140 / 38617 35756 / 33372 35756 / 11919 32896 / 11919 31942 / 11919
    1000000us 40524 / 41000 40047 / 40524 39570 / 37663 38617 / 11919 38140 / 11919 37186 / 11919

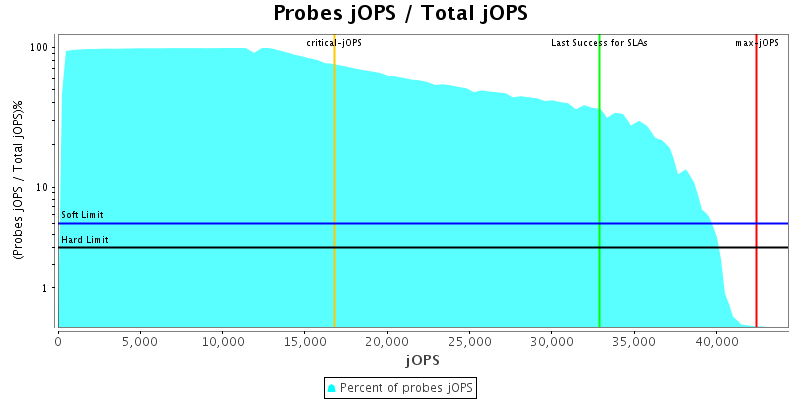

    Probes jOPS / Total jOPS
    Request Mix Accuracy
    Note
    (Actual % in the Mix - Expected % in the Mix) must be within:
    'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
    'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
    There were no non-critical failures in Response Time curve building
    Delay between status pings
    IR/PR Accuracy
    This section lists properties only set by user
    Property Name Default Controller
    specjbb.forkjoin.workers 32 24
    specjbb.group.count 1 2
    specjbb.txi.pergroup.count 1 1
    View table in csv format

    Level: COMPLIANCE
    Check Agent Result
    Check properties on compliance All PASSED

    Level: CORRECTNESS
    Check Agent Result
    Compare SM and HQ Inventory All PASSED
    High-bound (max attempted) is 47675 IR
    High-bound (settled) is 43561 IR
