Oracle Corporation SPARC T5-2 114492 SPECjbb2013-MultiJVM max-jOPS
43963 SPECjbb2013-MultiJVM critical-jOPS
Tested by: Oracle Corporation () Test Sponsor: Oracle Corporation Test location: Hillsboro, OR Test date: Feb 13, 2014
SPEC license #: 6 Hardware Availability: Mar-2013 Software Availability: Mar-2014 Publication: Mar 06, 2014
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores32
Total Threads256
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSPARC T5-2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
AvailableMar-2013
ModelSPARC T5-2
Form Factor3RU rackmount server
CPU NameSPARC T5
CPU Characteristics3600 MHz SPARC T5
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System32
Cores Per Chip16
Threads Per System256
Threads Per Core8
VersionNone
CPU Frequency (MHz)3600
Primary Cache16 KB I + 16 KB D per core
Secondary Cache128 KB I+D per core
Tertiary Cache8 MB I+D per chip
Other CacheNone
Disk2 x 300 GB 10000 RPM SAS disk drive
File SystemZFS
Memory Amount (GB)512
# and size of DIMM(s)32 x 16 GB
Memory Details16GB 2Rx8 PC3-12800R ECC CL11; each slot populated
# and type of Network Interface Cards (NICs)Onboard 10/100/1000 NIC
Power Supply Quantity and Rating (W)1 x 2060W AC power supply
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
TuningNone
NotesNone
Other Hardware network_1
NameNone.
VendorNone.
Vendor URLNone.
VersionNone.
AvailableNone.
BitnessNone.
NotesNone.
Operating System os_1
NameOracle Solaris 11.1
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
VersionOracle Solaris 11.1.10.6.0
AvailableSep-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0
AvailableMarch-2014
Bitness64
NotesNone
Other Software other_1
NameNone.
VendorNone.
Vendor URLNone.
VersionNone.
AvailableNone.
BitnessNone.
NotesNone.
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 113274 114492 115710 116928 118146
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 22533 39382 45675 57855 70035 43963
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1218 - / 1218 - / 1218 - / 1218 - / 1218 - / 1218
1000us - / 1218 - / 1218 - / 1218 - / 1218 - / 1218 - / 1218
5000us 65772 / 66990 19488 / 20706 8526 / 9744 7308 / 8526 6090 / 7308 - / 1218
10000us 68208 / 69426 62118 / 63336 37758 / 38976 31668 / 32886 21924 / 23142 - / 1218
20000us 69426 / 70644 66990 / 68208 59682 / 60900 54810 / 56028 36540 / 34104 - / 1218
50000us 70644 / 71862 66990 / 68208 62118 / 63336 59682 / 60900 41412 / 35322 14616 / 2436
100000us 71862 / 73080 69426 / 70644 65772 / 66990 62118 / 63336 46284 / 45066 14616 / 2436
200000us 73080 / 74298 70644 / 71862 66990 / 68208 65772 / 66990 57246 / 58464 31668 / 12180
500000us 114492 / 108402 80388 / 75516 70644 / 71862 70644 / 71862 69426 / 70644 58464 / 51156
1000000us 114492 / - 114492 / - 86478 / 87696 80388 / 79170 74298 / 75516 65772 / 66990
Probes jOPS / Total jOPS

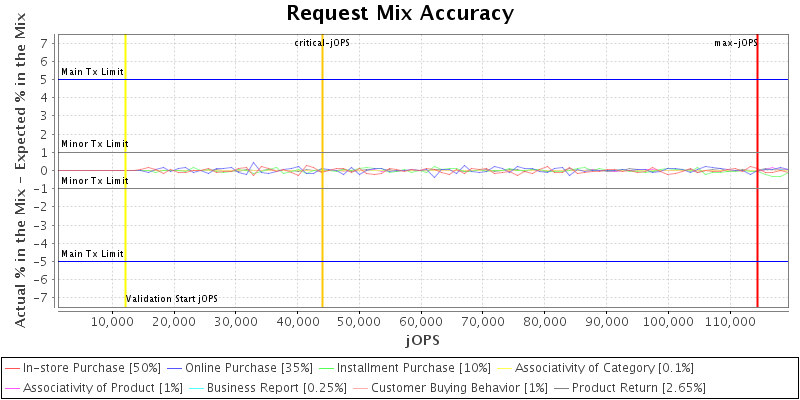

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

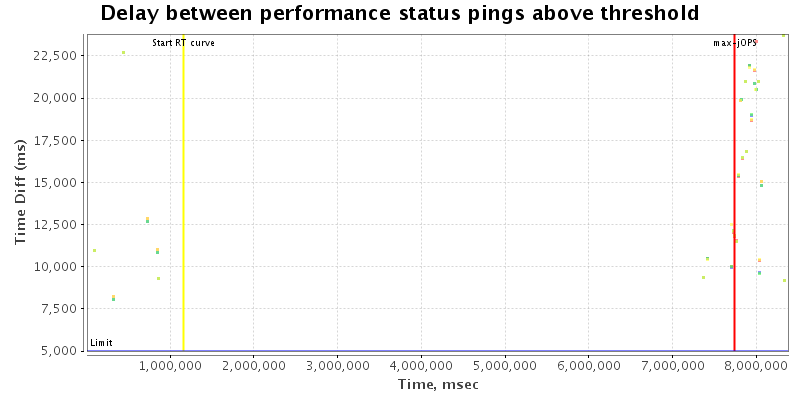

Delay between status pings
IR/PR Accuracy
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None.
Notes None.
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning A processor set was configured containing the virtual processors (HW threads) of CPU 1.
Notes The controller and group 2 (backend and transaction injector) were run in the processor set. Group 1 (backend and transaction injector) was run outside the processor set.
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx2048m -Xms2048m -Xmn1536m -Dspecjbb.forkjoin.workers=129 -Dspecjbb.group.count=2
Tuning A processor set was configured containing the virtual processors (HW threads) of CPU 1.
Notes Controller was run in processor set 1. The object-caching memory allocation library libumem was used by setting the environment variable LD_PRELOAD=libumem.so.
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xmx182g -Xms182g -Xmn167g -XX:+UseParallelOldGC -XX:ParallelGCThreads=107 -XX:+UseLargePages -XX:LargePageSizeInBytes=2g -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=16 -XX:TargetSurvivorRatio=90
Tuning A processor set was configured containing the virtual processors (HW threads) of CPU 1.
Notes The controller and group 2 (backend and transaction injector) were run in the processor set. Group 1 (backend and transaction injector) was run outside the processor set. The object-caching memory allocation library libumem was used by setting the environment variable LD_PRELOAD=libumem.so.
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx2048m -Xms2048m -Xmn1536m
Tuning A processor set was configured containing the virtual processors (HW threads) of CPU 1.
Notes The controller and group 2 (backend and transaction injector) were run in the processor set. Group 1 (backend and transaction injector) was run outside the processor set. The object-caching memory allocation library libumem was used by setting the environment variable LD_PRELOAD=libumem.so.
This section lists properties only set by user
Property Name Default Controller
specjbb.group.count 1 2
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 121800 IR
High-bound (settled) is 115206 IR
