Cisco UCS B260 M4 CODE DEFECT (CD) RESULT
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: February 13, 2014
SPEC license #: 9019 Hardware Availability: May-2014 Software Availability: March-2014 Publication: Apr 02, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttp://www.cisco.com
System SourceSingle Supplier
System DesignationBlade Server
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores30
Total Threads60
Total Memory Amount (GB)256
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameCisco UCS B260 M4
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
AvailableMay-2014
ModelCisco UCS B260 M4
Form Factor1U
CPU NameIntel Xeon E7-4890 v2
CPU Characteristics15-Cores, 2.80GHz (Turbo Boost Technology up to 3.4 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System30
Cores Per Chip15
Threads Per System60
Threads Per Core2
VersionNone
CPU Frequency (MHz)2800
Primary Cache32 KB(I)+32 KB(D)on chip per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache37.5MB (I+D) on chip per chip
Other CacheNone
Disk2 x 147 GB SAS SATA 15K RPM
File Systemext4
Memory Amount (GB)256
# and size of DIMM(s)32 x 8192MB
Memory Details2RX4 PC3L-12800R-11-12-E2-P2, running 1333MHz
# and type of Network Interface Cards (NICs)1 X 10 Gbit NIC
Power Supply Quantity and Rating (W)Four 2500W, 208V single-phase, hot-swappable, redundant power supplies
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 6.4 (Santiago)
AvailableFeb-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0
AvailableMarch-2014
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance set to Performance Mode
  • CPU Performance set to Enterprise
  • Memory Clock Throttling set to Performance
  • Processor C6 Report set to disabled
  • Processor C1E set to disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning
  • Huge Pages Enabled on OS, vm.nr_hugepages is set to 122,000 in sysctl.conf
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -XX:ParallelGCThreads=30 -XX:TargetSurvivorRatio=90 -XX:SurvivorRatio=8 -XX:+AggressiveOpts -Xmx115g -Xms115g -Xmn112g
Tuning Affinity Masks
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 90736 91499 92261 93024 93786
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 19443 24018 27907 39268 47655 30021
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 762 - / 762 - / 762 - / 762 - / 762 - / 762
1000us 5337 / 6100 2287 / 3050 762 / 1525 762 / 1525 - / 762 - / 762
5000us 44987 / 45749 22112 / 22875 16012 / 15250 12962 / 13725 10675 / 11437 - / 762
10000us 46512 / 47274 43462 / 44224 30500 / 29737 25925 / 26687 19062 / 19825 - / 762
20000us 46512 / 47274 44987 / 45749 40412 / 39649 36600 / 37362 22112 / 22875 5337 / 1525
50000us 47274 / 48037 45749 / 46512 41937 / 42699 38887 / 39649 23637 / 24400 9912 / 1525
100000us 48799 / 49562 46512 / 47274 44224 / 44987 40412 / 39649 29737 / 26687 9912 / 1525
200000us 50324 / 51087 48037 / 48799 45749 / 46512 44987 / 45749 38887 / 39649 16775 / 4575
500000us 65574 / 60999 51849 / 52612 49562 / 50324 48799 / 49562 47274 / 48037 31262 / 32025
1000000us 91499 / 77774 65574 / 66337 58712 / 57949 54899 / 55662 51087 / 51849 38124 / 33550
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

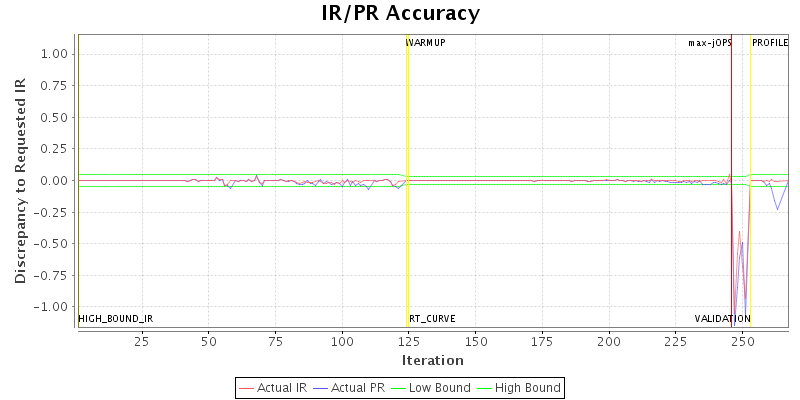

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.read 60000 480000
specjbb.customerDriver.threads 64 128
specjbb.forkjoin.workers 60 60
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 76249 IR
High-bound (settled) is 73069 IR
