Dell Inc. PowerEdge R730 94903 SPECjbb2015-MultiJVM max-jOPS
29033 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: Sep 17, 2015
SPEC license #: 55 Hardware Availability: Jun-2015 Software Availability: Sep-2015 Publication: Oct 28, 2015
Benchmark Results Summary

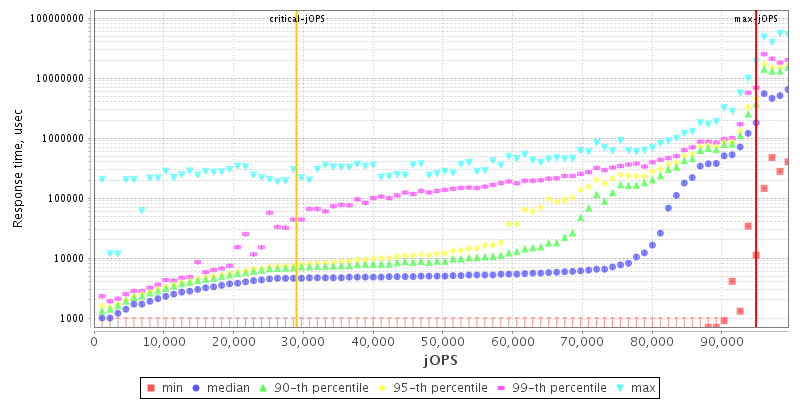

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttp://dell.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores36
Total Threads72
Total Memory Amount (GB)128
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameDell Inc. PowerEdge
VendorDell Inc.
Vendor URLhttp://dell.com/
AvailableJun-2015
ModelR730
Form Factor2U Rack.
CPU NameIntel Xeon E5-2699 v3
CPU Characteristics18 core, 2.30GHz, 45MB L3 Cache (Turbo Boost Technology up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System36
Cores Per Chip18
Threads Per System72
Threads Per Core2
Version1.0.9
CPU Frequency (MHz)2300
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache45MB (I+D) on chip per chip
Other CacheNone
Disk1 x 160GB SATA SSD
File Systemext4
Memory Amount (GB)256
# and size of DIMM(s)16 x 16GB
Memory Details2Rx4 PC4-2133P-R; slots A1-8, B1-8 populated
# and type of Network Interface Cards (NICs)4 x 1 Gbit NICs
Power Supply Quantity and Rating (W)1 x 750W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12
VendorSUSE
Vendor URLhttp://suse.com/
VersionSLES 12
AvailableOct-2014
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u60
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_60
AvailableAug-2015
Bitness64
Notesnote
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • System Profile set to Performance
  • Memory Patrol Scrub Disabled
  • Virtualization Technology Disabled
  • Cluster on Die Snoop mode
Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -Xloggc:GC.log
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:+AlwaysPreTouch -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:-UseBiasedLocking -XX:+AggressiveOpts -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -Xms29g -Xmx29g -Xmn27g -XX:ParallelGCThreads=18 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -Xloggc:GC.log
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -Xloggc:GC.log
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 93760 94903 96046 97190 98333
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 20009 24583 28814 34874 41734 29033
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1143 - / 1143 - / 1143 - / 1143 - / 1143 - / 1143
1000us 4574 / 5717 2287 / 3430 - / 1143 - / 1143 - / 1143 - / 1143
5000us 81182 / 82326 50310 / 51453 18295 / 19438 17151 / 18295 13721 / 14864 - / 1143
10000us 83469 / 84612 76608 / 77752 53740 / 54884 41163 / 42306 19438 / 20581 - / 1143
25000us 84612 / 85756 80039 / 81182 67461 / 68605 58314 / 59457 24012 / 25155 3430 / 1143
50000us 84612 / 85756 81182 / 82326 69748 / 70891 60601 / 61744 29729 / 25155 3430 / 1143
75000us 85756 / 86899 82326 / 83469 70891 / 72035 64031 / 65174 34302 / 35446 6860 / 1143
100000us 85756 / 86899 82326 / 83469 73178 / 72035 67461 / 68605 42306 / 41163 6860 / 1143
200000us 89186 / 90329 84612 / 85756 80039 / 81182 73178 / 72035 64031 / 65174 30872 / 1143
500000us 92616 / 93760 89186 / 90329 85756 / 86899 83469 / 84612 83469 / 84612 68605 / 61744
1000000us 94903 / - 92616 / 93760 91473 / 92616 91473 / 92616 91473 / 92616 83469 / 84612

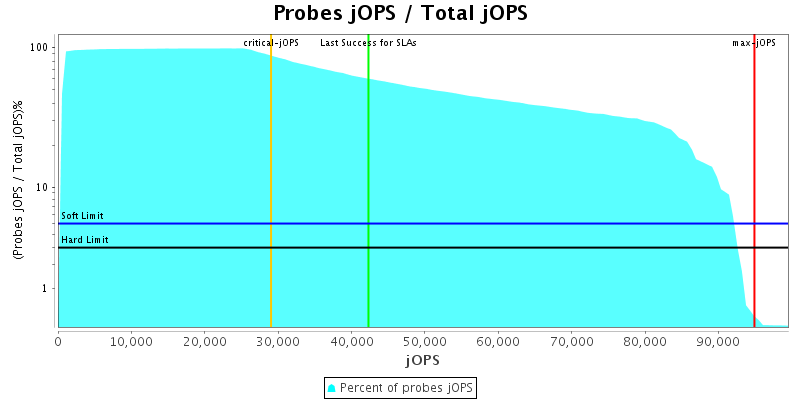

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1
specjbb.comm.connect.selector.runner.count 0 4 0 0 0 0 0 0 0 0
specjbb.comm.connect.timeouts.connect 60000 600000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.read 60000 600000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.write 60000 600000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.worker.pool.max 256 64 256 256 256 256 256 256 256 256
specjbb.comm.connect.worker.pool.min 1 32 1 1 1 1 1 1 1 1
specjbb.forkjoin.workers 72 {Tier1=54, Tier2=21, Tier3=10}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 72 18
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 114341 IR
High-bound (settled) is 100487 IR
