Dell Inc. PowerEdge R930 155746 SPECjbb2015-MultiJVM max-jOPS
96327 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: Oct 01, 2015
SPEC license #: 55 Hardware Availability: Jun-2015 Software Availability: Aug-2015 Publication: Oct 28, 2015
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttp://dell.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores72
Total Threads144
Total Memory Amount (GB)2048
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameDell Inc. PowerEdge
VendorDell Inc.
Vendor URLhttp://dell.com/
AvailableJun-2015
ModelR930
Form Factor4U Rack.
CPU NameIntel Xeon E7-8890 v3
CPU Characteristics18 core, 2.50GHz, 45MB L3 Cache (Turbo Boost Technology up to 3.30 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System72
Cores Per Chip18
Threads Per System144
Threads Per Core2
Version1.0.9
CPU Frequency (MHz)2500
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache45MB (I+D) on chip per chip
Other CacheNone
Disk1x 400GB SAS SSD
File Systemext4
Memory Amount (GB)2048
# and size of DIMM(s)64 x 32GB
Memory Details2Rx4 PC4-2133P-R; slots 1-8 of risers A-H populated
# and type of Network Interface Cards (NICs)4 x 1 Gbit NICs
Power Supply Quantity and Rating (W)2 x 1100
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server release 7.1
VendorRed Hat
Vendor URLhttp://redhat.com/
VersionRHEL 7.1
AvailableFeb-2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u60
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_60
AvailableAug-2015
Bitness64
Notesnote
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • System Profile set to Performance
  • Memory Patrol Scrub Disabled
  • Virtualization Technology Disabled
Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn3g -Xms4g -Xmx4g -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -Xloggc:GC.log
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:+AlwaysPreTouch -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:-UseBiasedLocking -XX:+AggressiveOpts -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:SurvivorRatio=14 -XX:TargetSurvivorRatio=95 -Xms485g -Xmx485g -Xmn445g -XX:ParallelGCThreads=36 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -Xloggc:GC.log
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn5g -Xms6g -Xmx6g -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -Xloggc:GC.log
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 154053 155746 157439 159132 160825
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 58404 102419 107780 112577 114270 96327
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1693 - / 1693 - / 1693 - / 1693 - / 1693 - / 1693
1000us 5079 / 6772 1693 / 3386 - / 1693 - / 1693 - / 1693 - / 1693
5000us 138817 / 140510 120195 / 121888 37244 / 38936 32165 / 33858 23700 / 25393 - / 1693
10000us 140510 / 142203 130353 / 132045 99881 / 101573 79566 / 81259 57558 / 59251 - / 1693
25000us 143896 / 145589 137124 / 138817 123581 / 125274 120195 / 121888 101573 / 103266 20315 / 1693
50000us 145589 / 147281 140510 / 142203 132045 / 133738 125274 / 126967 110038 / 106652 57558 / 13543
75000us 145589 / 147281 140510 / 142203 135431 / 137124 128660 / 130353 113424 / 111731 57558 / 13543
100000us 145589 / 147281 140510 / 142203 135431 / 137124 132045 / 133738 113424 / 115117 76180 / 13543
200000us 148974 / 150667 145589 / 147281 138817 / 140510 137124 / 138817 120195 / 121888 76180 / 22008
500000us 154053 / 155746 148974 / 150667 145589 / 147281 143896 / 142203 138817 / 140510 121888 / 116809
1000000us 155746 / - 154053 / 155746 152360 / 154053 150667 / 152360 147281 / 148974 140510 / 142203
Probes jOPS / Total jOPS

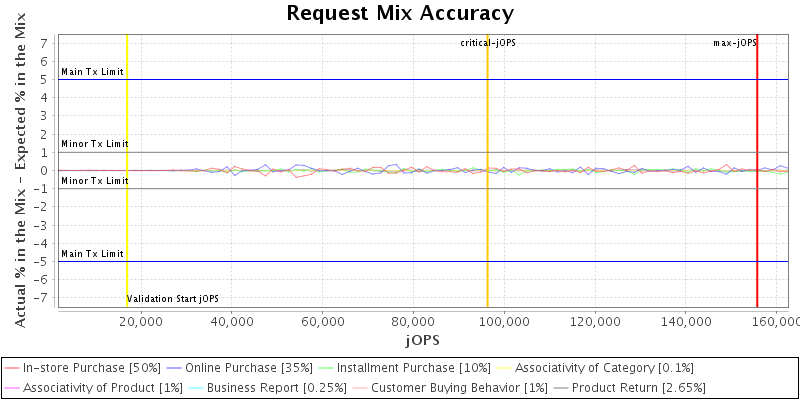

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

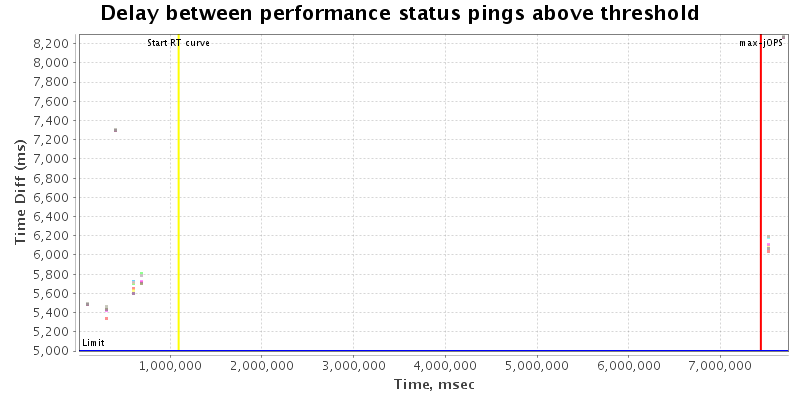

Delay between status pings

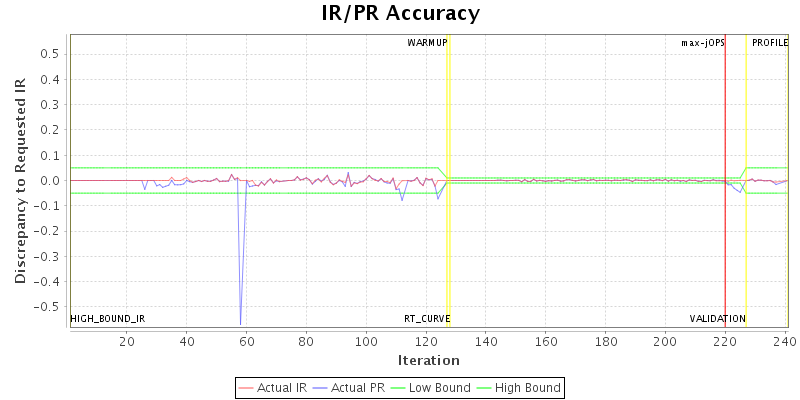

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 144 {Tier1=120, Tier2=60, Tier3=24}
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 169289 IR
High-bound (settled) is 160131 IR
