Hewlett-Packard Company Integrity Superdome X 341516 SPECjbb2015-MultiJVM max-jOPS
78544 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Fort Collins, CO, USA Test date: Sep 30, 2015
SPEC license #: 3 Hardware Availability: Dec-2014 Software Availability: Jul-2015 Publication: Oct 28, 2015
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips16
Total Cores240
Total Threads480
Total Memory Amount (GB)4096
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameIntegrity Superdome X
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
AvailableDec-2014
ModelIntegrity Superdome X
Form Factor42U
CPU NameIntel Xeon E7-2890 v2
CPU Characteristics15 Core, 2.80 GHz, 37.5 MB L3 Cache (Turbo Boost Technology up to 3.40 GHz)
Number of Systems1
Nodes Per System1
Chips Per System16
Cores Per System240
Cores Per Chip15
Threads Per System480
Threads Per Core2
VersionP79 06/23/2015
CPU Frequency (MHz)2800
Primary Cache32 KB I + 32 KB D per core
Secondary Cache256 KB I+D per core
Tertiary Cache37.5 MB I+D on chip per chip
Other CacheNone
Disk8 x 900 GB 10K RPM SAS
File SystemBTRFS, XFS
Memory Amount (GB)4096
# and size of DIMM(s)128 x 32 GB
Memory Details32 GB 4Rx4 PC3-14900L CL13 ECC
# and type of Network Interface Cards (NICs)8 x 560FLB Ethernet 10Gb 2-port Adapter
Power Supply Quantity and Rating (W)12 x 2400
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12
VendorSUSE
Vendor URLhttp://www.suse.com/
Version3.12.28-4
AvailableOct-2014
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u51
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_51
AvailableJul-2015
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description os_1
Tuning
  • ulimit -v 800000000
  • ulimit -m 800000000
  • ulimit -l 800000000
  • ulimit -n 32768
  • /proc/sys/kernel/sched_latency_ns=8000000
  • /proc/sys/kernel/sched_min_granularity_ns=6000000
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -server -Xmx30g -Xms25g -Xmn25g -XX:+UseParallelOldGC
Tuning numactl used to affinitize the Controller to a single NUMA node, eg:
  • numactl --cpunodebind=3
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xmx200g -Xms200g -Xmn100g -XX:+UseParallelOldGC
Tuning numactl used to affinitize each Backend JVM to a single NUMA node, eg:
  • numactl --cpunodebind=$gnum --membind=$gnum
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -server -Xmx30g -Xms25g -Xmn25g -XX:+UseParallelOldGC
Tuning numactl used to affinitize each TxInjector JVM to a single NUMA node, eg:
  • numactl --cpunodebind=$gnum --membind=$gnum
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 333665 337590 341516 345441 349367
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 45143 75892 91856 95519 99445 78544
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 3925 - / 3925 - / 3925 - / 3925 - / 3925 - / 3925
1000us - / 3925 - / 3925 - / 3925 - / 3925 - / 3925 - / 3925
5000us 129541 / 133466 58882 / 51031 39255 / 31404 27478 / 31404 3925 / 7851 - / 3925
10000us 176646 / 180572 102062 / 105988 58882 / 62808 58882 / 51031 43180 / 47106 - / 3925
25000us 204124 / 208050 172721 / 176646 133466 / 137391 117764 / 121690 78509 / 70658 - / 3925
50000us 231603 / 235528 184497 / 188423 160944 / 164870 141317 / 145242 98137 / 82435 - / 3925
75000us 247305 / 251230 192348 / 196273 172721 / 176646 153093 / 157019 102062 / 82435 7851 / 11776
100000us 263006 / 266932 196273 / 200199 172721 / 176646 153093 / 157019 102062 / 94211 62808 / 15702
200000us 310112 / 314038 223752 / 227677 188423 / 192348 176646 / 180572 129541 / 109913 62808 / 23553
500000us 341516 / - 310112 / 314038 274783 / 278708 263006 / 266932 200199 / 204124 62808 / 23553
1000000us 341516 / - 341516 / - 329739 / 333665 325814 / 329739 306187 / 310112 184497 / 149168

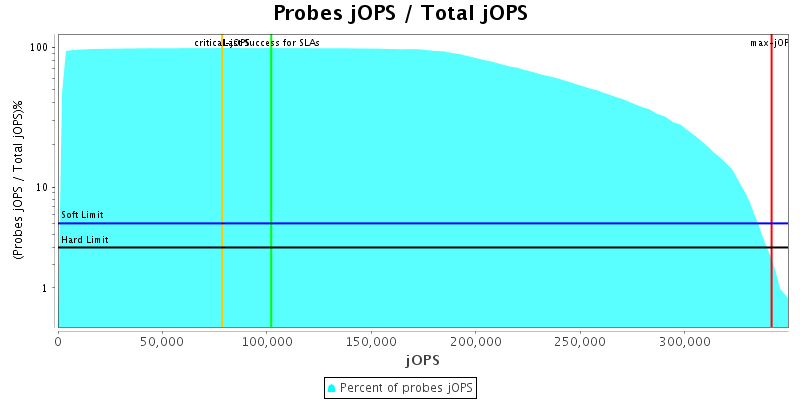

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 420
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 420
specjbb.controller.handshake.period 5000 20000
specjbb.controller.handshake.timeout 600000 800000
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.customerDriver.threads 64 128
specjbb.forkjoin.workers 480 240
specjbb.group.count 1 16
specjbb.heartbeat.threshold 100000 600000
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 392547 IR
High-bound (settled) is 371348 IR
