Cisco Systems Cisco UCS C220 M4 94667 SPECjbb2015-MultiJVM max-jOPS
71951 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: March 10, 2016
SPEC license #: 9019 Hardware Availability: April-2016 Software Availability: April-2016 Publication: Apr 13, 2016
Benchmark Results Summary

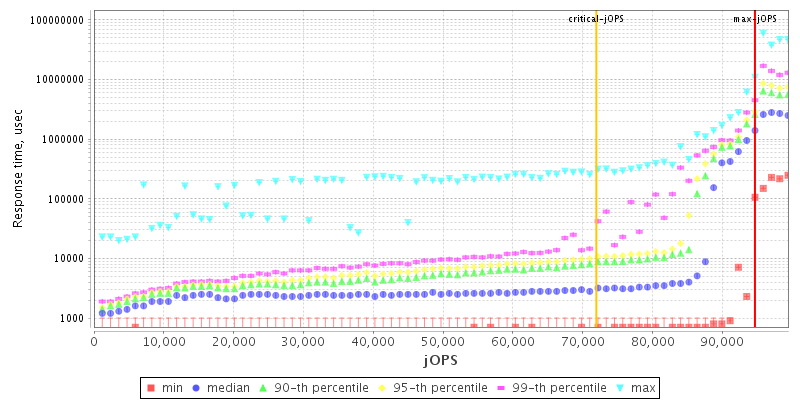

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores44
Total Threads88
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameCisco UCS C220 M4
VendorCisco Systems
Vendor URLhttp://www.cisco.com
AvailableApril-2016
ModelCisco UCS C220 M4
Form Factor1U Rack
CPU NameIntel Xeon E5-2699 v4
CPU Characteristics22Cores, 2.20 GHz, 55MB L3 Cache (Turbo Boost Technology up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System44
Cores Per Chip22
Threads Per System88
Threads Per Core2
VersionNone
CPU Frequency (MHz)2200
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache55MB (I+D) on chip per chip
Other CacheNone
Disk1x 400GB SSD SAS
File Systemext4
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64 GB 4DRx4 PC4-2400T-LD1
# and type of Network Interface Cards (NICs)1x 1 Gbit NIC
Power Supply Quantity and Rating (W)2 x 770W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 6.7
AvailableJuly-2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u74
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_74
AvailableFeb-2016
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Energy Performance set to Performance Mode
  • CPU Performance set to Enterprise
  • Memory Low Voltage DDR Mode set to Performance Mode
  • Processor C6 Report set to disabled
  • QPI Snoop Mode set to Home Directory Snoop with OSB
Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning
  • SE Linux = Disabled
  • tuned-adm profile set to Latency Performance
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms475g -Xmx475g -Xmn440g -XX:SurvivorRatio=48 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=44 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize each Backend JVM to a single memory node
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -showversion -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 93484 94667 95851 97034 98217
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 52658 73959 77508 78810 81058 71951
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1183 - / 1183 - / 1183 - / 1183 - / 1183 - / 1183
1000us 4733 / 5917 - / 1183 - / 1183 - / 1183 - / 1183 - / 1183
5000us 88750 / 89934 85200 / 86384 46150 / 47334 34317 / 35500 20117 / 21300 - / 1183
10000us 88750 / 89934 87567 / 88750 79284 / 80467 71000 / 72184 52067 / 53250 - / 1183
25000us 88750 / 89934 87567 / 88750 85200 / 86384 84017 / 85200 75734 / 72184 5917 / 7100
50000us 88750 / 89934 87567 / 88750 85200 / 86384 84017 / 85200 81650 / 73367 44967 / 7100
75000us 88750 / 89934 87567 / 88750 85200 / 86384 85200 / 86384 81650 / 76917 44967 / 7100
100000us 88750 / 89934 87567 / 88750 85200 / 86384 85200 / 86384 81650 / 80467 44967 / 7100
200000us 91117 / 92301 88750 / 89934 86384 / 87567 85200 / 86384 82834 / 84017 52067 / 28400
500000us 92301 / 93484 91117 / 92301 88750 / 89934 87567 / 88750 85200 / 86384 85200 / 84017
1000000us 94667 / - 93484 / 94667 92301 / 93484 91117 / 92301 91117 / 92301 85200 / 86384
Probes jOPS / Total jOPS

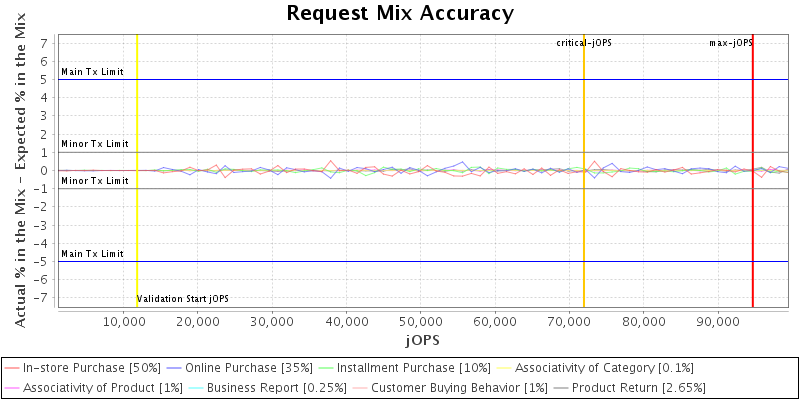

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 88
specjbb.comm.connect.worker.pool.min 1 44
specjbb.forkjoin.workers 88 {Tier1=125, Tier2=62, Tier3=22}
specjbb.group.count 1 2
specjbb.mapreducer.pool.size 88 22
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 118334 IR
High-bound (settled) is 98645 IR
