Hewlett Packard Enterprise ProLiant DL580 Gen9 186968 SPECjbb2015-MultiJVM max-jOPS
114609 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: May 9, 2016
SPEC license #: 3 Hardware Availability: May-2016 Software Availability: Apr-2016 Publication: Jun 06, 2016
Benchmark Results Summary

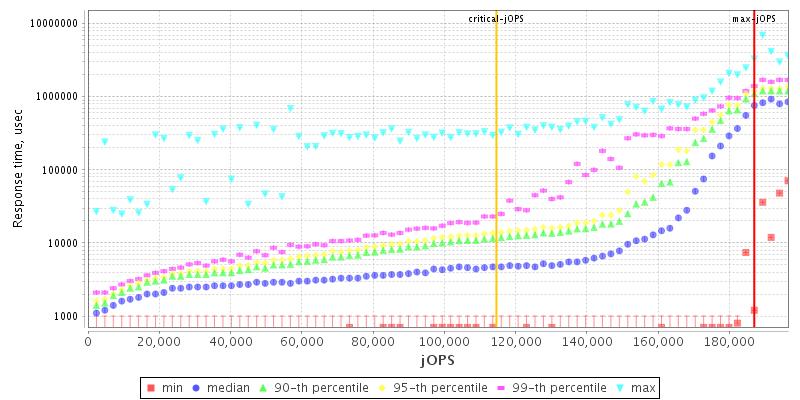

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips4
Total Cores96
Total Threads192
Total Memory Amount (GB)2048
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL580 Gen9
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableMay-2016
ModelProLiant DL580 Gen9
Form Factor4U Rack
CPU NameIntel Xeon E7-8890 v4
CPU Characteristics24 Core, 2.20 GHz, 60 MB L3 Cache (Turbo Boost Technology up to 3.4 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System96
Cores Per Chip24
Threads Per System192
Threads Per Core2
VersionU17 04/26/2016
CPU Frequency (MHz)2200
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache60 MB I+D on chip per chip
Other CacheNone
Disk1 x 400 GB SSD SAS
File SystemXFS
Memory Amount (GB)512
# and size of DIMM(s)64 x 32768 MB
Memory Details32 GB 2Rx4 PC4-2400T-R, running at 1600MHz
# and type of Network Interface Cards (NICs)HP Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)4 x 1500
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP1
VendorSUSE
Vendor URLhttps://www.suse.com/
Version3.12.49-11-default
AvailableDec-2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u92
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_92
AvailableApr-2016
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Hyper Threading=Enabled
  • QPI Snoop Configuration=Home Snoop
  • Thermal Configuration=Maximum Cooling
  • Power Profile=Maximum Performance
  • Collaborative Power Control=Disabled
  • Processor Power and Utilization Monitoring=Disabled
  • Memory Patrol Scrub=Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 1 > /proc/sys/kernel/sched_compat_yield
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-Xms470g -Xmx470g -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking -XX:+UseParallelOldGC -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=36 -XX:MaxTenuringThreshold=15 -server -Xmn430g -XX:LargePageSizeInBytes=2m -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:+AggressiveOpts -XX:+DisableExplicitGC

Tuning

Used numactl to affinitize each Backend JVM to NUMA node.

  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 184601 186968 189334 191701 194068
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 67450 117150 130956 136084 140423 114609
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2367 - / 2367 - / 2367 - / 2367 - / 2367 - / 2367
1000us 7100 / 9467 - / 2367 - / 2367 - / 2367 - / 2367 - / 2367
5000us 165668 / 168034 130167 / 127801 54434 / 56800 44967 / 47334 33134 / 28400 - / 2367
10000us 170401 / 172768 151468 / 153834 99401 / 101767 87567 / 89934 66267 / 68634 - / 2367
25000us 172768 / 175134 165668 / 168034 151468 / 153834 146734 / 149101 115967 / 118334 9467 / 2367
50000us 175134 / 177501 168034 / 170401 158568 / 160934 151468 / 153834 132534 / 127801 54434 / 4733
75000us 177501 / 179868 172768 / 175134 163301 / 165668 156201 / 153834 134901 / 137267 54434 / 4733
100000us 177501 / 179868 172768 / 175134 163301 / 165668 158568 / 160934 142001 / 137267 54434 / 4733
200000us 182234 / 184601 175134 / 177501 168034 / 170401 168034 / 170401 149101 / 151468 54434 / 4733
500000us 186968 / - 182234 / 184601 177501 / 179868 175134 / 177501 168034 / 170401 149101 / 56800
1000000us 186968 / - 186968 / - 184601 / 186968 182234 / 184601 182234 / 184601 172768 / 175134
Probes jOPS / Total jOPS

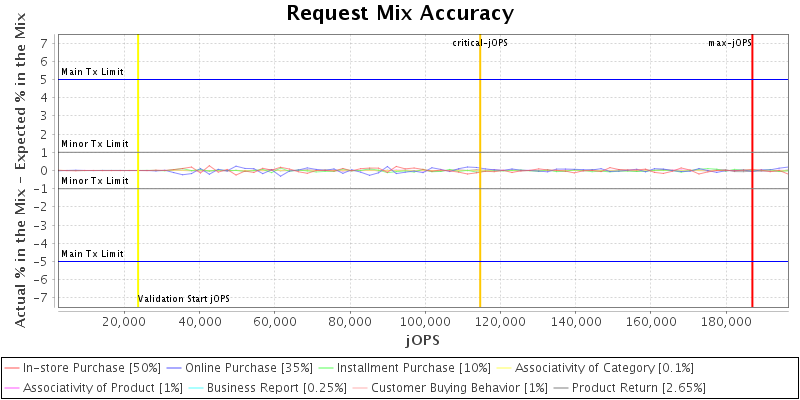

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

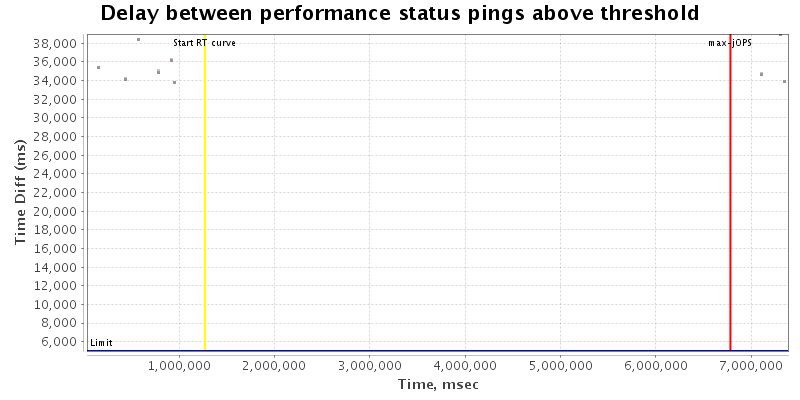

Delay between status pings

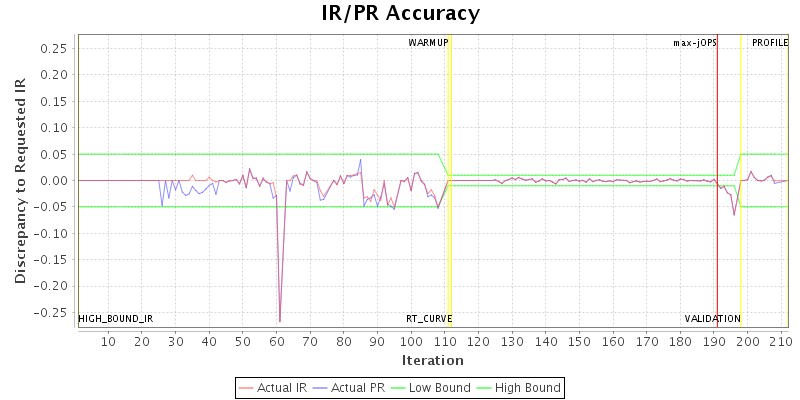

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.controller.maxir.maxFailedPoints 3 3
specjbb.forkjoin.workers 192 {Tier1=170, Tier2=85, Tier3=35}
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 236668 IR
High-bound (settled) is 198484 IR
