Hewlett Packard Enterprise Synergy 480 Gen9 94667 SPECjbb2015-Distributed max-jOPS
67214 SPECjbb2015-Distributed critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: August 4, 2016
SPEC license #: 3 Hardware Availability: Jan-2017 Software Availability: Jul-2016 Publication: Nov 09, 2016
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationCompute Module
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips2
Total Cores44
Total Threads88
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSynergy 480 Gen9
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableJan-2017
ModelSynergy 480 Gen9
Form FactorHalf-height Compute Module
CPU NameIntel Xeon E5-2699 v4
CPU Characteristics22 Core, 2.2 GHz, 55 MB L3 Cache (Turbo Boost Technology up to 3.6 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System44
Cores Per Chip22
Threads Per System88
Threads Per Core2
VersionI37 07/06/2016
CPU Frequency (MHz)2200
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache55 MB I+D on chip per chip
Other CacheNone
Disk1 x 300 GB SAS 15000 RPM
File SystemXFS
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64 GB 4Rx4 PC4-2400T-LD
# and type of Network Interface Cards (NICs)Synergy 3820C 10/20Gb CNA
Power Supply Quantity and Rating (W)6 x 2650
Other HardwareNone
Cabinet/Housing/EnclosureSynergy 12000 Frame
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server 7.2
VendorRedHat
Vendor URLhttp://redhat.com/
Version3.10.0-327
AvailableNov-2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u102
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_102
AvailableJul-2016
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware hw_2
NameProLiant DL180 Gen9
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableMar-2016
ModelProLiant DL180 Gen9
Form Factor2U Rack
CPU NameIntel Xeon E5-2695 v4
CPU Characteristics18 Core, 2.1 GHz, 45 MB L3 Cache (Turbo Boost Technology up to 3.3 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System36
Cores Per Chip18
Threads Per System72
Threads Per Core2
VersionU20 06/24/2016
CPU Frequency (MHz)2100
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache45 MB I+D on chip per chip
Other CacheNone
Disk1 x 1 TB SATA 7200 RPM
File SystemXFS
Memory Amount (GB)256
# and size of DIMM(s)8 x 32 GB
Memory Details32 GB 2Rx4 PC4-2400T-R
# and type of Network Interface Cards (NICs)HP Ethernet 1 Gb 2-Port
Power Supply Quantity and Rating (W)2 x 900
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameSUSE Linux Enterprise Server 12 SP1
VendorSUSE
Vendor URLhttps://www.suse.com/
Version3.12.49-11-default
AvailableDec-2015
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 8u102
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_102
AvailableJul-2016
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Hyper Threading=Enabled
  • QPI Snoop Configuration=Home Snoop
  • Power Profile=Maximum Performance
  • Thermal Configuration=Maximum Cooling
  • Collaborative Power Control=Disabled
  • Processor Power and Utilization Monitoring=Disabled
  • Memory Patrol Scrub=Disabled
  • Memory Refresh Rate=1x Refresh
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(2)
OS Image Description os_1
Tuning
  • SELINUX=disabled
  • tuned-adm profile=throughput-performance
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 175000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-XX:-UsePerfData -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms480g -Xmx480g -Xmn470g -XX:SurvivorRatio=48 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=44 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -XX:MaxMetaspaceSize=256m -XX:MetaspaceSize=256m

Tuning None
Notes

Used numactl to affinitize each Backend JVM to NUMA node.

  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning
  • Hyper Threading=Enabled
  • QPI Snoop Configuration=Home Snoop
  • Power Profile=Maximum Performance
  • Thermal Configuration=Maximum Cooling
  • Collaborative Power Control=Disabled
  • Processor Power and Utilization Monitoring=Disabled
  • Memory Refresh Rate=1x Refresh
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(2)
OS Image Description os_2
Tuning
  • tuned-adm profile=throughput-performance
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseCondCardMark -XX:ParallelGCThreads=22 -XX:-UsePerfData -XX:+UseParallelOldGC
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseCondCardMark -XX:ParallelGCThreads=22 -XX:-UsePerfData -XX:+UseParallelOldGC
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 93484 94667 95851 97034 98217
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 47925 71338 72506 73840 74945 67214
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1183 - / 1183 - / 1183 - / 1183 - / 1183 - / 1183
1000us 3550 / 1183 - / 1183 - / 1183 - / 1183 - / 1183 - / 1183
5000us 89934 / 91117 78100 / 76917 37867 / 39050 31950 / 33134 22483 / 23667 - / 1183
10000us 91117 / 92301 87567 / 88750 69817 / 71000 62717 / 63900 48517 / 47334 2367 / 3550
25000us 91117 / 92301 89934 / 91117 86384 / 85200 84017 / 85200 75734 / 60350 41417 / 7100
50000us 93484 / 92301 89934 / 91117 86384 / 87567 84017 / 85200 75734 / 63900 41417 / 7100
75000us 93484 / 92301 89934 / 91117 87567 / 88750 86384 / 85200 75734 / 71000 41417 / 7100
100000us 93484 / 92301 89934 / 91117 87567 / 88750 86384 / 87567 75734 / 73367 41417 / 7100
200000us 93484 / 94667 91117 / 92301 88750 / 89934 87567 / 88750 84017 / 85200 55617 / 23667
500000us 94667 / - 92301 / 93484 91117 / 92301 89934 / 91117 88750 / 89934 84017 / 81650
1000000us 94667 / - 94667 / - 94667 / 93484 92301 / 93484 91117 / 92301 87567 / 88750
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

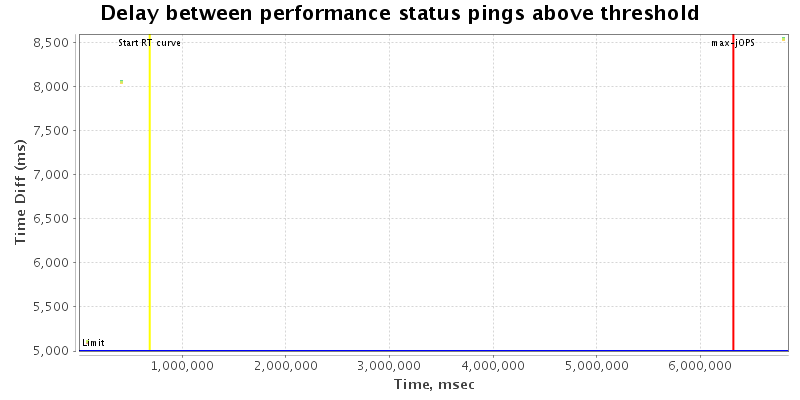

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group2.Backend.beJVM
specjbb.comm.connect.selector.runner.count 0 0 4 4
specjbb.comm.connect.timeouts.connect 60000 60000 600000 600000
specjbb.comm.connect.timeouts.read 60000 60000 600000 600000
specjbb.comm.connect.timeouts.write 60000 60000 600000 600000
specjbb.comm.connect.worker.pool.max 256 256 64 64
specjbb.controller.host localhost 10.10.0.46
specjbb.controller.maxir.maxFailedPoints 3 3
specjbb.forkjoin.workers 72 72 {} {}
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 118334 IR
High-bound (settled) is 98645 IR
