Hewlett Packard Enterprise Synergy 680 Gen9 182102 SPECjbb2015-Composite max-jOPS
82761 SPECjbb2015-Composite critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: August 04, 2016
SPEC license #: 3 Hardware Availability: Jan-2017 Software Availability: Jul-2016 Publication: Nov 09, 2016
Benchmark Results Summary

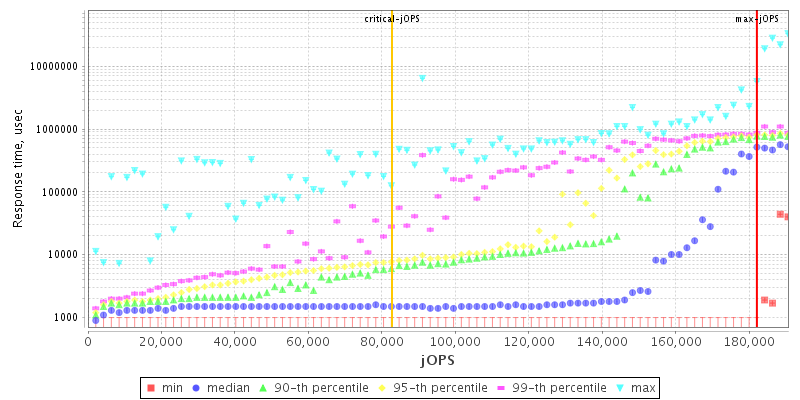

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationCompute Module
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips4
Total Cores96
Total Threads192
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSynergy 680 Gen9
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableJan-2017
ModelSynergy 680 Gen9
Form FactorFull-height double-wide Compute Module
CPU NameIntel Xeon E7-8890 v4
CPU Characteristics24 Core, 2.20 GHz, 60 MB L3 Cache (Turbo Boost Technology up to 3.4 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System96
Cores Per Chip24
Threads Per System192
Threads Per Core2
VersionI40 07/20/2016
CPU Frequency (MHz)2200
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache60 MB I+D on chip per chip
Other CacheNone
Disk1 x 400 GB SSD SAS
File SystemXFS
Memory Amount (GB)512
# and size of DIMM(s)32 x 16 GB
Memory Details16 GB 2Rx4 PC4-2400T-R, running at 1600MHz
# and type of Network Interface Cards (NICs)Synergy 3820C 10/20Gb CNA
Power Supply Quantity and Rating (W)6 x 2650
Other HardwareNone
Cabinet/Housing/EnclosureSynergy 12000 Frame
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP1
VendorSUSE
Vendor URLhttps://www.suse.com/
Version3.12.49-11-default
AvailableDec-2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u102
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_102
AvailableJul-2016
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Hyper Threading=Enabled
  • QPI Snoop Configuration=Home Snoop
  • Power Profile=Maximum Performance
  • Thermal Configuration=Maximum Cooling
  • Collaborative Power Control=Disabled
  • Processor Power and Utilization Monitoring=Disabled
  • Memory Patrol Scrub=Disabled
  • Memory PreFailure Notification=Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms500g -Xmx500g -Xmn470g -XX:+AggressiveOpts -XX:+UseLargePages -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=15 -XX:AllocatePrefetchInstr=2 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:+UseNUMA -XX:+AlwaysPreTouch
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 179985 182102 184220 186337 188455
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 60252 77532 89585 94227 98462 82761
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2117 - / 2117 - / 2117 - / 2117 - / 2117 - / 2117
1000us 158810 / 160928 2117 / 4235 - / 2117 - / 2117 - / 2117 - / 2117
5000us 175750 / 177867 152458 / 154575 76229 / 74111 52937 / 55054 35997 / 38114 - / 2117
10000us 175750 / 177867 156693 / 158810 110108 / 112226 99521 / 101639 69877 / 48702 16940 / 2117
25000us 175750 / 177867 165163 / 167280 143988 / 146105 127048 / 129166 93169 / 67759 23292 / 6352
50000us 177867 / 179985 169398 / 171515 143988 / 146105 137636 / 129166 97404 / 71994 40232 / 6352
75000us 179985 / 182102 169398 / 171515 143988 / 146105 137636 / 129166 97404 / 91051 52937 / 6352
100000us 179985 / 182102 169398 / 171515 152458 / 146105 137636 / 139753 105873 / 91051 57172 / 6352
200000us 179985 / 182102 171515 / 173633 152458 / 154575 143988 / 141870 120696 / 91051 82581 / 12705
500000us 182102 / - 179985 / 182102 169398 / 167280 160928 / 163045 150340 / 141870 120696 / 91051
1000000us 182102 / - 182102 / - 182102 / - 182102 / - 182102 / - 156693 / 91051

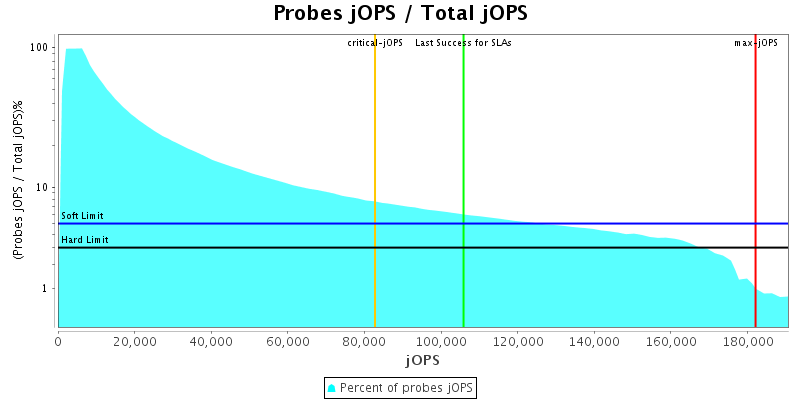

Probes jOPS / Total jOPS

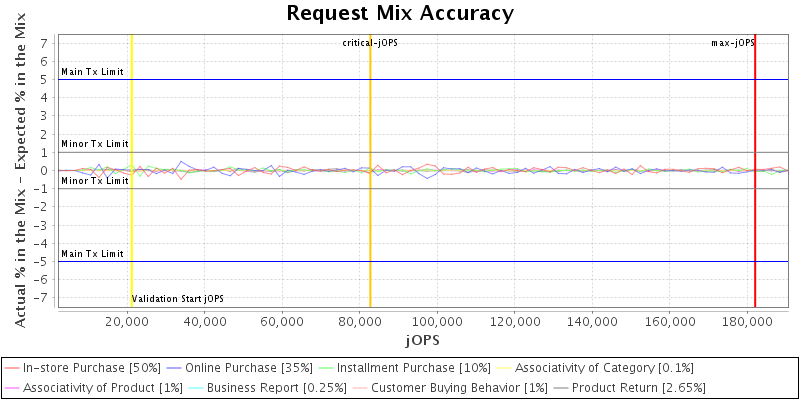

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 300
specjbb.comm.connect.worker.pool.max 256 300
specjbb.forkjoin.workers 192 {Tier1=180, Tier2=90, Tier3=38}
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 211747 IR
High-bound (settled) is 192957 IR
