Fujitsu SPARC M12-2S 54434 SPECjbb2015-MultiJVM max-jOPS
34771 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Fujitsu Test Sponsor: Fujitsu Test location: Kawasaki, Japan Test date: Feb 18, 2017
SPEC license #: 19 Hardware Availability: Apr-2017 Software Availability: May-2017 Publication: Apr 04, 2017
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorFujitsu
Vendor URLhttp://www.fujitsu.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores12
Total Threads96
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameFujitsu SPARC M12-2S
VendorFujitsu
Vendor URLhttp://www.fujitsu.com/
AvailableApr-2017
ModelFujitsu SPARC M12-2S
Form Factor1 x 4RU rackmount server
CPU NameSPARC64 XII
CPU Characteristics12Core, 4.25GHz, 32MB L3 Cache.
High Speed Mode enabled,up to 4.35GHz.
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System12
Cores Per Chip12
Threads Per System96
Threads Per Core8
VersionNone
CPU Frequency (MHz)4250
Primary Cache64KB I + 64KB D on chip per core
Secondary Cache512KB I+D on chip per core
Tertiary Cache32MB I+D on chip per chip
Other CacheNone
Disk1 x 600GB 10K RPM SAS disk drive
File SystemZFS
Memory Amount (GB)512
# and size of DIMM(s)16 x 32GB
Memory Details32GB 2Rx4 PC4-2400T-R, ECC; All slots populated
# and type of Network Interface Cards (NICs)4 x 10Gbit onboard
Power Supply Quantity and Rating (W)4 x 1800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameOracle Solaris 11.3
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
VersionOracle Solaris 11.3 a next SRU
AvailableMay-2017
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u121
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM, version 1.8.0_121
AvailableJan-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning Set High Speed Mode via XSCF command "sethsmode -s on".
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(1), jvm_TxInjector_1(1)
OS Image Description os_1
Tuning /etc/system parameters
autoup=86400
doiflush=0
dopageflush=0
zfs:zfs_arc_max=1073741824
Notes All java processes were run using the FX scheduling class.
The "Logical Domains Manager" service was turned off using the command "svcadm disable ldmd".
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx2000m -Xms2000m -Xmn1200m -XX:LargePageSizeInBytes=4m
-XX:MaxInlineSize=200 -XX:InlineSmallCode=2000 -verbose:gc
-XX:ParallelGCThreads=4 -Dspecjbb.forkjoin.workers.Tier1=120 -Dspecjbb.forkjoin.workers.Tier2=60
-Dspecjbb.forkjoin.workers.Tier3=20
Tuning None
Notes set environment variable LD_PRELOAD_64 to /lib/sparcv9/libumem.so.
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -verbose:gc -XX:+PrintGCDetails -XX:+AlwaysPreTouch
-XX:LargePageSizeInBytes=2g -XX:AllocatePrefetchLines=8 -XX:InlineSmallCode=2000
-XX:MaxInlineSize=300 -Xms400g -Xmx400g -Xmn390g
-XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
-XX:ParallelGCThreads=96 -XX:SurvivorRatio=200 -XX:MaxTenuringThreshold=1
-Djava.nio.channels.spi.SelectorProvider=sun.nio.ch.PollSelectorProvider -XX:+AggressiveOpts -XX:-UsePerfData
Tuning None
Notes set environment variable LD_PRELOAD_64 to /lib/sparcv9/libumem.so.
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx2400m -Xms2400m -Xmn1600m -verbose:gc
-XX:+PrintGCDetails -XX:ParallelGCThreads=2 -XX:+UseConcMarkSweepGC
-XX:ConcGCThreads=1 -XX:SurvivorRatio=8 -XX:TargetSurvivorRatio=90
-XX:MaxTenuringThreshold=8
Tuning None
Notes set environment variable LD_PRELOAD_64 to /lib/sparcv9/libumem.so.
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 53842 54434 55025 55617 56209
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 22779 36360 38754 39473 40115 34771
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 592 - / 592 - / 592 - / 592 - / 592 - / 592
1000us 1183 / 1775 592 / 1183 - / 592 - / 592 - / 592 - / 592
5000us 49700 / 50292 42009 / 42600 18342 / 18933 14792 / 15383 10058 / 10650 592 / 1183
10000us 50292 / 50884 46150 / 46742 32542 / 33134 29583 / 30175 22483 / 23075 592 / 1183
25000us 50884 / 51475 48517 / 49109 43784 / 44375 42600 / 43192 39050 / 33134 16567 / 2958
50000us 51475 / 52067 49109 / 49700 46150 / 46742 43784 / 44375 39050 / 38459 19525 / 2958
75000us 52067 / 52659 49700 / 50292 46742 / 47334 45559 / 46150 42009 / 38459 19525 / 2958
100000us 52067 / 52659 49700 / 50292 47334 / 47925 46150 / 46742 42009 / 39642 19525 / 2958
200000us 52659 / 53250 50292 / 50884 48517 / 49109 48517 / 49109 44967 / 42600 29583 / 17158
500000us 53842 / 54434 52067 / 52659 50292 / 50884 50292 / 50884 48517 / 49109 43784 / 40234
1000000us 54434 / - 54434 / - 53842 / 52659 52067 / 52659 52067 / 52659 49109 / 47925
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

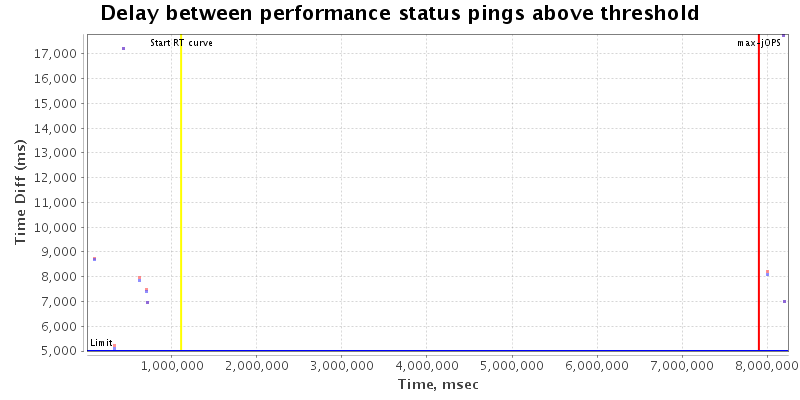

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 96 {Tier1=120, Tier2=60, Tier3=20}
specjbb.group.count 1 1
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 59167 IR
High-bound (settled) is 55947 IR
