Cisco Systems Cisco UCS C240 M5 179534 SPECjbb2015-MultiJVM max-jOPS
58094 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: June 19, 2017
SPEC license #: 9019 Hardware Availability: August-2017 Software Availability: April-2017 Publication: Tue Jul 11 13:21:27 EDT 2017
Benchmark Results Summary

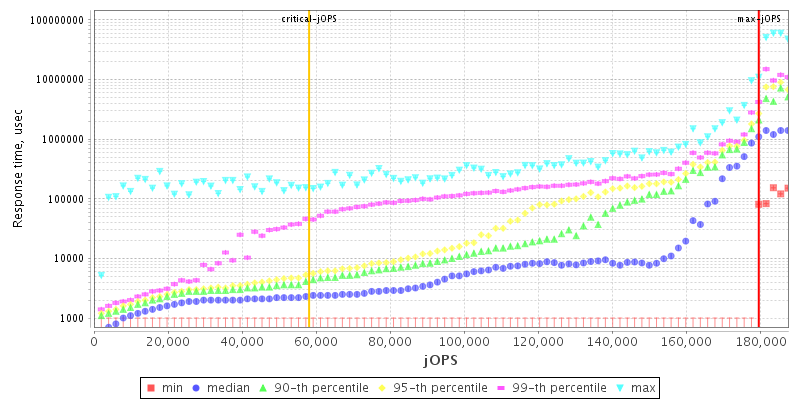

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttp://www.cisco.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)384
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameCisco UCS C240 M5
VendorCisco Systems
Vendor URLhttp://www.cisco.com
AvailableJuly-2017
ModelCisco UCS C240 M5
Form Factor2U Rack
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28 Core, 2.50 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D per core
Secondary Cache1024 KB I+D per core
Tertiary Cache38.5 MB I+D per chip
Other CacheNone
Disk1x 400GB SSD SAS
File Systemext4
Memory Amount (GB)384
# and size of DIMM(s)24 x 16GB
Memory Details384 GB(24 X 16GB 2Rx4 PC4-2666V)
# and type of Network Interface Cards (NICs)1x 1 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP2
VendorSUSE
Vendor URLhttp://www.suse.com/
VersionSUSE Linux Enterprise Server 12 SP2 (x86_64)
AvailableNovember-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u131
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_131
AvailableApril-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Memory Patrol Scrub disabled
  • CPU Performance set to Enterprise
  • Hyperthreading Enabled
  • IMC Interleave to one-way
  • SNC Enabled
  • Memory RAS configuration set to Maximum performance
  • Power Technology set to performance
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • tuned-adm profile set to throughput Performance
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseParallelOldGC -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -Xms29g -Xmx29g -Xmn27g -XX:ParallelGCThreads=28
Tuning numactl used to affinitize each Backend JVM to a single memory node
  • numactl --cpunodebind=0 --membind=0
  • numactl --cpunodebind=1 --membind=1
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -showversion -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 177561 179534 181507 183480 185453
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 36498 44390 60173 73983 91739 58094
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 1973 / 3946 - / 1973 - / 1973 - / 1973 - / 1973 - / 1973
1000us 65106 / 67079 7892 / 9864 - / 1973 - / 1973 - / 1973 - / 1973
5000us 167696 / 169669 94699 / 96672 65106 / 67079 55241 / 57214 27621 / 29593 - / 1973
10000us 167696 / 169669 153886 / 155859 96672 / 98645 82862 / 84835 37485 / 35512 1973 / 3946
25000us 169669 / 171642 159805 / 161778 130211 / 126266 106537 / 108509 45377 / 43404 1973 / 3946
50000us 169669 / 171642 163751 / 165724 136130 / 138103 114428 / 116401 59187 / 61160 1973 / 3946
75000us 169669 / 171642 163751 / 165724 140076 / 142049 118374 / 120347 72997 / 74970 1973 / 3946
100000us 171642 / 173615 167696 / 169669 147967 / 149940 130211 / 132184 90753 / 92726 1973 / 3946
200000us 175588 / 177561 167696 / 169669 157832 / 159805 155859 / 157832 138103 / 140076 88780 / 11837
500000us 177561 / 179534 173615 / 175588 167696 / 169669 167696 / 169669 163751 / 161778 147967 / 140076
1000000us 179534 / - 177561 / 179534 175588 / 177561 175588 / 177561 173615 / 175588 163751 / 161778
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

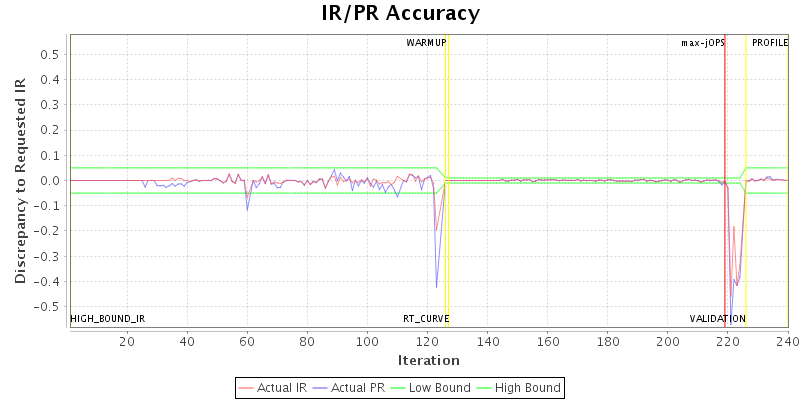

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 88
specjbb.comm.connect.worker.pool.min 1 44
specjbb.forkjoin.workers 112 {Tier1=180, Tier2=56, Tier3=28}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 112 27
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 197290 IR
High-bound (settled) is 186557 IR
