SPECjbb2015
Copyright © 2015-2017 Standard Performance Evaluation Corporation
Hewlett Packard Enterprise ProLiant DL380 Gen10 81875 SPECjbb2015-Distributed max-jOPS
28948 SPECjbb2015-Distributed critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: July 05, 2017
SPEC license #: 3 Hardware Availability: Jul-2017 Software Availability: Apr-2017 Publication: Fri Aug 4 11:08:36 EDT 2017
Benchmark Results Summary

SPECjbb2015-Distributed: Distributed JVMs/Single or Multi Hosts
(# of groups: 2)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips1
Total Cores28
Total Threads56
Total Memory Amount (GB)192
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameProLiant DL380 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableJul-2017
ModelProLiant DL380 Gen10
Form Factor2U Rack
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28 Core, 2.50 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.8 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System28
Cores Per Chip28
Threads Per System56
Threads Per Core2
VersionU30 06/08/2017
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1 x 480 GB SSD SAS
File SystemXFS
Memory Amount (GB)192
# and size of DIMM(s)12 x 16 GB
Memory Details16 GB 2Rx8 PC4-2666V-R
# and type of Network Interface Cards (NICs)HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP2
VendorSUSE
Vendor URLhttps://www.suse.com/
Version4.4.21-69-default
AvailableNov-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u131
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_131
AvailableApr-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Driver Description
Hardware hw_2
NameProLiant DL560 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableJul-2017
ModelProLiant DL560 Gen10
Form Factor2U Rack
CPU NameIntel Xeon Gold 6146
CPU Characteristics12 Core, 3.20 GHz, 24.75 MB L3 Cache (Turbo Boost Technology up to 4.2 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System48
Cores Per Chip12
Threads Per System96
Threads Per Core2
VersionU34 06/08/2017
CPU Frequency (MHz)3200
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache24.75 MB I+D on chip per chip
Other CacheNone
Disk1 x 800 GB SSD SAS
File SystemXFS
Memory Amount (GB)768
# and size of DIMM(s)48 x 16 GB
Memory Details16 GB 2Rx8 PC4-2666V-R
# and type of Network Interface Cards (NICs)HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)2 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameRed Hat Enterprise Linux Server 7.3
VendorRedHat
Vendor URLhttp://redhat.com/
Version3.10.0-514
AvailableNov-2016
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 8u131
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_131
AvailableApr-2017
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Workload Profile=High Performance Compute
  • Thermal Configuration=Maximum Cooling
  • Sub-NUMA Clustering=Enabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(2)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • ulimit -l 800000000
  • ulimit -m 800000000
  • ulimit -v 800000000
  • ulimit -n 819200
  • ulimit -s 819200
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • systemctl stop systemd-update-utmp-runlevel.service
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-showversion -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms60g -Xmx60g -Xmn56g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=28 -XX:MaxTenuringThreshold=15 -Xnoclassgc -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -XX:+UseRTMLocking -XX:InlineSmallCode=10k -XX:+UseRTMDeopt
Tuning None
Notes

Used numactl to affinitize each Backend JVM to physical cores in a NUMA node.

  • numactl --physcpubind=0-13,28-41 --membind=0
  • numactl --physcpubind=14-27,42-55 --membind=1
Driver config_2 Configuration
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning
  • Workload Profile=High Performance Compute
  • Thermal Configuration=Maximum Cooling
  • Sub-NUMA Clustering=Enabled
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(2)
OS Image Description os_2
Tuning
  • SELINUX=disabled
  • tuned-adm profile=throughput-performance
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • systemctl stop systemd-update-utmp-runlevel.service
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 80889 81875 82862 83848 84835
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 19236 24168 29100 35019 42910 28948
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 986 - / 986 - / 986 - / 986 - / 986 - / 986
1000us 6905 / 7892 986 / 1973 - / 986 - / 986 - / 986 - / 986
5000us 80889 / 81875 67079 / 68065 33539 / 34526 25648 / 26634 15783 / 16770 - / 986
10000us 80889 / 81875 75957 / 76943 56228 / 57214 47350 / 48336 18743 / 19729 986 / 1973
25000us 81875 / - 79902 / 80889 67079 / 68065 57214 / 58201 23675 / 24661 2959 / 1973
50000us 81875 / - 79902 / 80889 72011 / 72997 61160 / 62146 28607 / 29593 2959 / 1973
75000us 81875 / - 80889 / 81875 72997 / 73984 64119 / 65106 34526 / 35512 2959 / 1973
100000us 81875 / - 80889 / 81875 74970 / 75957 67079 / 68065 43404 / 42417 2959 / 1973
200000us 81875 / - 80889 / 81875 79902 / 78916 77930 / 76943 71024 / 68065 40444 / 28607
500000us 81875 / - 81875 / - 79902 / 80889 79902 / 80889 79902 / 78916 75957 / 68065
1000000us 81875 / - 81875 / - 81875 / - 81875 / - 79902 / 80889 79902 / 80889

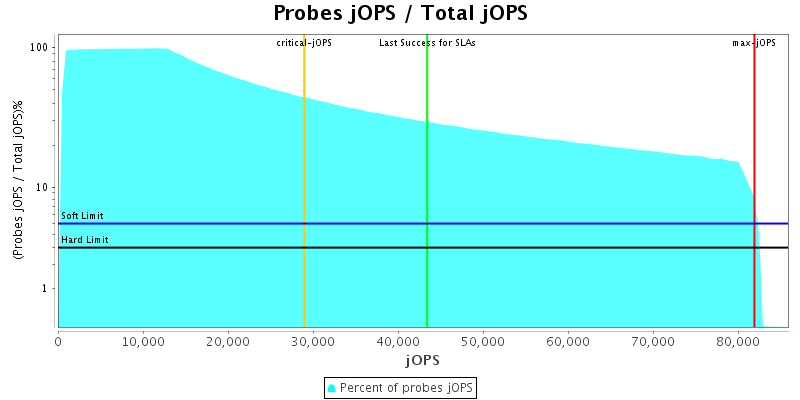

Number of probes
Probes jOPS / Total jOPS

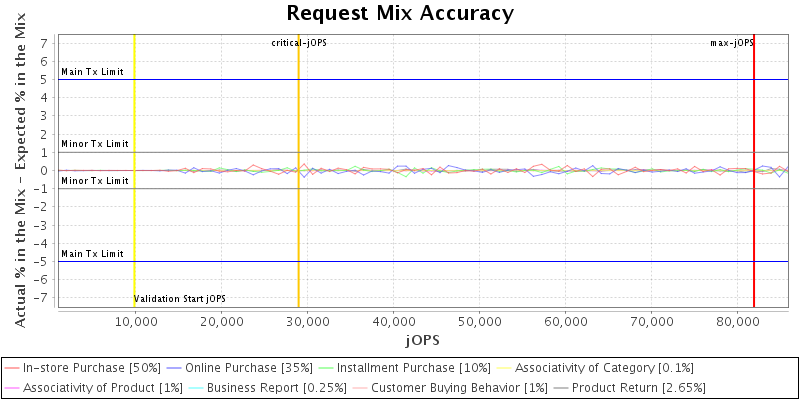

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

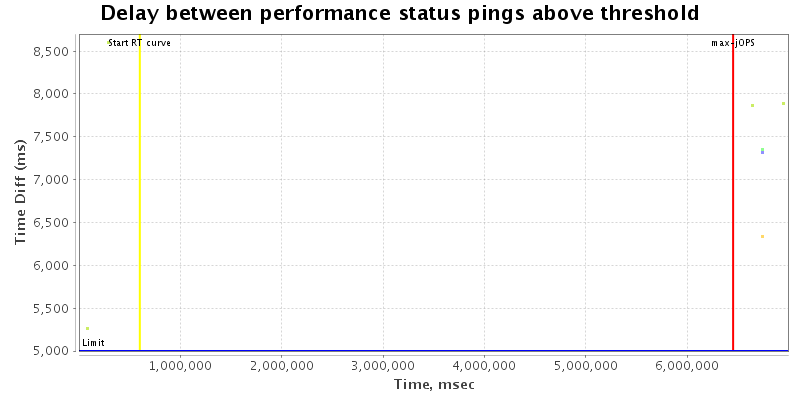

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group2.Backend.beJVM
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 128 192 192
specjbb.controller.host localhost 10.10.1.122
specjbb.forkjoin.workers 96 {Tier1=200, Tier2=75, Tier3=32}
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 98645 IR
High-bound (settled) is 82237 IR
